Specifications
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
| Brand | AMEC Leeson Various |
|---|---|
| Part Number | AK5110 AK51X5/8 |
| Bore | 5/8" |
| Sheave Cross Section | AK |
| Outside Diameter | 4.95" |
| Pulley Diameter “A” | 4.70" |
| Pulley Diameter “3L” | 4.36" |

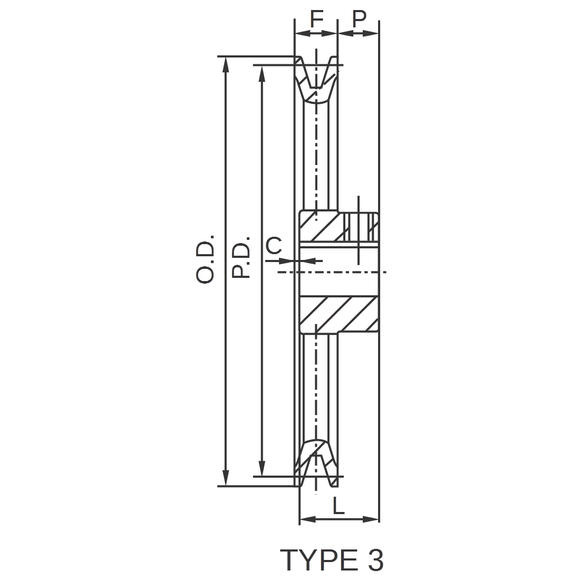

| Type | 3 |
| Pulley Width “F” | 3/4" |
| Dimension “L” | 1-5/32" |
| Dimension “P” | 15/32" |
| Recess Depth “C” | 1/16" |
| Approximate Weight | 1.7 lbs |
| Keyseat (WxD) | 3/16 x 3/32" |
| Set Screw(s) | Yes, 2 |
| Country of Origin | Various |
