AK3412 3.45" X 3/4" AK Single Groove V-Pulley-1
AK3412 3.45" X 3/4" AK Single Groove V-Pulley-2
AK3412 3.45" X 3/4" AK Single Groove V-Pulley-3

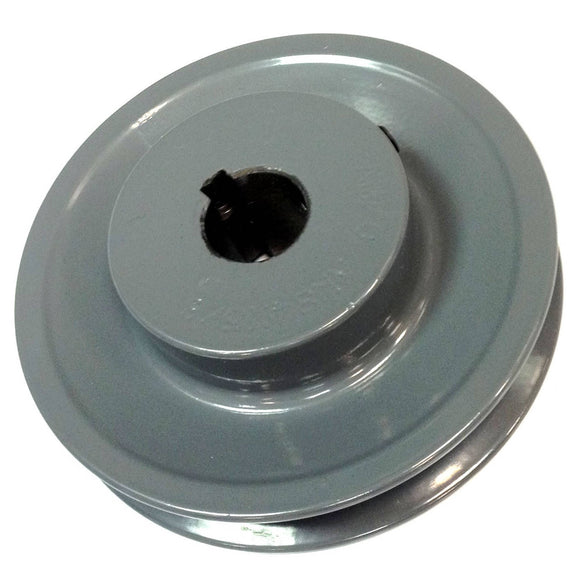

AK3412 3.45" X 3/4" AK Single Groove V-Pulley

$12.16 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: AK3412 Barcode: 624832030365

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Leeson
AMEC
Various
Part Number AK3412
AK34X3/4
Bore 3/4"
Sheave Cross Section AK
Outside Diameter 3.45"
Pulley Diameter “A” 3.20"
Pulley Diameter “3L” 2.86"

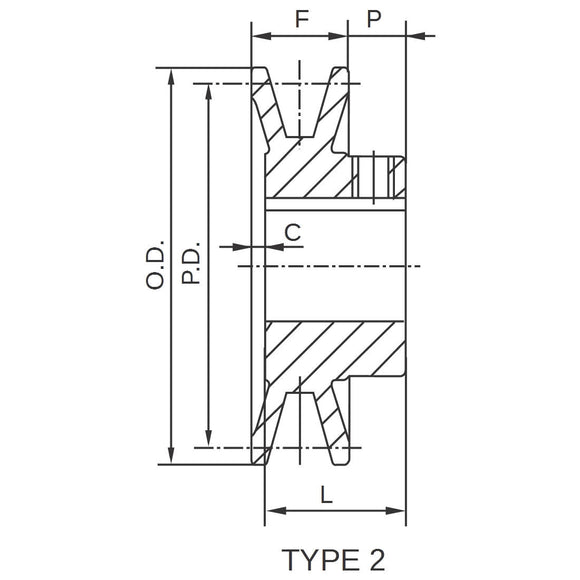

Type 2
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.9 lbs

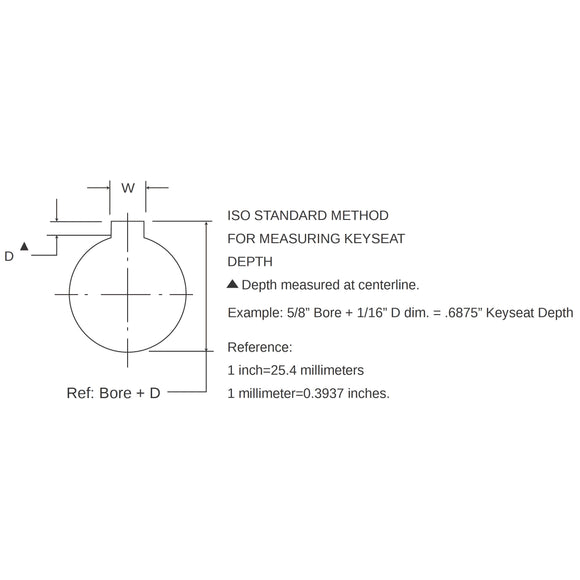

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
