AK3010 3" X 5/8" AK Single Groove V-Pulley-1
AK3010 3" X 5/8" AK Single Groove V-Pulley-2
AK3010 3" X 5/8" AK Single Groove V-Pulley-3

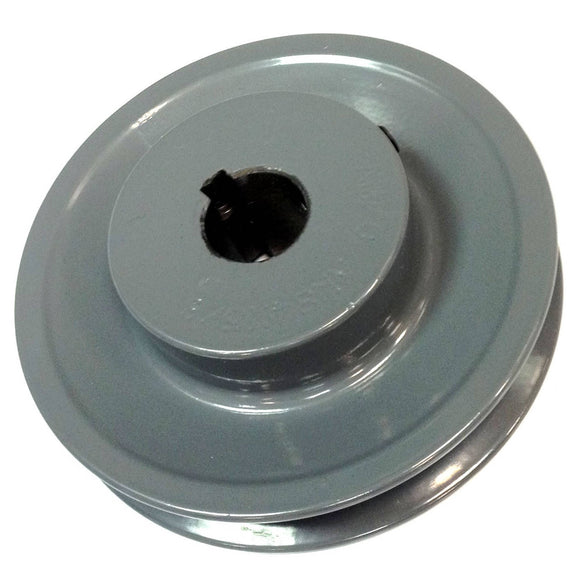

AK3010 3" X 5/8" AK Single Groove V-Pulley

$10.80 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: AK3010 Barcode: 624832030273

30 Day
Return Policy

Ships Fast
in 24 hours

4

In stock!

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Leeson
Part Number AK3010
AK30X5/8
Bore 5/8"
Sheave Cross Section AK
Outside Diameter 3.05"
Pulley Diameter “A” 2.80"
Pulley Diameter “3L” 2.46"

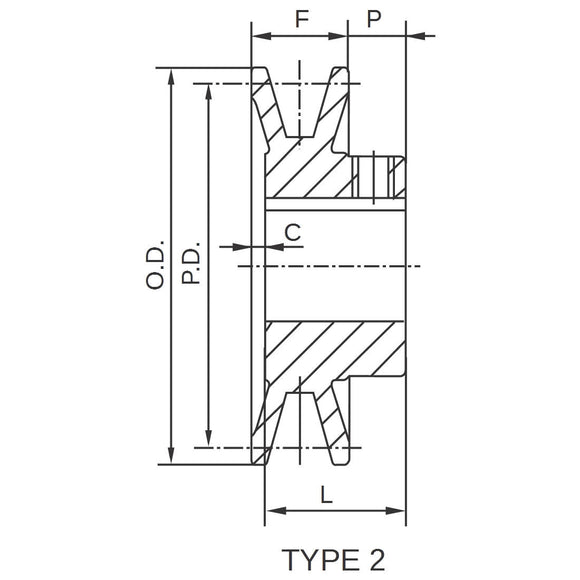

Type 2
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.7 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
UPC 624832030273
