AK1710 1.75" X 5/8" AK Single Groove V-Pulley

$5.14 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: AK1710 Barcode: 624832030013

30 Day
Return Policy

Ships Fast
in 24 hours

4

In stock!

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Leeson
Part Number AK1710
AK17X5/8
Bore 5/8"
Sheave Cross Section AK
Outside Diameter 1.75"
Pulley Diameter “A” 1.50"
Pulley Diameter “3L” 1.16"

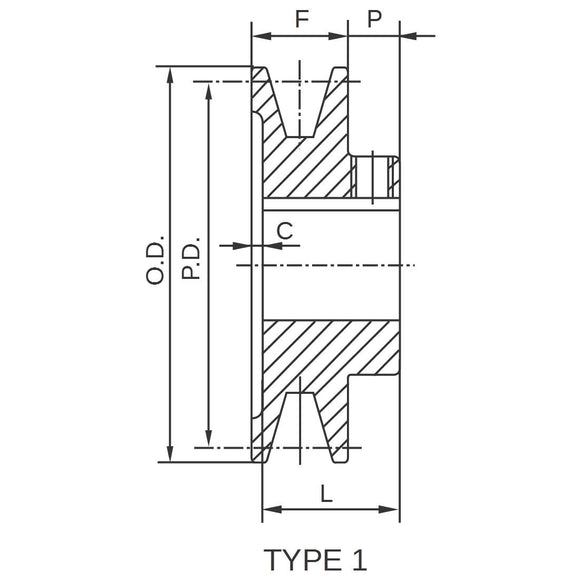

Type 1
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.2 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
UPC 624832030013
Country of Origin China
