2BK36H 3.75" "H" Style BK Double Groove V-Pulley-1
2BK36H 3.75" "H" Style BK Double Groove V-Pulley-2

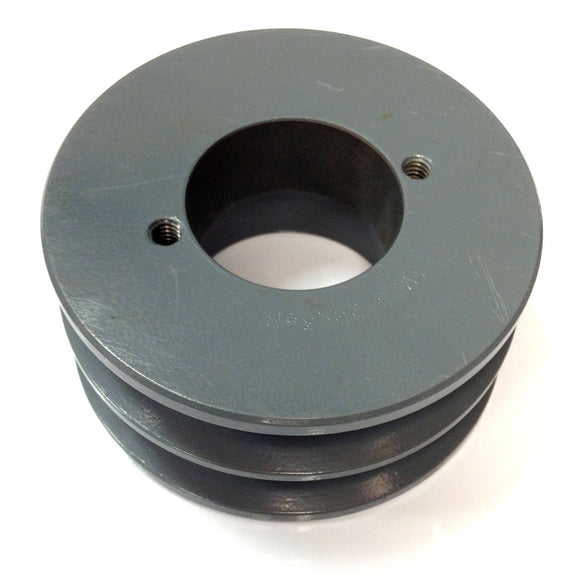

2BK36H 3.75" "H" Style BK Double Groove V-Pulley

$25.92 USD

Shipping calculated at checkout

AMEC Industry, Inc SKU: 2BK36H

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
AMEC
Part Number 2BK36H

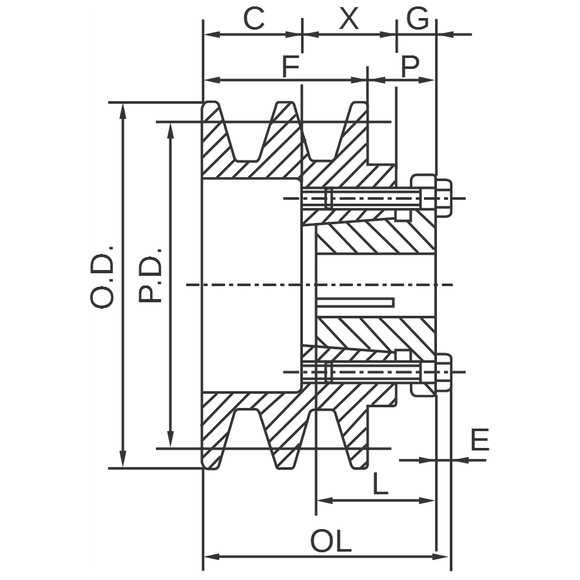

Outside Diameter 3.75"
Pulley Diameter "A" 3.00"
Pulley Diameter "3L" 3.40"
Type 1D
Dimension "OL" 2-3/8"
Dimension "F" 1-3/4"
Dimension "L" 1-1/4"
Dimension "P" 7/16"
Dimension "C" 7/8"
Dimension "X" 7/8"
Dimension "G" 7/16"
Dimension "E" 3/16"
Approximate Weight 2.0 lbs
UPC
Country of Origin
