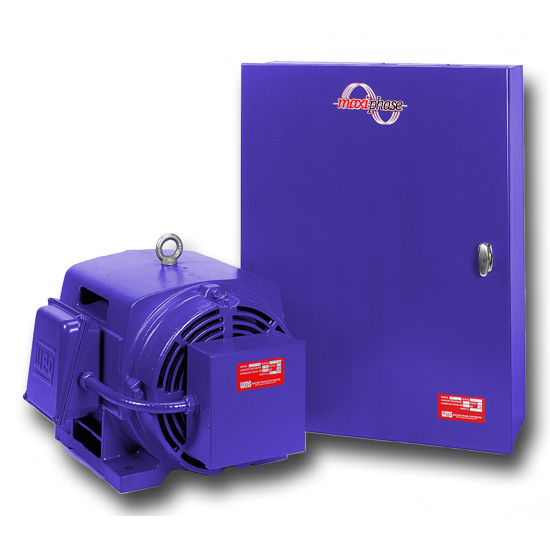

HVC 40-100 Maxiphase Hi-Volt Rotary Phase Converter

$8,000.00 USD

Shipping calculated at checkout

Witmer Motor Service SKU: HVC 40-100

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Specifications

Model HVC 40-100
Largest Single Load 40 HP
Maximum Combined Load 100 HP
Voltage 460 Volts
Frequency 60Hz
No Load Amperage 16.0 Amps
"a" Dimension 25 Inches
"b" Dimension 18 Inches
"c" Dimension 28 Inches
"d" Dimension 36 Inches
"e" Dimension 30 Inches
"f" Dimension 12 Inches
Motor Enclosure ODP
Open Drip Proof
Motor Frame Size
Input Circuit Breaker Rating 150 Amp
Input Wire Size #2/0 Minimum
Approximate Weight 870 lbs
Notes Rotary unit and capacitor enclosure are seperate on this unit and must be field connected with user supplied wire and conduit.

Product Information Links:

WMS Rotary Phase Converters are an economical alternative to commercial three phase power!

  • Easy installation, reliabile performance and low maintenance make rotary units an attractive solution for three phase power needs.
  • WMS Phase Converters are available from electric motor shops, machinery dealers and electrical supply stores across the nation.
  • WMS has developed a proven product through years of experience in the manufacturing and installation of phase converters.
  • Quick start-up using electrolytic start capacitors and a positive mechanical centrifugal switch!
  • 1 Year Warranty
WMS Maxiphase
