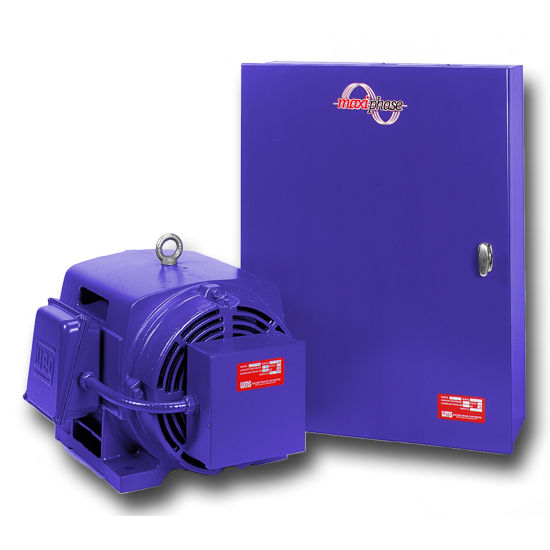

HVC 30-80 Maxiphase Hi-Volt Rotary Phase Converter

$5,995.00

Shipping calculated at checkout

Witmer Motor Service SKU: HVC 30-80

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Specifications

Model HVC 30-80
Largest Single Load 30 HP
Maximum Combined Load 80 HP
Voltage 460 Volts
Frequency 60Hz
No Load Amperage 14.0 Amps
"a" Dimension 21 Inches
"b" Dimension 16 Inches
"c" Dimension 27 Inches
"d" Dimension 32 Inches
"e" Dimension 24 Inches
"f" Dimension 10 Inches
Motor Enclosure ODP
Open Drip Proof
Motor Frame Size
Input Circuit Breaker Rating 150 Amp
Input Wire Size #1/0 Minimum
Approximate Weight 770 lbs
Notes Rotary unit and capacitor enclosure are seperate on this unit and must be field connected with user supplied wire and conduit.

Product Information Links:

WMS Rotary Phase Converters are an economical alternative to commercial three phase power!

  • Easy installation, reliabile performance and low maintenance make rotary units an attractive solution for three phase power needs.
  • WMS Phase Converters are available from electric motor shops, machinery dealers and electrical supply stores across the nation.
  • WMS has developed a proven product through years of experience in the manufacturing and installation of phase converters.
  • Quick start-up using electrolytic start capacitors and a positive mechanical centrifugal switch!
  • 1 Year Warranty
WMS Maxiphase
