Specifications

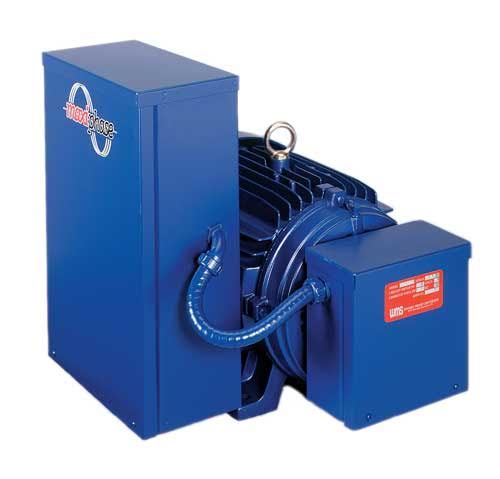

| Model | HVC 20-603R |
|---|---|
| Largest Single Load | 20 HP |
| Maximum Combined Load | 60 HP |
| Voltage | 460 Volts |
| Frequency | 60Hz |
| No Load Amperage | 9.0 Amps |
| "a" Dimension | 22 Inches |
| "b" Dimension | 21 Inches |
| "c" Dimension | 25 Inches |
| Motor Enclosure | TEFC |
| Motor Frame Size | 286T |
| Input Circuit Breaker Rating | 100 Amp |
| Input Wire Size | #1 Minimum |
| Approximate Weight | 435 lbs |
| Notes |
Product Information Links:
- Maxiphase Phase Converter Brochure, 460 Volt, TEFC
- Maxiphase Poster (12.25 x 19)
- Maxiphase Poor Performance Troubleshooting
- Maxiphase HVC Installation Instructions
- Maxiphase Selection Guide
