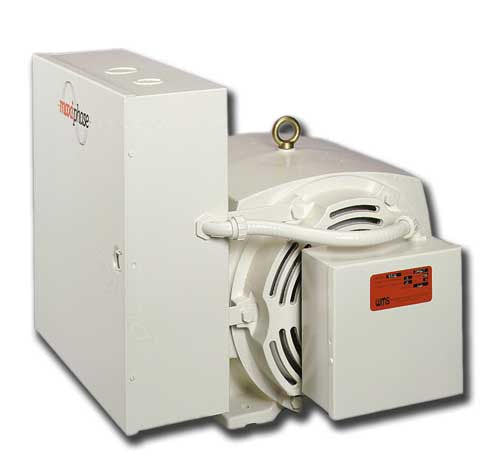

CNC 25 Maxiphase Rotary Phase Converter

$8,995.00 USD

Shipping calculated at checkout

Maxiphase Converters SKU: CNC 25

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Specifications

Model CNC 25
Largest Single Load 25 HP
Maximum Combined Load 25 HP
Voltage 230 Volts
Frequency 60Hz
No Load Amperage 35.0 Amps
"a" Dimension 25 Inches
"b" Dimension 21 Inches
"c" Dimension 30 Inches
"d" Dimension 36 Inches
"e" Dimension 30 Inches
"f" Dimension 12 Inches
Motor Enclosure ODP
Open Drip Proof
Motor Frame Size 365TS
Input Circuit Breaker Rating 150 Amp
Input Wire Size #1 Minimum
Approximate Weight 1100 lbs
Notes Rotary unit and capacitor enclosure are seperate on this unit and must be field connected with user supplied wire and conduit.

Product Information Links:

WMS Rotary Phase Converters are an economical alternative to commercial three phase power!

  • Easy installation, reliabile performance and low maintenance make rotary units an attractive solution for three phase power needs.
  • WMS Phase Converters are available from electric motor shops, machinery dealers and electrical supply stores across the nation.
  • WMS has developed a proven product through years of experience in the manufacturing and installation of phase converters.
  • Quick start-up using electrolytic start capacitors and a positive mechanical centrifugal switch!
  • 1 Year Warranty
