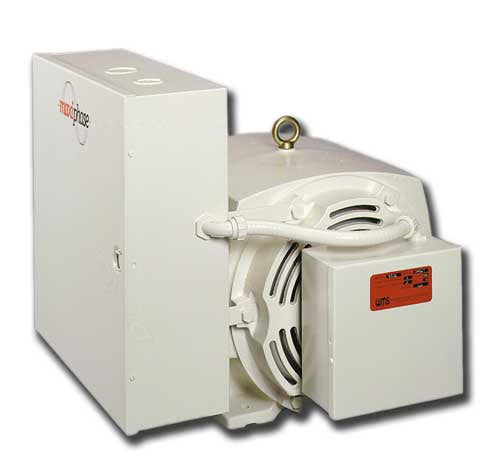

CNC 10 Maxiphase Rotary Phase Converter

$3,750.00

Shipping calculated at checkout

Maxiphase Converters SKU: CNC 10

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Specifications

Model CNC 10
Largest Single Load 10 HP
Maximum Combined Load 10 HP
Voltage 230 Volts
Frequency 60Hz
No Load Amperage 18.0 Amps
"a" Dimension 22 Inches
"b" Dimension 21 Inches
"c" Dimension 25 Inches
Motor Enclosure ODP
Open Drip Proof
Motor Frame Size 286TS
Input Circuit Breaker Rating 100 Amp
Input Wire Size #4 Minimum
Approximate Weight 435 lbs
Notes

Product Information Links:

WMS Rotary Phase Converters are an economical alternative to commercial three phase power!

  • Easy installation, reliabile performance and low maintenance make rotary units an attractive solution for three phase power needs.
  • WMS Phase Converters are available from electric motor shops, machinery dealers and electrical supply stores across the nation.
  • WMS has developed a proven product through years of experience in the manufacturing and installation of phase converters.
  • Quick start-up using electrolytic start capacitors and a positive mechanical centrifugal switch!
  • 1 Year Warranty
WMS Maxiphase
