| Dimensional | |||
| Width (in) | 1.66 | ||
| Length (in) | 2.56 | ||
| Bolt Hole Size (in) | 0.38 | ||
| Thickness | 0.25 | ||
| D - in | 1.50 | ||
| Pad Width (in) | 1.66 | ||
| N (in) | 0.5 | ||
| General | |||
| Number of Conductors | 2 | ||
| Number of Holes | 1 | ||

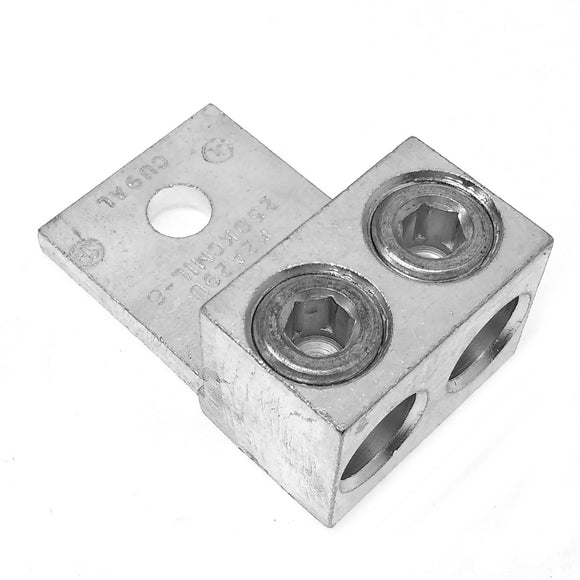

| Product Description | Aluminum Universal Terminal, 2 Conductor, 1 Hole, 6 AWG (Str)-250 kcmil, 3/8" Stud, 2 Screws, Al/Cu Rated, Tin Plated | ||
| Conductor(s) | |||
| Aluminum Size (Range) | 6 STR- 250 kcmil | ||
| Copper Solid Size (Range) | N/A | ||
| Copper Stranded (Range) | 6 AWG-250 kcmil | ||
| Physical | |||
| Installation Torque | 275 | ||
| Type of Plating | Tin | ||
| Connector Type | Terminal | ||
| Bolt Hole Size | 3/8 | ||
| Plated (Yes or No) | N | ||
| Product Material | Aluminum | ||
| Approvals / Certifications | |||
| Rated for Direct Burial | N | ||
| UL Listed | Y | ||
| CSA Certified | Y | ||
| ROHS Compatible | Exempt | ||
| Industry Standards | UL468A-468B | ||
| Documentation | |||
