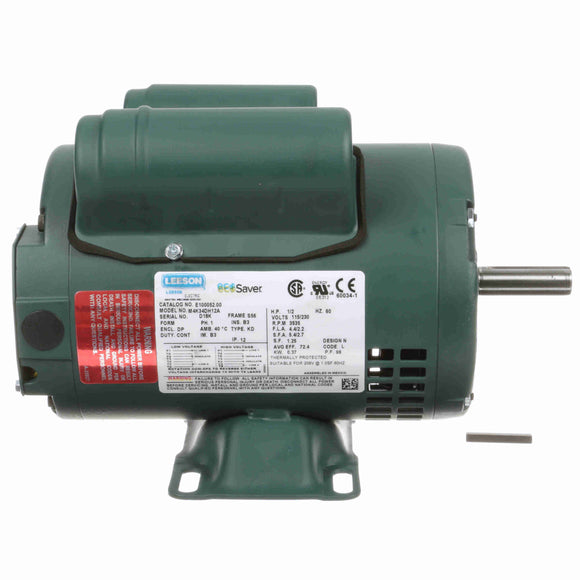

E100052.00 Leeson 1/2HP General Purpose ecoSaver Electric Motor, 3600RPM-1

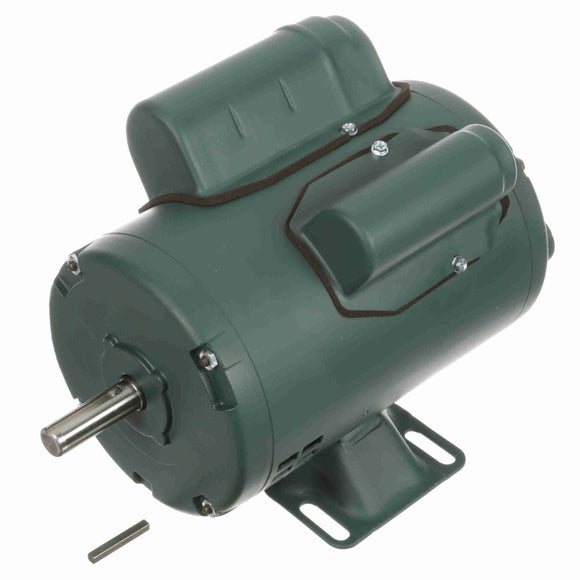

E100052.00 Leeson 1/2HP General Purpose ecoSaver Electric Motor, 3600RPM-2

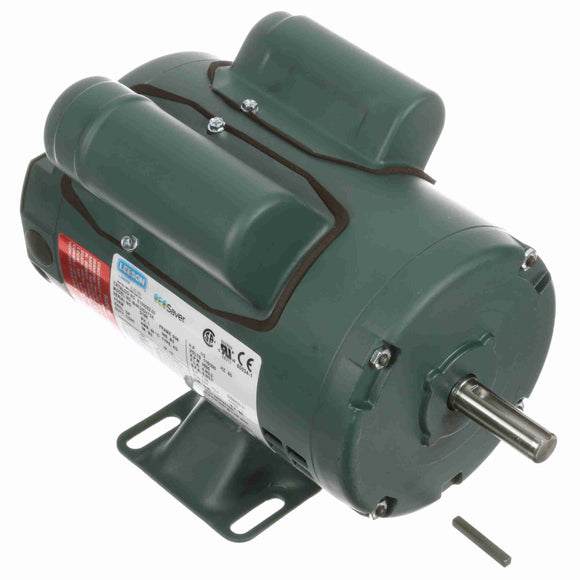

E100052.00 Leeson 1/2HP General Purpose ecoSaver Electric Motor, 3600RPM-3

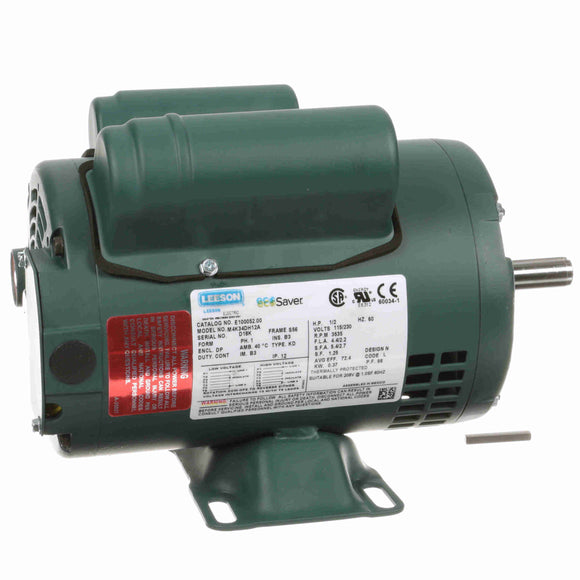

E100052.00 Leeson 1/2HP General Purpose ecoSaver Electric Motor, 3600RPM-4

E100052.00 Leeson 1/2HP General Purpose ecoSaver Electric Motor, 3600RPM

$119.97 USD $792.00 USD Save $672.03 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: E100052.00 Barcode: 691720990759

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Durable rolled steel construction
  • NEMA® design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

General Specifications

UPC: 691720990759 Weight: 19.00 LB
Packaged Length: 13.75 IN Packaged Width: 7.88 IN
Packaged Height: 8.75 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 4.4/2.2 A Speed: 3535 rpm
Service Factor: 1.25 Phase: 1
Efficiency: 72.4 % Power Factor: 98
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: L
Frame: S56 Enclosure: Drip Proof
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 12

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 10.99 in
Frame Length: 7.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 7.95 352.0 34.00 277.0 3,260 1.66 90.8 0.50
Pull-Up 20.70 916.0 32.80 269.0 0 0.00 0.0 0.50
Full Load 2.20 100.0 12.20 100.0 3,535 0.51 98.0 0.50
Locked-Rotor 21.16 936.0 33.23 272.0 0 0.00 0.0 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 135 % 150 %
Current (Amps) 0.55 0.94 1.37 1.81 2.20 2.60 2.70 3.00 3.33
Rated Output (KW) 0.11 0.21 0.31 0.41 0.51 0.58 0.63 0.67 0.75
Efficiency (%) 0.0 46.7 62.9 70.9 72.4 75.7 75.9 76.1 75.8
Power Factor (%) 85.4 96.1 97.8 98.2 98.0 97.4 97.5 97.3 97.3
Speed (RPM) 3,595 3,580 3,565 3,550 3,535 3,525 3,515 3,510 3,500
Temp. Rise @ FL 0.0 0.0 0.0 0.0 15.0 0.0 20.0 0.0 0.0
Torque (ft-lbs) 0.00 3.05 6.10 9.15 12.20 14.03 15.25 16.50 18.30
