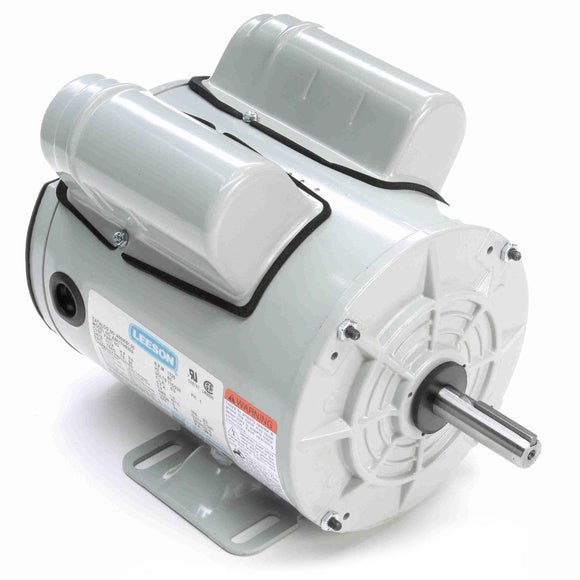

A009581.00 Leeson 3/4HP Agricultural Duty Electric Fan Motor, 1725RPM-1

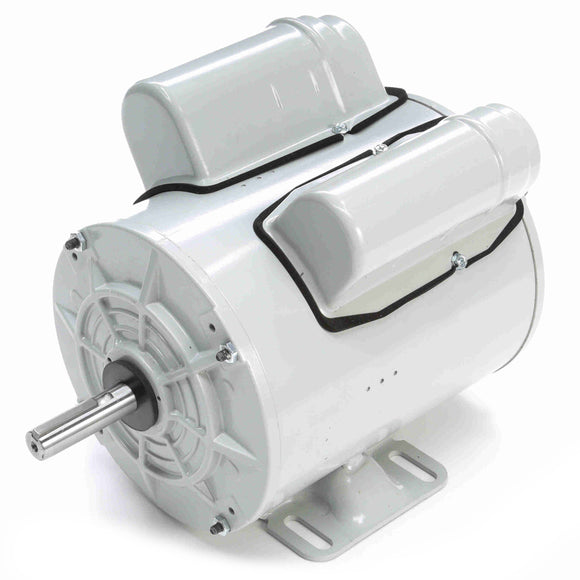

A009581.00 Leeson 3/4HP Agricultural Duty Electric Fan Motor, 1725RPM-2

A009581.00 Leeson 3/4HP Agricultural Duty Electric Fan Motor, 1725RPM

$465.31 USD $993.00 USD Save $527.69 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: A009581.00 Barcode: 691720103043

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Capacitor start / Capacitor run designs for high efficiency
  • Mount in airstream for proper cooling
  • Combination 56 / 140 frame stamped steel base

General Specifications

General Specifications
A6K17NB29A A009581.00
...75HP..1725RPM.56.TEAO.115/230V.1PH.60HZ.CONT AOM.40C.1.0SF.RIGID.A6K17NB29A............. Agricultural
No

Nameplate Specifications

Nameplate Specifications
0.75 HP 0.56 kW
60 Hz 115/230 V
6.0/3.0 A 1725 RPM
1 1
83 % Continuous
B N
E 56
Totally Enclosed Air Over Automatic Lock Rotor Only
40 °C 6203
6203
    		Recognized
    Y N
    43

    Technical Specifications

    Technical Specifications
    Capacitor Start Capacitor Run Across The Line
    4 Selective Counterclockwise
    Rigid Base Horizontal
    Ball Ball
    Rolled Steel NEMA 56
    10.94 in 7.06 in
    0.625 in 1.88 in
    F1 ONLY 691720103043
    30.00 LB

    Speed & Load Characteristics

    Speed Characteristics
    Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
    Locked-Rotor 15.20 507.0 52.00 142.0 0 3.03 87.0 0.75
    Pull-Up 15.20 507.0 52.00 142.0 0 3.03 87.0 0.75
    Break-Down 9.80 327.0 70.00 192.0 1,440 1.72 87.8 0.75
    Full Load 3.00 100.0 36.52 100.0 1,740 0.67 99.2 0.75
    Load Characteristics
    • % of Rated Load
    • Current (Amps)
    • Rated Output (KW)
    • Efficiency (%)
    • Power Factor (%)
    • Speed (RPM)
    • Temp. Rise @ FL
    • Torque (ft-lb)
    • 0 %
    • 0.45
    • 0.095
    • 0.0
    • 92.5
    • 1,795
    • 0.0
    • 0.00
    • 25 %
    • 0.99
    • 0.223
    • 64.8
    • 98.7
    • 1,785
    • 0.0
    • 9.13
    • 50 %
    • 1.58
    • 0.361
    • 79.5
    • 99.9
    • 1,770
    • 0.0
    • 18.26
    • 75 %
    • 2.21
    • 0.506
    • 84.4
    • 100.0
    • 1,760
    • 0.0
    • 27.40
    • 100 %
    • 3.00
    • 0.673
    • 83.0
    • 99.2
    • 1,740
    • 0.0
    • 36.52
    • 115 %
    • 3.45
    • 0.781
    • 82.4
    • 98.6
    • 1,725
    • 0.0
    • 42.00
    • 125 %
    • 3.80
    • 0.855
    • 81.3
    • 98.0
    • 1,715
    • 0.0
    • 45.65
