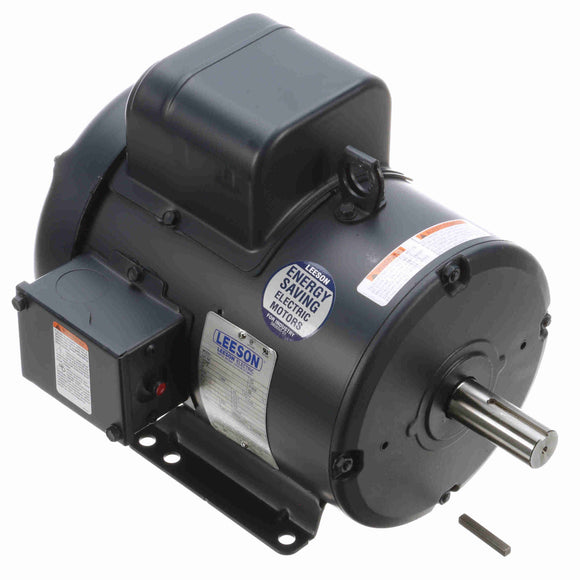

131855.00 Leeson 3HP General Purpose Electric Motor, 1800RPM-1

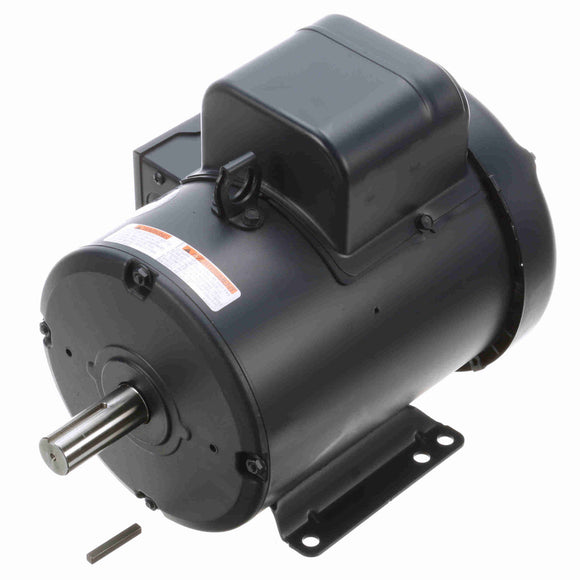

131855.00 Leeson 3HP General Purpose Electric Motor, 1800RPM-2

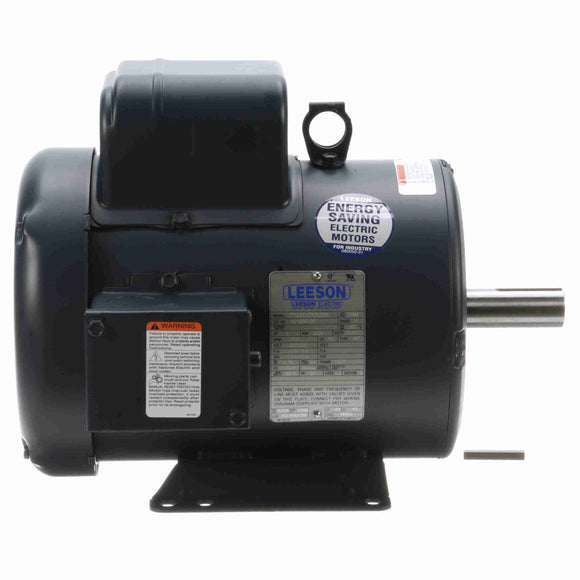

131855.00 Leeson 3HP General Purpose Electric Motor, 1800RPM-3

131855.00 Leeson 3HP General Purpose Electric Motor, 1800RPM

$1,099.97 USD $2,149.00 USD Save $1,049.03 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 131855.00 Barcode: 691720154526

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Double shielded ball bearings
  • Dynamically balanced rotors
  • NEMA ® Design B performance
  • Continuous Duty
  • Meets or exceeds NEMA service factors

General Specifications

UPC: 691720154526 Weight: 88.00 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN

Nameplate Specifications

Output HP: 3 Hp Output KW: 2.2 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 14.4-13.6 A Speed: 1740 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 82.5 % Power Factor: 87
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: J
Frame: 184T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: .777 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 14.96 in
Frame Length: 9.50 in Shaft Diameter: 1.125 in
Shaft Extension: 2.75 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 94.00 23.50 261.0 0 3.00
Pull-Up 0.00 19.60 218.0 1,300 3.00
Full Load 13.60 9.00 100.0 1,758 3.00
Break-Down 0.00 22.50 250.0 1,500 3.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 5.90 6.55 8.22 10.52 13.53 16.15 19.49
Rated Output (KW) 0.37 0.87 1.44 2.05 2.71 3.38 4.13
Efficiency (%) 0.0 66.0 79.2 82.8 83.0 82.8 80.2
Power Factor (%) 27.3 57.6 76.1 84.6 87.1 91.0 92.0
Speed (RPM) 1,798 1,789 1,780 1,768 1,758 1,743 1,726
Temp. Rise @ FL 0.0 0.0 0.0 0.0 72.0 0.0 0.0
Torque (ft-lbs) 0.00 2.25 4.50 6.75 9.00 11.30 13.50
