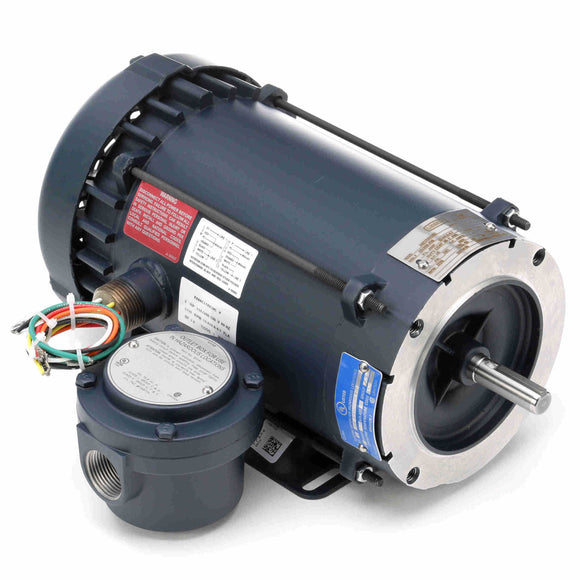

116614.00 Leeson 1HP Explosion Proof Electric Motor, 1800RPM

$1,299.97 USD $2,255.00 USD Save $955.03 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 116614.00 Barcode: 691720341858

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Meets T3B temperature code with a maximum surface temperature of 329° F.
  • Permanently lubricated, sealed bearings extend the lifetime of the motor.
  • 140 frame motor and below include explosion proof conduit box, shipped loose.

General Specifications

UPC: 691720341858 Weight: 40.00 LB
Packaged Length: 16.12 IN Packaged Width: 10.25 IN
Packaged Height: 9.12 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 13.4/6.8-6.7 A Speed: 1725 rpm
Service Factor: 1 Phase: 1
Efficiency: 72 % Power Factor: 69.5
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: J
Frame: 56C Enclosure: Explosion Proof Fan cooled
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Hazardous Location: EXP PROOF CL I GR C&D CL II GR F&G T3C

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 14.44 in
Frame Length: 7.31 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (OZ-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 24.40 101.00 1,250 4.20 1.00
Locked-Rotor 34.70 0.0 142.50 0.0 0 7.10 85.0 1.00
Break-Down 18.60 0.0 122.00 0.0 1,514 3.40 0.0 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 % 175 %
Current (Amps) 4.40 4.80 5.20 5.80 6.70 7.00 7.80 9.00 10.70
Rated Output (KW) 0.17 0.38 0.59 0.82 1.04 1.15 1.33 1.63 1.98
Efficiency (%) 0.0 48.8 63.3 68.6 72.0 74.6 70.5 69.0 66.0
Power Factor (%) 16.8 34.4 49.3 61.1 69.5 71.4 73.9 78.5 80.5
Speed (RPM) 1,800 1,785 1,774 1,760 1,740 1,734 1,725 1,705 1,670
Temp. Rise @ FL 0.0 0.0 0.0 0.0 75.0 95.0 0.0 0.0 0.0
Torque (OZ-FT) 0.00 11.70 23.70 35.80 48.30 55.70 61.00 74.10 88.20
