Features
Features
- Permanent split capacitor design rated for 115/230VAC 60/50 HZ input
- Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation
- Precision machined aluminum gear housing
- Lubrication is permanent with an oil bath
- Gearbox has all ball bearings
- Output shaft is field interchangeable from left hand to right hand style by reassembly
- Double output shaft available as a factory option
- Optional conduit box available
General Specifications
General Specifications

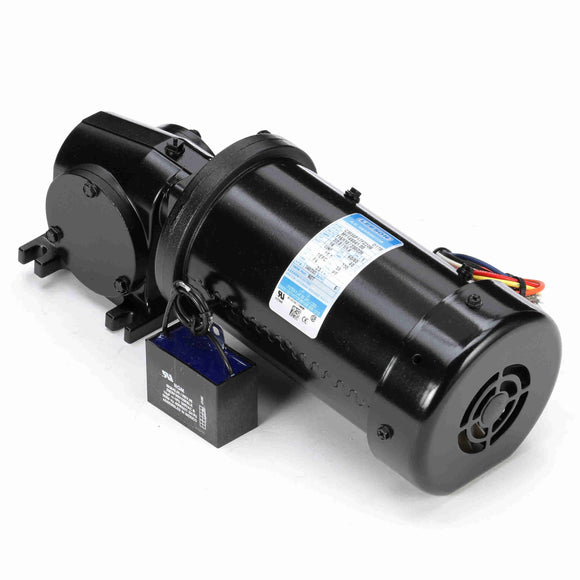

| Model : | CM38P17FZ20B | Catalog No : | M1145041.00 |
| Part Description : | ..1/6HP..340RPM.38.TEFC.115/230V.1PH.60HZ.....CM38P17FZ20B.13...5:1.AC GEARMOTORS SUB-FHP..23LBIN...... | Category : | Right Angle |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 0.16 HP | Output KW : | 0.12 kW |
| Frequency : | 60 Hz | Voltage : | 110 V |
| Current : | 2.0/1.0 A | Speed : | 340 RPM |
| Service Factor : | 1 | Phase : | 1 |
| Duty : | Continuous | Insulation Class : | F |
| KVA Code : | D | Frame : | 38 |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6201 |
| Opp Drive End Bearing Size : | 6201 | UL : | Recognized |
| CSA : | Y | CE : | Y |
Technical Specifications
Technical Specifications
| Rotation : | Reversible | Mounting : | Special |
| Shaft Type : | Right Angle | Overall Length : | 12.31 in |
| Frame Length : | 5.88 in | Shaft Diameter : | 0.625 in |
| Shaft Extension : | 1.8 in | UPC : | 691720092231 |
| Weight : | 19.00 LB |
Speed & Load Characteristics
