Features
Features
- Permanent split capacitor design rated for 115/230VAC 60/50 HZ input
- Precision machined in-line steel gears
- First stage steel helical gear followed by spur-type gears
- Lubrication is permanent semi-fluid grease, reducing possibility of leakage
- Output shafts have needle bearings for high load capacities
- Shafts are hardened steel
- Optional conduit box available
General Specifications
General Specifications

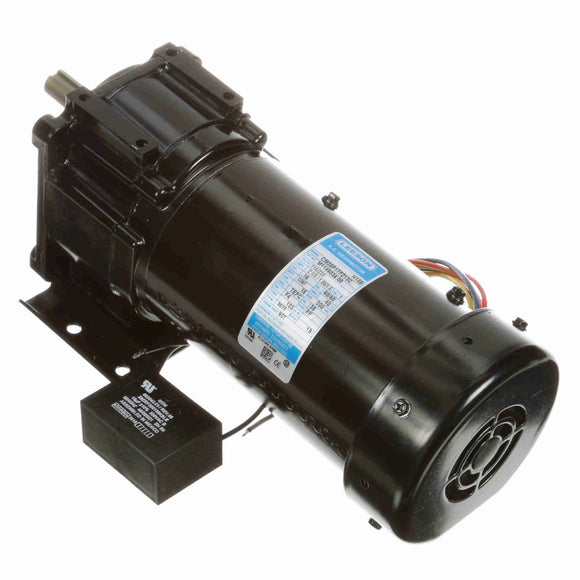

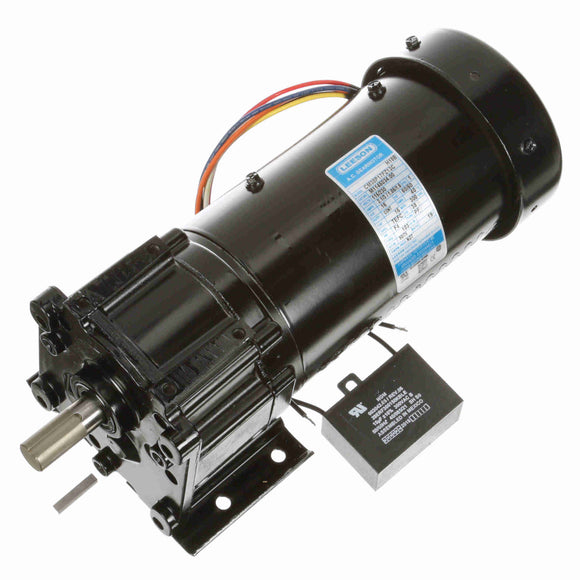

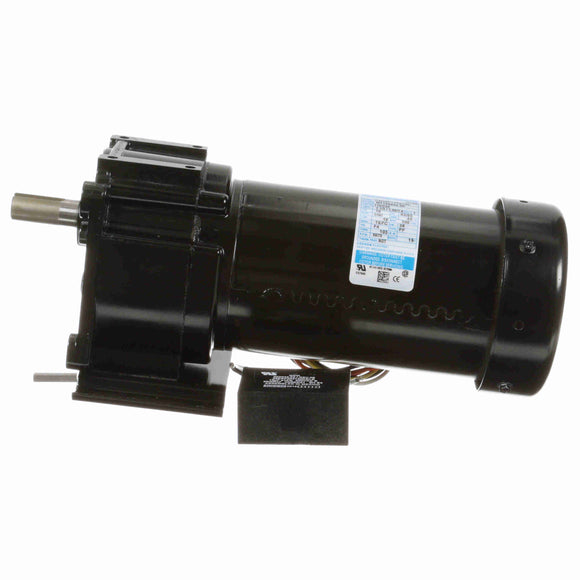

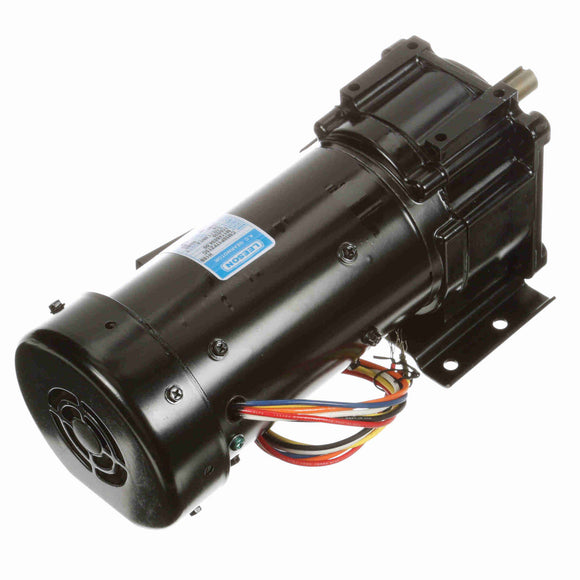

| Model : | CM38P17FZ13C | Catalog No : | M1145034.00 |
| Part Description : | ..1/6HP..90RPM.38.TEFC.115/230V.1PH.60HZ.....CM38P17FZ13C.P240...19:1.AC GEARMOTORS SUB-FHP..103LBIN...... | Category : | P240 Series |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 0.16 Hp | Output KW : | 0.12 kW |
| Frequency : | 60 Hz | Voltage : | 115 V |
| Current : | 2.1/1.1 A | Speed : | 90 rpm |
| Service Factor : | 1 | Phase : | 1 |
| Duty : | Continuous | Insulation Class : | F |
| KVA Code : | D | Frame : | 38 |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6201 |
| Opp Drive End Bearing Size : | 6201 | UL : | Recognized |
| CSA : | Y | CE : | Y |
Technical Specifications
Technical Specifications
| Rotation : | Reversible | Mounting : | Special |
| Shaft Type : | Parallel | Overall Length : | 12.13 in |
| Frame Length : | 5.88 in | Shaft Diameter : | 0.625 in |
| Shaft Extension : | 1.5 in | UPC : | 691720092170 |
| Weight : | 19.00 LB |
