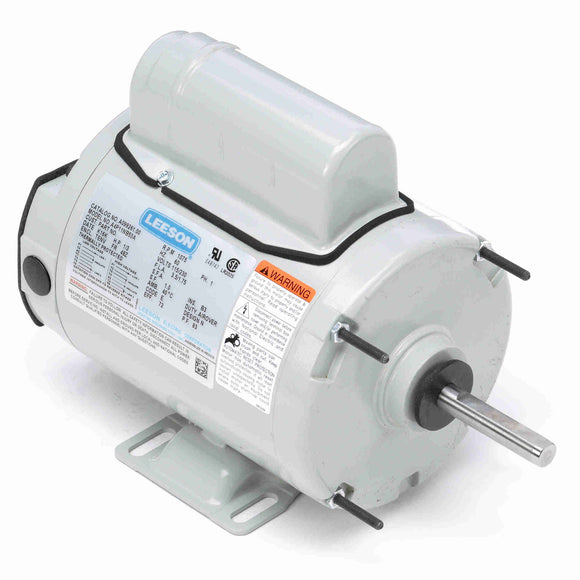

A099261.00 Leeson 1/3HP 2-Winding Agriculture/Fan Duty Electric Motor, 1075RPM-1

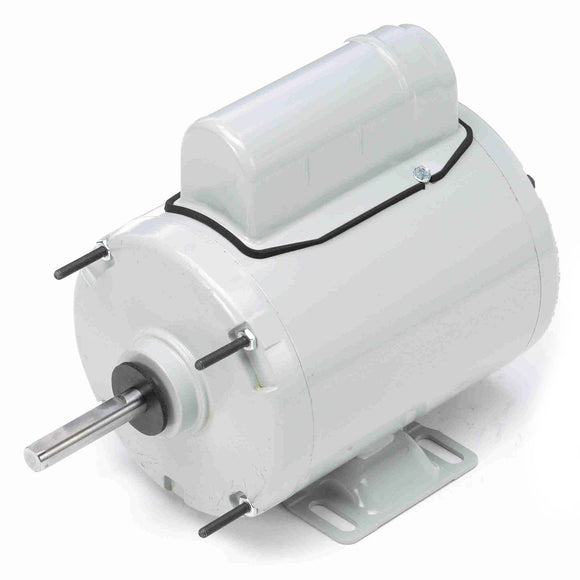

A099261.00 Leeson 1/3HP 2-Winding Agriculture/Fan Duty Electric Motor, 1075RPM-2

A099261.00 Leeson 1/3HP 2-Winding Agriculture/Fan Duty Electric Motor, 1075RPM

$298.86 USD $862.00 USD Save $563.14 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: A099261.00 Barcode: 691720102923

30 Day
Return Policy

Ships Fast
in 24 hours

Sold Out

Features

  • PSC designs offer low in-rush current
  • Two speed operation - most ratings
  • Automatic overload protected
  • Corrosion resistant finish

General Specifications

UPC: 691720102923 Weight: 22.00 LB
Packaged Length: 12.75 IN Packaged Width: 9.5 IN
Packaged Height: 9.38 IN

Nameplate Specifications

Output HP: 0.33 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 3.5/1.8 A Speed: 1075 rpm
Service Factor: 1 Phase: 1
Efficiency: 72 % Power Factor: 83
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: E
Frame: 48Z Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Lock Rotor Only Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid - Extended Studs
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 10.90 in
Frame Length: 5.75 in Shaft Diameter: 0.500 in
Shaft Extension: 2.24 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 6.63 10.20 31 1.11 0.33
Locked-Rotor 6.63 10.50 0 1.11 0.33
Break-Down 4.28 49.00 943 0.84 0.33

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.95 1.05 1.23 1.47 1.76 2.14 2.64
Rated Output (KW) 0.09 0.14 0.20 0.27 0.34 0.42 0.54
Efficiency (%) 0.0 44.0 61.0 70.0 72.0 73.0 69.0
Power Factor (%) 40.0 58.0 71.0 78.0 83.0 86.0 88.0
Speed (RPM) 1,200 1,186 1,173 1,158 1,141 1,120 1,088
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 6.00 12.00 18.20 24.60 31.30 38.70
