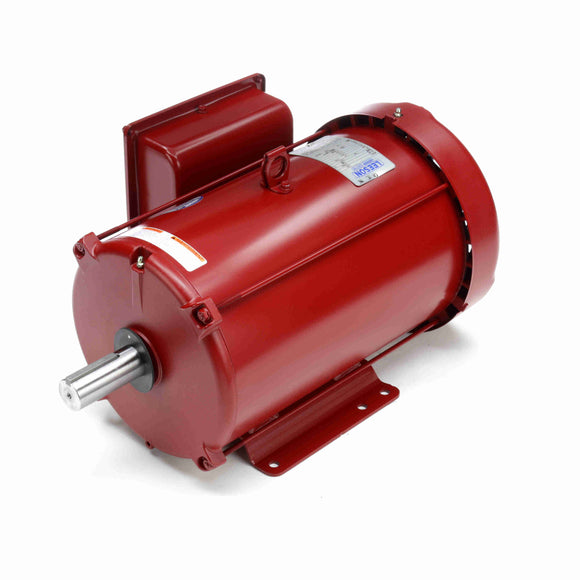

140706.00 Leeson 10HP Farm Duty/General Purpose Electric Motor-1

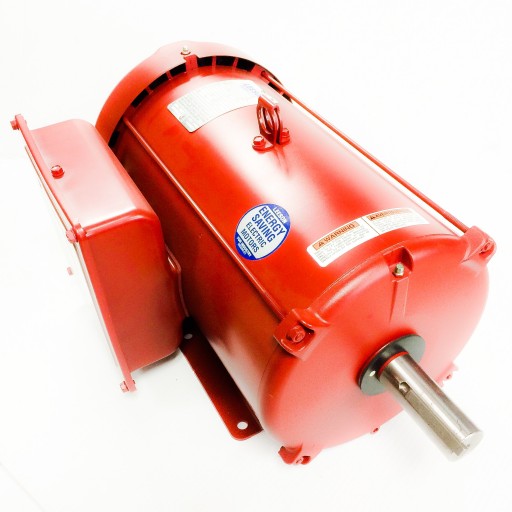

140706.00 Leeson 10HP Farm Duty/General Purpose Electric Motor-2

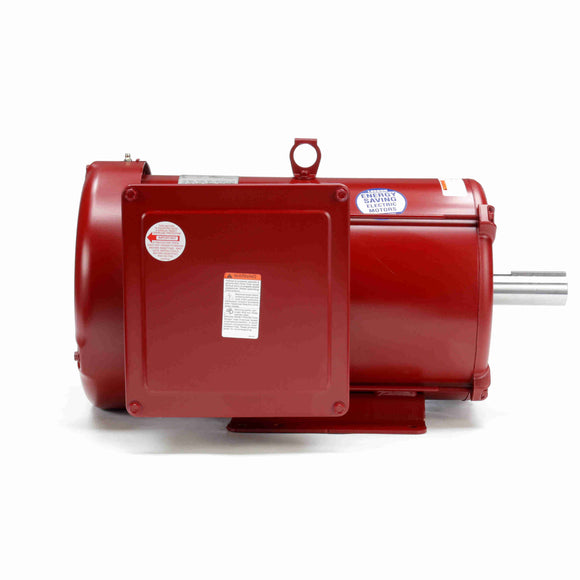

140706.00 Leeson 10HP Farm Duty/General Purpose Electric Motor-3

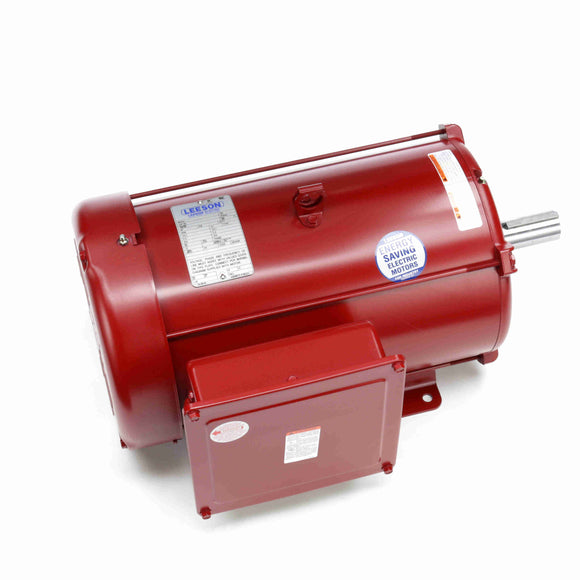

140706.00 Leeson 10HP Farm Duty/General Purpose Electric Motor-4
140706.00 Leeson 10HP Farm Duty/General Purpose Electric Motor-5

140706.00 Leeson 10HP Farm Duty/General Purpose Electric Motor

$1,538.50 USD $3,899.00 USD Save $2,360.50 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 140706.00 Barcode: 691720255797

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Product Features

List Price :$ 2,432
Catalog No 140706.00 Model P215K17FB16B
Product type AC MOTOR Stock Stock
Description 10HP..1740RPM.215.TEFC./230V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.RIGID.AG - FARM DUTY/GENERAL PURPOSE.P215K17FB16B.B
Information shown is for current motor's design
 Engineering Data
Volts 230 Volts Volts
F.L. Amps 40 F.L. Amps F.L. Amps
S. F Amps 45 S. F Amps S. F Amps
RPM 1800 Hertz 60
HP 10 Duty CONTINUOUS TYPE KF
KW 7.50
Frame 215T Serv. Factor 1.15 Phase 1
Max Amb 40 Design NO DESIGN CODE Code G
Insul Class F Protection MANUAL Therm.Prot. LED965
Eff 100% 86.5 Eff 75% PF 95
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6206
CC Number EXEMPT CE No Bearing PE 6207
Load Type Inverter Type Speed Range NONE
Motor Wt. 155 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID Rotation SELECTIVE CCW
Assembly 210-005.02 Shaft Dia. 1 3/8 IN Ext. Diag. 005461.02
Cust Part No Outline 037596-1400 Ext. Diag2
Packaging B Winding K9425
Carton Label Leeson Farm Duty     GROUP: 2
Iris Paint RED - LEESON FARM DUTY Test Card 01
Form Factor   RMS Amps   Const Torque Speed Range
Torque   Peak
AB Code   Peak@DegC
Resistance
Connection
Rework Status   Rework TYPE
Hazardous Loc NONE  Brake Motors
Explosion Proof   Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
        Brake Coil OHMs @25 C
Performance
Torque UOM LB-FT Inertia (WK²) 1.157 LB-FT^2
Torque 30(Full Load) 69.5(Break Down) 61.5(Pull Up) 90.2(Locked Rotor)
CURRENT (amps) 40(Full Load) 146(Break Down) 179.4(Pull Up) 264(Locked Rotor)
Efficiency (%) 0(Full Load) 86.4(75% Load) 83.7(50% Load) 72.3(25% Load)
PowerFactor 0(Full Load) 94.9(75% Load) 92.8(50% Load) 85.5(25% Load)
Load Curve Data @60 Hz, 230 Volts, 10 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 7.7 0.813 1798 0.0 0.0 45.9 0.0 -
0.25 13.4 2.636 1788 7.5 72.3 85.5 0.0 -
0.5 21.2 4.523 1776 15.0 83.7 92.8 0.0 -
0.75 29.9 6.529 1766 22.5 86.4 94.9 0.0 -
1.0 39.5 8.656 1751 30.0 86.2 95.3 95.0 -
1.25 49.7 10.913 1733 37.5 84.6 95.5 0.0 -
1.5 60.9 13.36 1715 45.0 82.1 95.4 0.0 -
SOURCE: CALCULATED GROUP: 2
