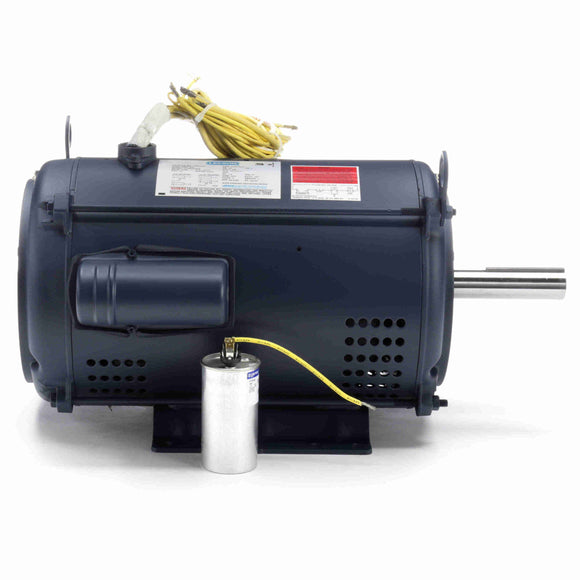

140640.00 10-15HP Leeson Ag-Duty Crop Dryer Motor-1

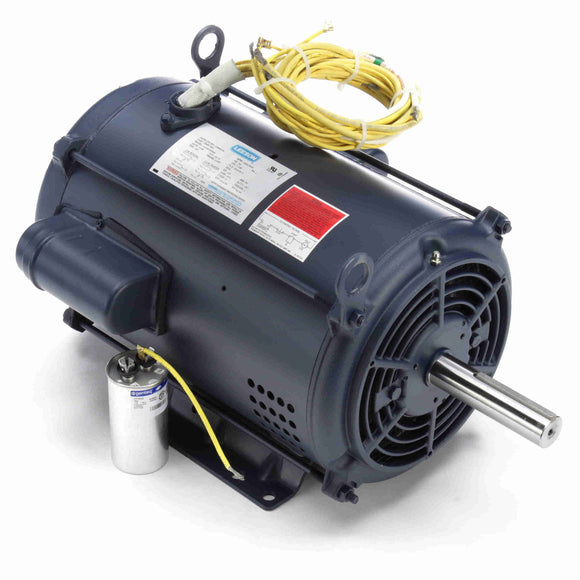

140640.00 10-15HP Leeson Ag-Duty Crop Dryer Motor-2

140640.00 10-15HP Leeson Ag-Duty Crop Dryer Motor

$1,098.80 USD $4,076.00 USD Save $2,977.20 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 140640.00 Barcode: 691720154663

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Used on Crop Dryers with air over/fan on shaft designs

Features

  • Class “F” insulation system
  • Overload protected
  • Keyed shaft with 1/4-20 UNC tapped hole on end
  • 34” long leads
  • Capacitors shipped loose on 1-phase designs
  • Motor venting protected against insects and rodents
  • Double sealed ball bearings

General Specifications

UPC: 691720154663 Weight: 162.00 LB
Packaged Length: 22.5 IN Packaged Width: 16.81 IN
Packaged Height: 14 IN

Nameplate Specifications

Output HP: 10 Hp Output KW: 7.5 kW
Frequency: 60/60 Hz Voltage: 230 V
Current: 39.5 A Speed: 3520 rpm
Service Factor: 1 Phase: 1
Efficiency: 85.5 % Power Factor: 82
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: E
Frame: 215TZ Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 307 Opp Drive End Bearing Size: 206
UL: Recognized CSA: Y
CE: N IP Code: 22

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: .113 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 20.42 in
Frame Length: 12.40 in Shaft Diameter: 1.125 in
Shaft Extension: 4.5 in Assembly/Box Mounting: F3

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 322.00 524.0 36.20 159.0 0 57.50 77.5 15.00
Full Load 61.50 100.0 22.70 100.0 3,455 13.30 94.0 15.00
Break-Down 188.50 307.0 48.30 213.0 3,040 0.00 0.0 15.00
Pull-Up 322.00 524.0 35.80 158.0 160 56.90 75.5 15.00
