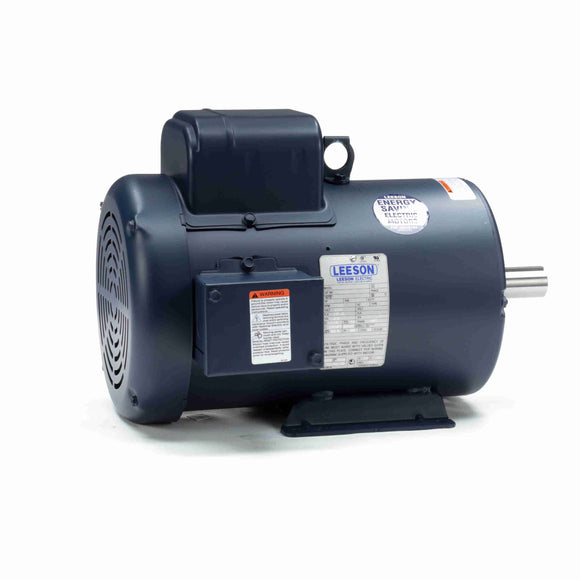

132042.00 Leeson 5HP General Purpose Electric Motor, 3600RPM-1

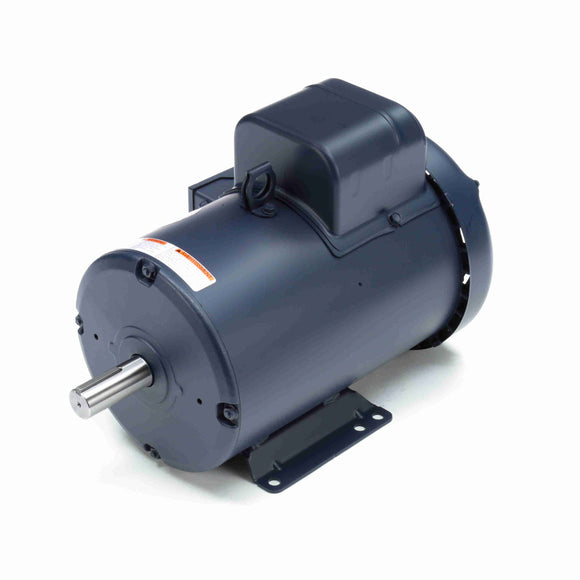

132042.00 Leeson 5HP General Purpose Electric Motor, 3600RPM-2

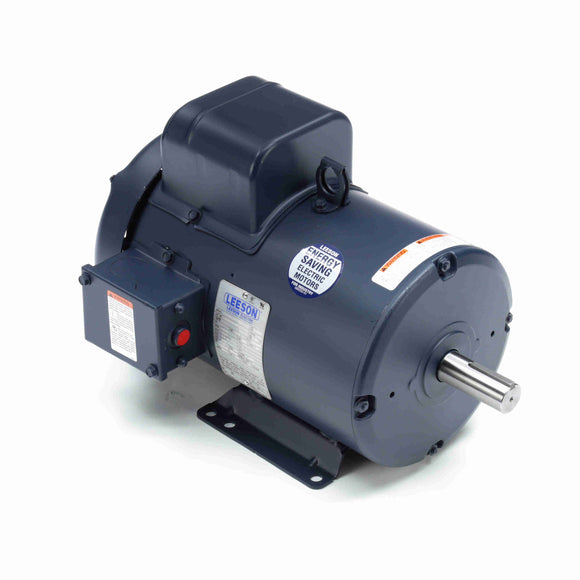

132042.00 Leeson 5HP General Purpose Electric Motor, 3600RPM-3

132042.00 Leeson 5HP General Purpose Electric Motor, 3600RPM

$1,399.97 USD $2,686.00 USD Save $1,286.03 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 132042.00 Barcode: 691720346686

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Double shielded ball bearings
  • Dynamically balanced rotors
  • NEMA ® Design B performance
  • Continuous Duty
  • Meets or exceeds NEMA service factors

General Specifications

UPC: 691720346686 Weight: 103.00 LB
Packaged Length: 20.13 IN Packaged Width: 14.63 IN
Packaged Height: 12.38 IN

Nameplate Specifications

Output HP: 5 Hp Output KW: 3.7 kW
Frequency: 60 Hz Voltage: 230 V
Current: 19.8 A Speed: 3500 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 82.5 % Power Factor: 98
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: H
Frame: 184T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: .342 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 16.96 in
Frame Length: 11.50 in Shaft Diameter: 1.125 in
Shaft Extension: 2.75 in Assembly/Box Mounting: F1 Only

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 19.80 7.50 100.0 3,528 5.00
Break-Down 0.00 19.40 259.0 0 5.00
Pull-Up 0.00 15.80 211.0 0 5.00
Locked-Rotor 153.00 16.20 216.0 0 5.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 2.92 6.67 10.91 15.48 20.20 22.80 25.40 31.05
Rated Output (KW) 0.55 1.47 2.46 3.49 4.56 5.10 5.70 6.93
Efficiency (%) 0.0 65.0 77.4 81.3 82.5 82.0 81.9 80.6
Power Factor (%) 81.9 96.0 97.8 98.1 98.0 97.0 97.6 97.0
Speed (RPM) 3,594 3,583 3,566 3,549 3,530 3,525 3,504 3,476
Temp. Rise @ FL 0.0 0.0 0.0 0.0 71.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 1.88 3.75 5.63 7.50 8.60 9.38 11.30
