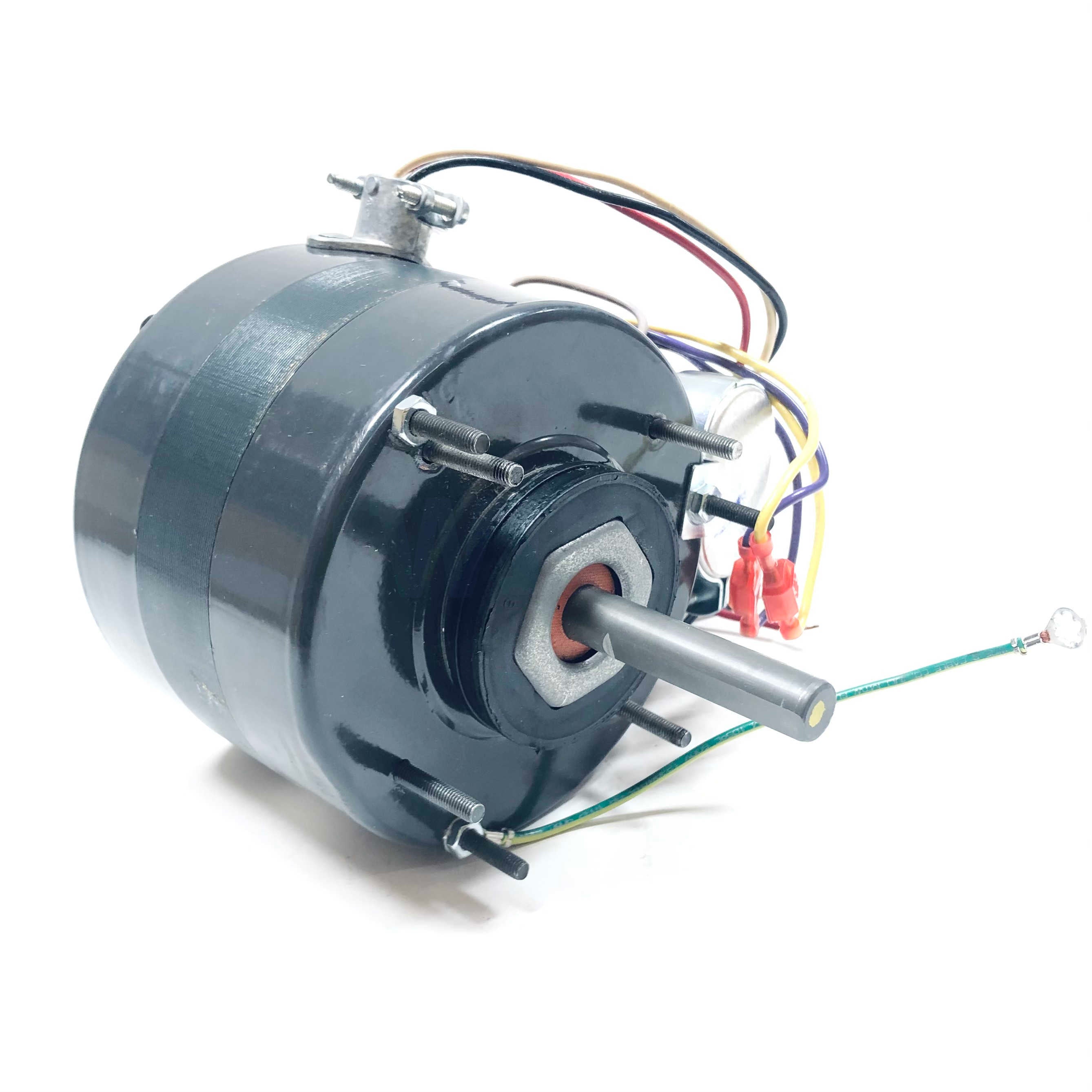

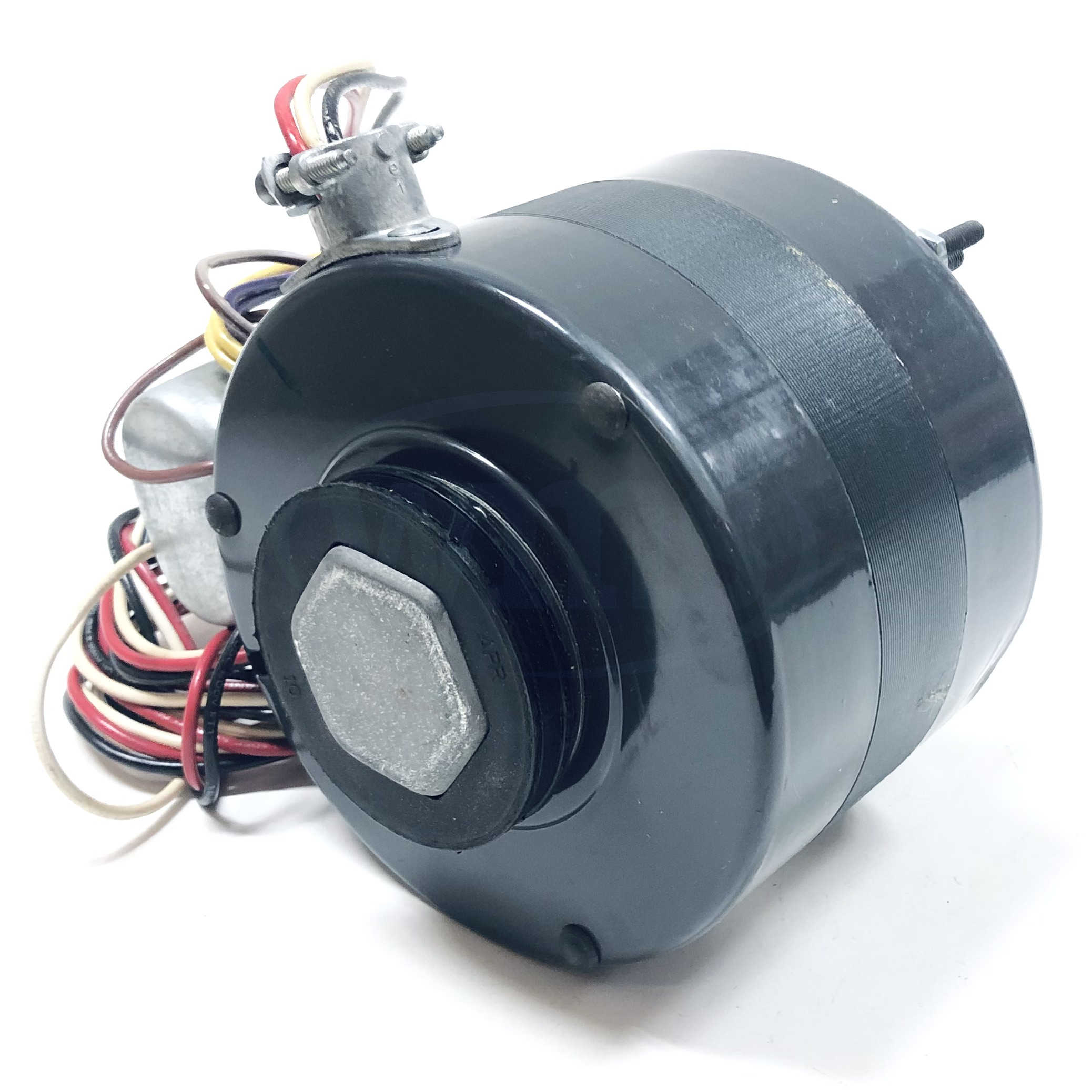

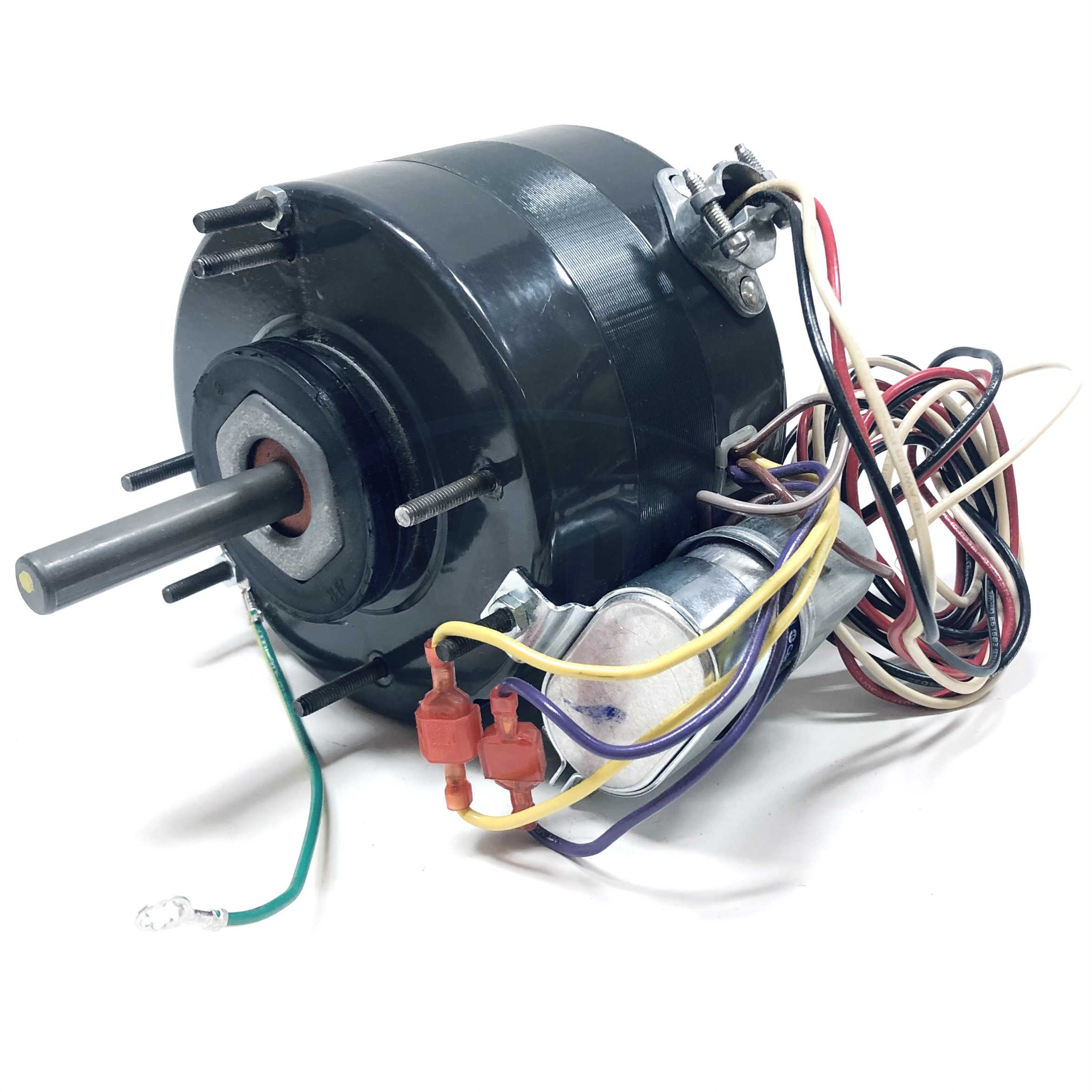

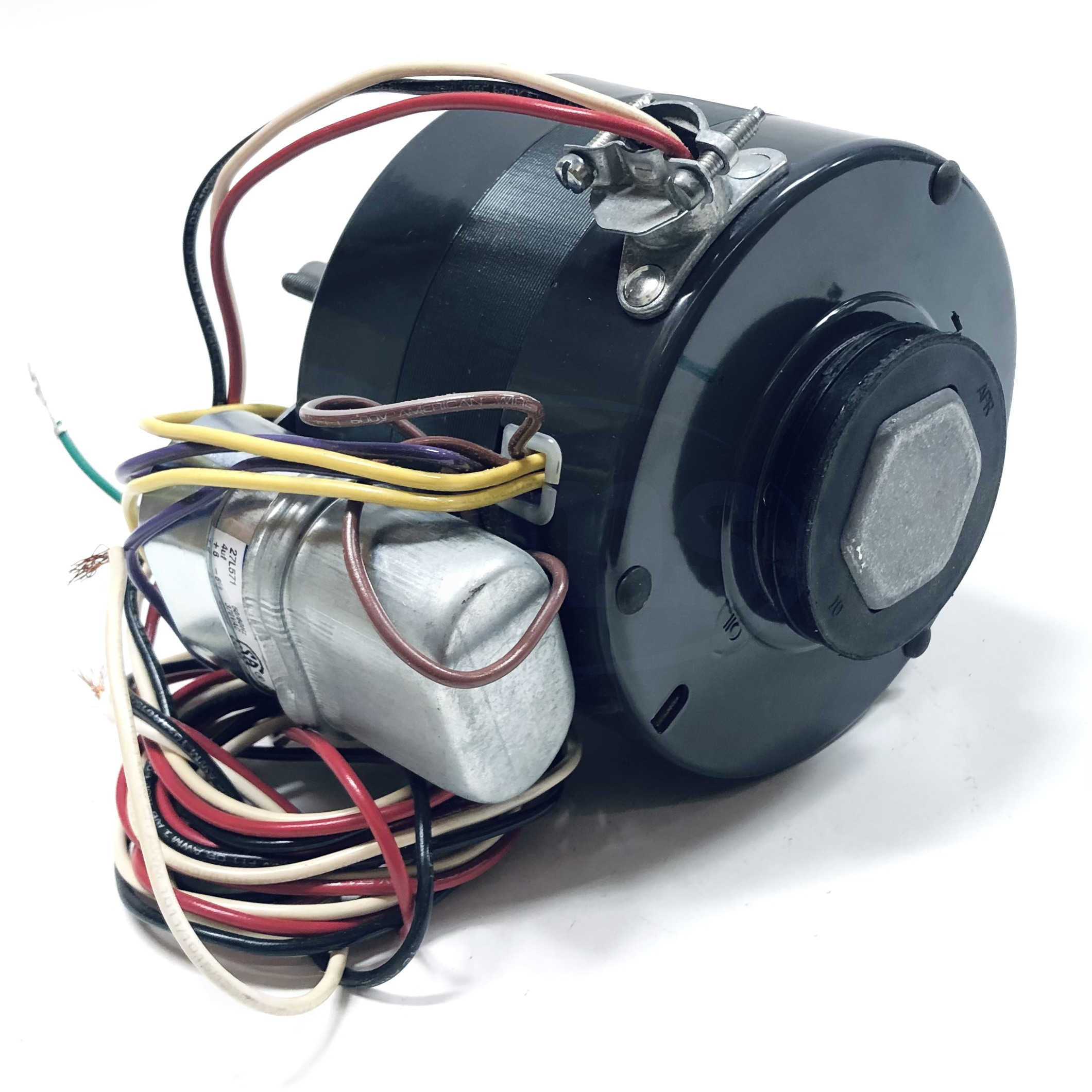

Features
- Ventilation - Unit Heater Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 58" Leads with .5" Strip
- Extended Studs Shaft End, Resilient Mounting Ring Shaft end and Lead End
General Specifications
| UPC: | 815585029366 | Weight: | 9 LB |
| Packaged Length: | 6.75 IN | Packaged Width: | 5.63 IN |
| Packaged Height: | 10 IN |
Nameplate Specifications
| Output HP: | 1/8-1/5 Hp | Output KW: | 0.10 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 2.3/1.1 A | Speed: | 1075 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous | Insulation Class: | B |
| Frame: | 42 | Enclosure: | Open Air Over |
| Thermal Protection: | Automatic | Ambient Temperature: | 40 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Reversible |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Na |
| Shaft Type: | Flat | Overall Length: | 7.34 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 3 in |
