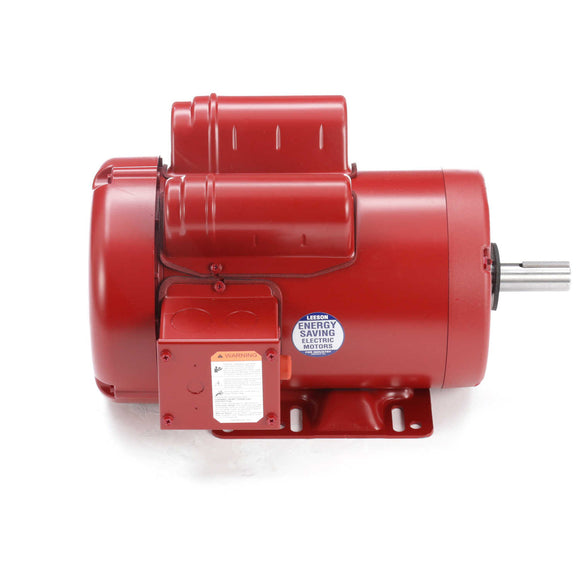

110090.00 2HP Leeson Farm Duty Electric Motor-1
110090.00 2HP Leeson Farm Duty Electric Motor-2
110090.00 2HP Leeson Farm Duty Electric Motor-3

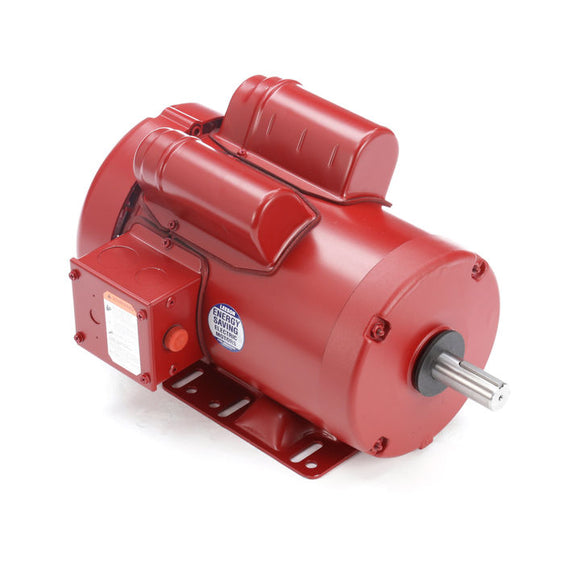

110090.00 2HP Leeson Farm Duty Electric Motor-4

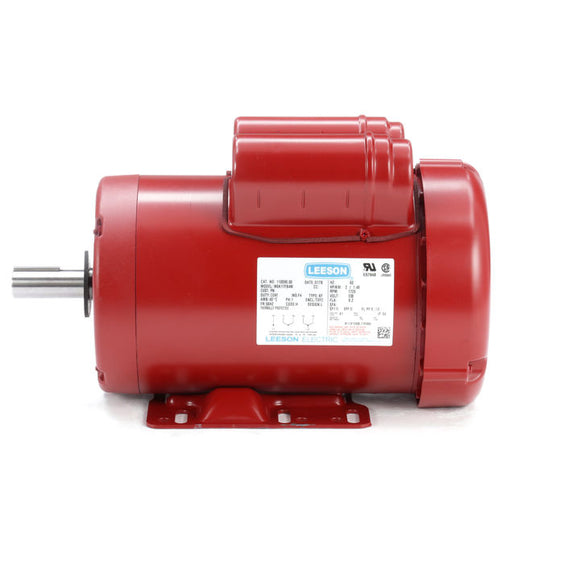

110090.00 2HP Leeson Farm Duty Electric Motor-5

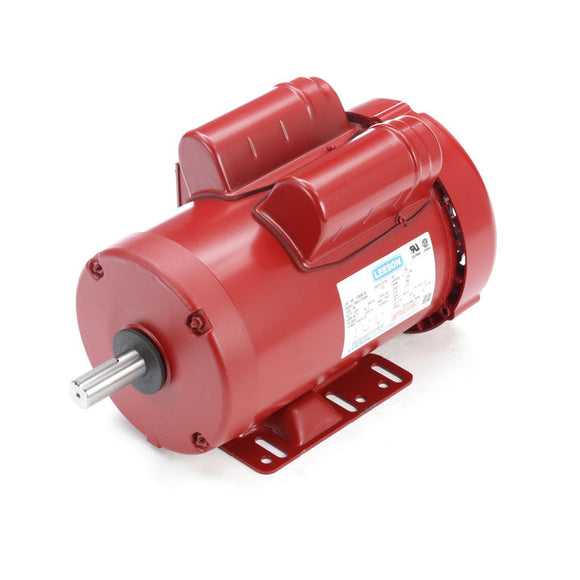

110090.00 2HP Leeson Farm Duty Electric Motor-6

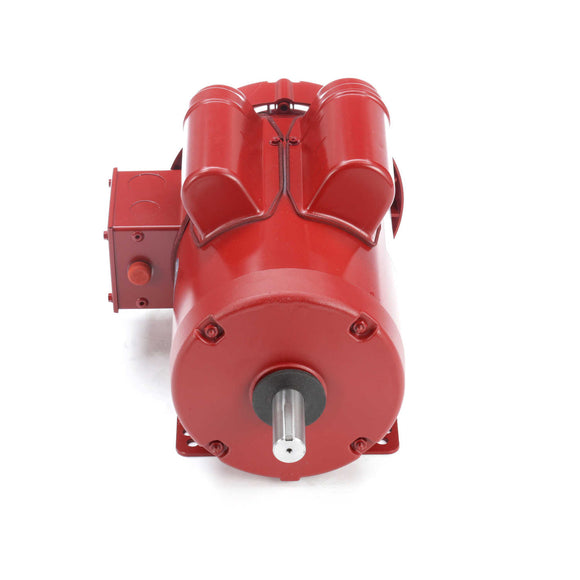

110090.00 2HP Leeson Farm Duty Electric Motor-7

110090.00 2HP Leeson Farm Duty Electric Motor

$642.22 USD $2,228.00 USD Save $1,585.78 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 110090.00 Barcode: 691720007822

30 Day
Return Policy

Ships Fast
in 24 hours

3

In stock!

Product Features


Catalog No 110090.00 Model M6K17FB4M
Product type AC MOTOR Stock Stock
Description ..2HP..1725RPM.56H.TEFC./V.1PH.60HZ.CONT.40C.1.15SF.RIGID.M6K17FB4M.....AG - FARM DUTY/GENERAL PURPOSE.MANUAL.......
Information shown is for current motor's design
 Engineering Data
Volts 230 Volts Volts
F.L. Amps 9.2 F.L. Amps F.L. Amps
S. F Amps S. F Amps S. F Amps
RPM 1800 Hertz 60
HP 2 Duty CONTINUOUS TYPE KF
KW 1.49
Frame 56HZ Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code H
Insul Class F Protection MANUAL Therm.Prot. CED3706
Eff 100% 82 Eff 75% PF 86
UL Yes CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6205
Load Type Inverter Type Speed Range NONE
Motor Wt. 46 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW

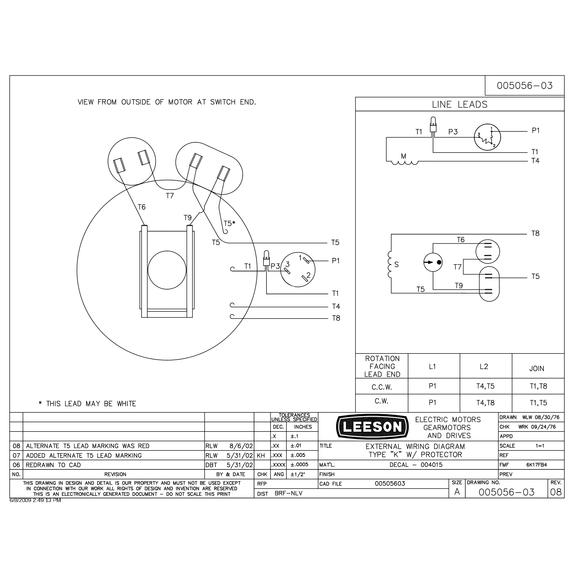

Assembly 042540 Shaft Dia. 7/8 IN Ext. Diag. 005056.03

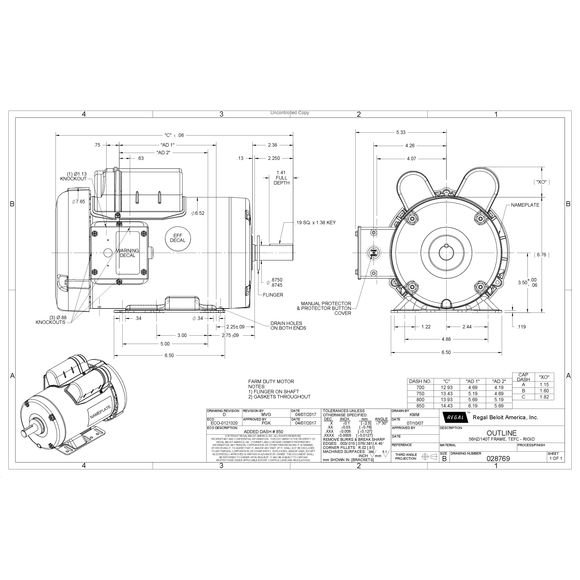

Cust Part No Outline 028769-800C Ext. Diag2
Packaging B Winding K634271
Carton Label Leeson Farm Duty     GROUP: 2
Iris Paint RED - LEESON FARM DUTY Test Card 02
Form Factor   RMS Amps   Const Torque Speed Range
Torque   Peak
AB Code   Peak@DegC
Resistance
Connection
Rework Status   Rework TYPE
Hazardous Loc NONE  Brake Motors
Explosion Proof   Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
        Brake Coil OHMs @25 C
Performance
Torque UOM LB-FT Inertia (WK²) .15 LB-FT^2
Torque 6(Full Load) 16.3(Break Down) 13.2(Pull Up) 16.8(Locked Rotor)
CURRENT (amps) 10.34(Full Load) 35.77(Break Down) 47.67(Pull Up) 64.54(Locked Rotor)
Efficiency (%) 0(Full Load) 73.9(75% Load) 68.3(50% Load) 53.1(25% Load)
PowerFactor 82.8(Full Load) 78.5(75% Load) 69.8(50% Load) 53.9(25% Load)
Speed Torque Curve @ 60 Hz, 230 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
FL 10.34 100.0 6.0 100.0 1759 1.759 82.8 2.0
BD 35.77 346.0 16.3 272.0 0.0 7.154 - 2.0
PU 47.67 461.0 13.2 220.0 0.0 8.422 - 2.0
LR 64.54 624.0 16.8 280.0 0.0 13.456 - 2.0
SOURCE: CALCULATED GROUP: 2
Load Curve Data @60 Hz, 230 Volts, 2 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 5.4 0.381 1796 0.0 0.0 30.7 0.0 -
0.25 5.78 0.717 1786 1.5 53.1 53.9 0.0 -
0.5 6.9 1.108 1775 3.0 68.3 69.8 0.0 -
0.75 8.45 1.525 1764 4.5 73.9 78.5 0.0 -
1.0 10.22 1.95 1752 6.0 76.6 83.0 107.1 66.0
1.15 11.8 2.416 1736 7.5 76.5 86.2 0.0 -
1.5 14.31 2.888 1717 9.0 76.0 87.7 0.0 -
1.75 16.83 3.427 1697 10.5 73.9 88.5 0.0 -
2.0 19.84 4.044 1667 12.0 70.3 88.6 0.0 -
SOURCE: CALCULATED GROUP: 2
