Description

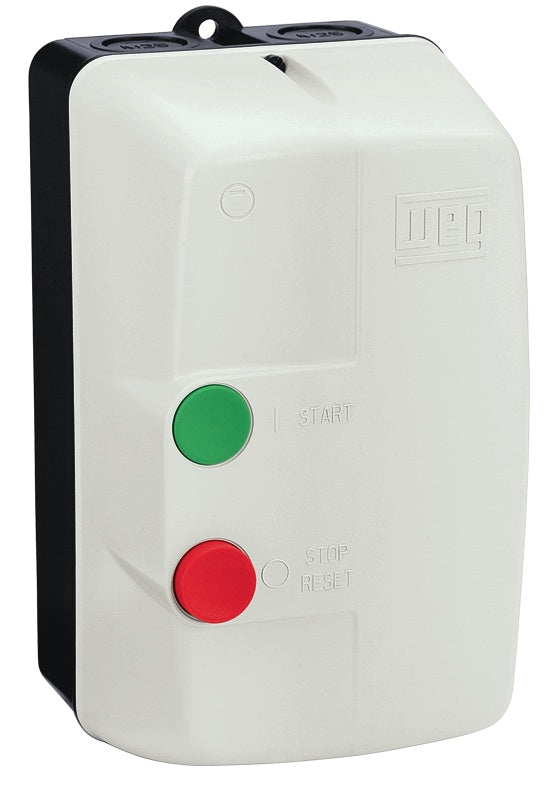

The PESW-B is WEG’s latest offering in a NEMA 4X Non Metallic Enclosure, Non-Reversing and Non-Combination Motor Starter. These starters feature components that meet IEC design standards and UL horsepower ratings while incorporating replaceable WEG CWB contactors and RW27-2D overload relays. These magnetic starters are ideal to protect and operate motors, ensuring smooth and reliable operation year after year.
Specifications
| Manufacturer | WEG |
|---|---|
| Catalog Number | PESW-B9D15AX-R57 13455468 |
| Enclosure | NEMA 4X Non-metallic |
| Coil Voltage | 120VAC 60Hz |
| Overload Setting Range | 0.8-1.2 Amps |
| Max UL Horsepower | 1/3 HP @ 230VAC 1/2 HP @ 460VAC 1/2 HP @ 575VAC |
| Control | Start + Stop/Reset Buttons |
| Box | 05 |
| Poles | 3-Pole (3-Phase) |
| Type | Non-Reversing Non-Combination Across the Line |
| UPC | 7909322174877 |
Standard Features
- NEMA 4X Enclosure with Knockouts
- Fast Motor Acceleration and High Initial Motor Torque
- Bi-metallic Overload Relays – Class 10
- Adjustable Trip Current
- Selectable Manual or Automatic Reset
- High Horsepower in Four Compact Sizes
- Phase Loss Protection
- Ambient Temperature Compensated
- East to Setup and Install
- c UL us

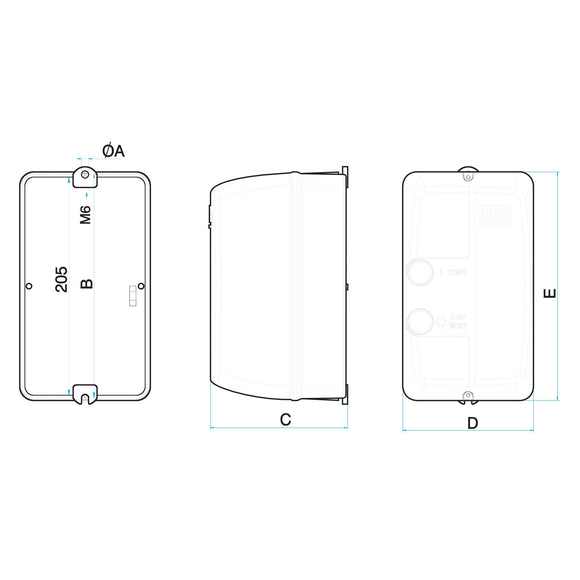

Dimensions
| øA | 5.5mm 0.2165" |
|---|---|
| B | 219.0mm 8.622" |
| C | 112.0mm 4.4331" |
| D | 114.0mm 4.4882" |
| E | 229.5mm 9.0354" |
| Provision for Cable Gland Fitting | Top: 2 x ½" -3/4" PG13.5 Bottom: 2 x ½" – ¾" PG13.5 Back: 4 x ½" PG13.5 |
Manufacturer Info
| Start Type | Direct Threephase Start |
|---|---|
| Maximum power rating | NAO APLICAVEL |
| Rated operational voltage | Ue=Uc |
| Supply voltage | 120V 50/60Hz |
| Starter key operation | A-On-Off Button |
| Degree of protection | TYPE4X |
| STARTERS COMPLEMENTS | Does Not Contain |
| NOMINAL RATED CURRENT (AC-3) | 9A (B) |
|---|---|
| OVERLOAD RELAY | RW27-2D3-D012 |
| MEASURING TOOL AND ACCESSORIES | Not Applicable |
| BUTTON TYPE | Unspecified |
| BUTTON COLOR | Not Specified |
| Connection Type | Not Applicable |
