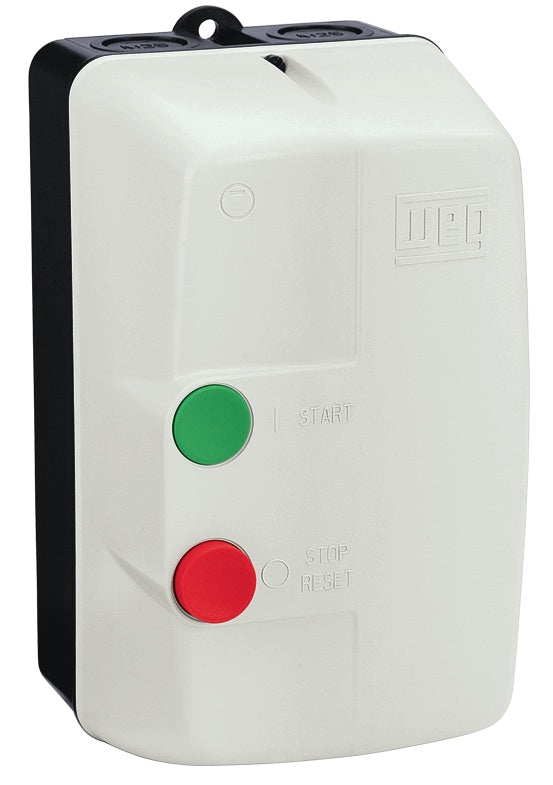

Weg Enclosed Starter PESW-B32D15AX-R68

$196.23 USD $298.00 USD Save $101.77 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: PESW-B32D15AX-R68 Barcode: 7909322140582

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Description

The PESW-B is WEG’s latest offering in a NEMA 4X Non Metallic Enclosure, Non-Reversing and Non-Combination Motor Starter. These starters feature components that meet IEC design standards and UL horsepower ratings while incorporating replaceable WEG CWB contactors and RW27-2D overload relays. These magnetic starters are ideal to protect and operate motors, ensuring smooth and reliable operation year after year.

Specifications

Manufacturer WEG
Catalog Number PESW-B32D15AX-R68
13438762
Enclosure NEMA 4X
Non-metallic
Coil Voltage 120VAC 50/60Hz
Overload Setting Range 22-32 Amps
Max UL Horsepower 10 HP @ 200VAC
10 HP @ 230VAC
20 HP @ 460VAC
25 HP @ 575VAC
Control Start + Stop/Reset Buttons
Box 06
Poles 3-Pole (3-Phase)
Type Non-Reversing
Non-Combination
Across the Line
UPC 7909322140582

Standard Features

  • NEMA 4X Enclosure with Knockouts
  • Fast Motor Acceleration and High Initial Motor Torque
  • Bi-metallic Overload Relays – Class 10
  • Adjustable Trip Current
  • Selectable Manual or Automatic Reset
  • High Horsepower in Four Compact Sizes
  • Phase Loss Protection
  • Ambient Temperature Compensated
  • East to Setup and Install
  • c UL us

Dimensions

øA 6.5mm
0.3"
B 205.0mm
8.1"
C 126.0mm
5.0"
D 120.0mm
4.7"
E 210mm
8.3"
Provision for Cable Gland Fitting Bottom: 2 x ½" – ¾" PG13.5
Back: ø22mm (0.9in)

Manufacturer Info

Start Type Direct Threephase Start
Maximum power rating NAO APLICAVEL
Rated operational voltage Ue=Uc
Supply voltage 120V 50/60Hz
Starter key operation A-On-Off Button
Degree of protection TYPE4X
STARTERS COMPLEMENTS Does Not Contain
NOMINAL RATED CURRENT (AC-3) 32A (B)
OVERLOAD RELAY RW27-2D3-U032
MEASURING TOOL AND ACCESSORIES Not Applicable
BUTTON TYPE Unspecified
BUTTON COLOR Not Specified
Connection Type Not Applicable
