Description

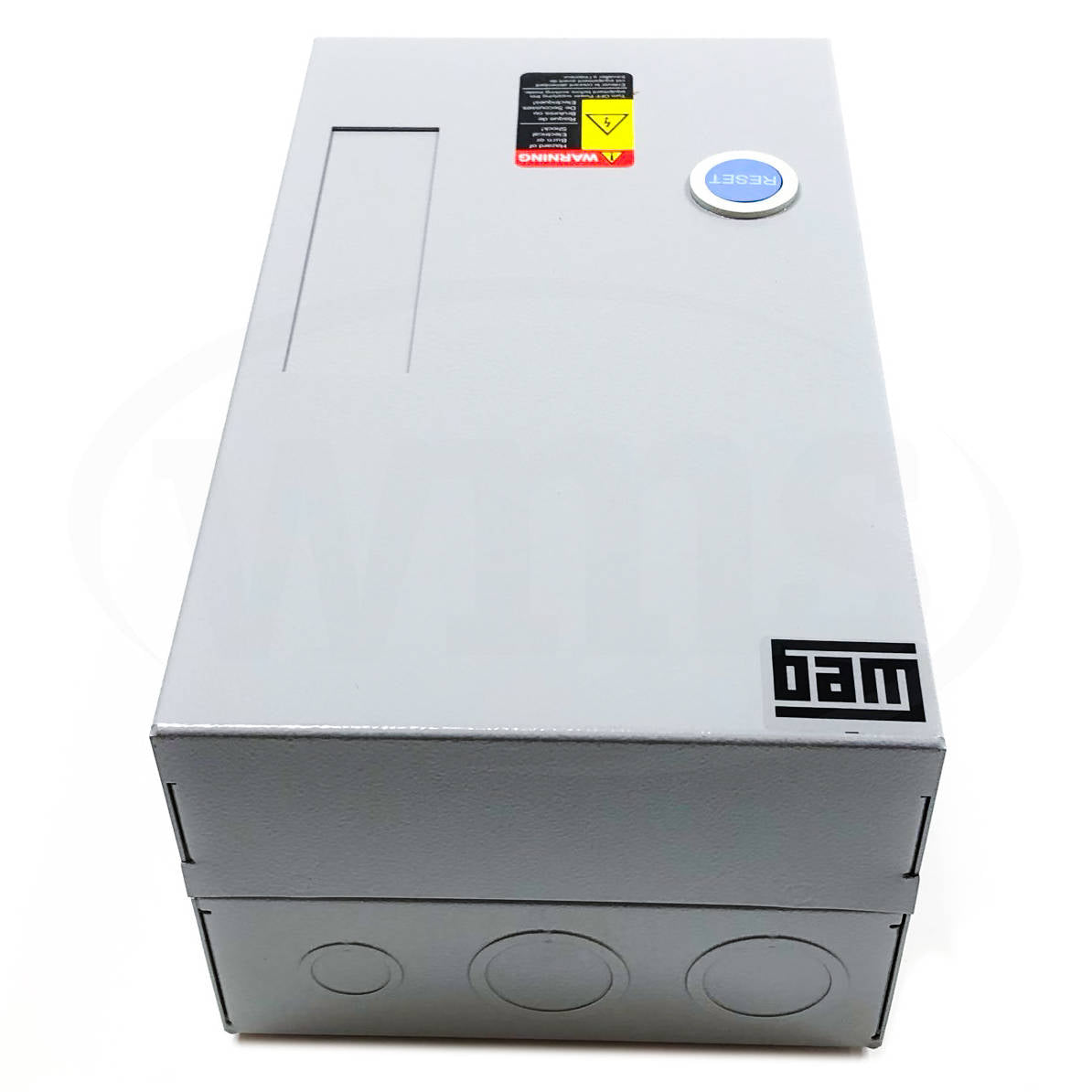

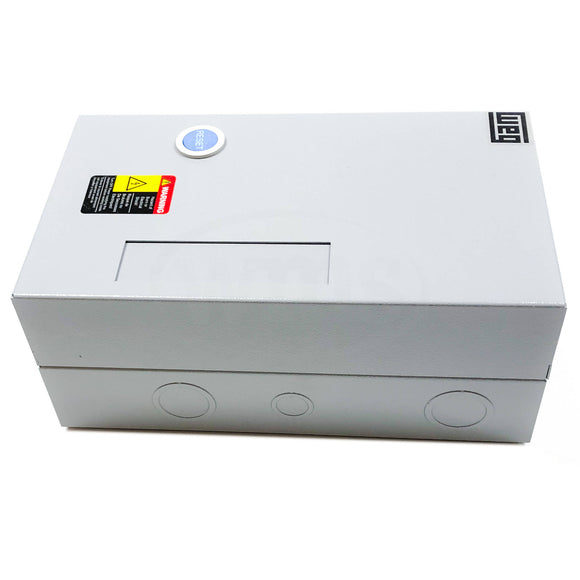

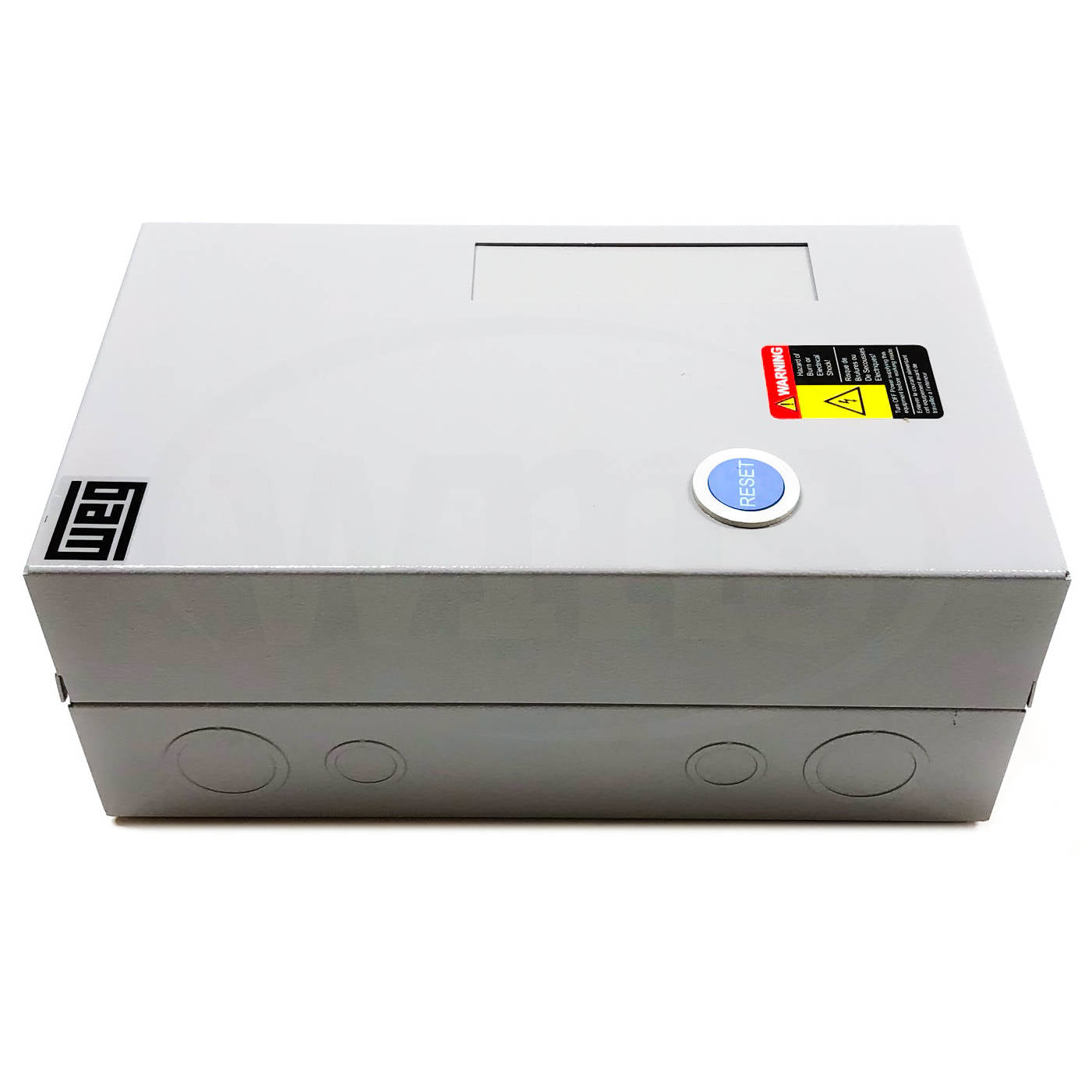

WEG enclosed magnetic starters for Compressor applications
WEG non-combination magnetic starters use WEG CWB series UL listed, HP rated, IEC contactors and overloads factory installed in a Nema 1 or Nema 4X enclosure. These starters come pre-wired for automatic pressure switch operation and are also available with a selector switch for On/Auto use. Available from ¼ to 25 HP, they are designed for years of heavy duty operation
Specifications
| Manufacturer | WEG |
|---|---|
| Catalog Number | 10724521 ESW-80V18E-R41 |
| Enclosure | NEMA 1 Metallic |
| Coil Voltage | 110VAC 50Hz 120VAC 60Hz |
| Overload Setting Range | 57 - 70 Amps |
| Max UL Horsepower | 20 HP @ 208VAC 25 HP @ 230VAC 50 HP @ 460VAC 60 HP @ 575VAC |
| Control | Reset Button |
| Box | M06 |
| Poles | 3-Pole (3-Phase) |
| Type | Non-Reversing Non-Combination Across the Line |
| UPC | 7894171770120 |
Dimensions
| H | 13.0" |
|---|---|
| W | 7.5" |
| D | 5.6" |
| Provision for Cable Gland Fitting | Top: (1) 1/2" or 3/4", (2) 1" or 1-1/4"
Bottom: (1) 1/2" or 3/4", (2) 1" or 1-1/4" Side: (3) 1/2" or 3/4", (4) 1" or 1-1/4" Back: None |
