Description

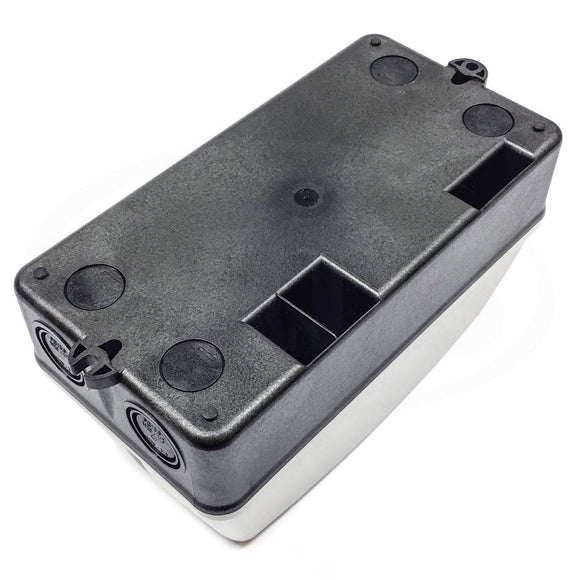

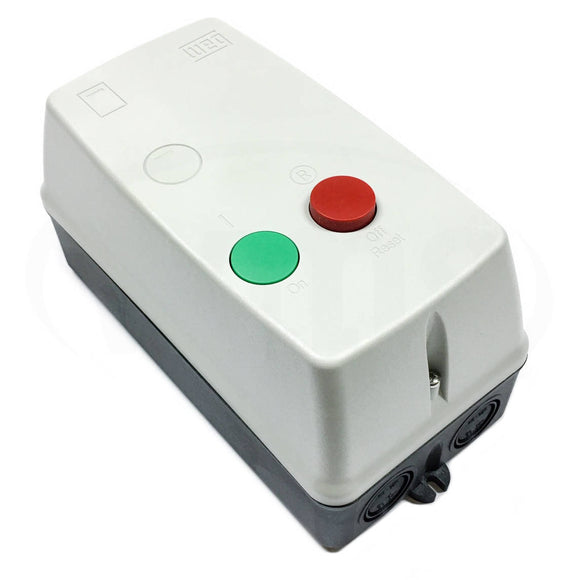

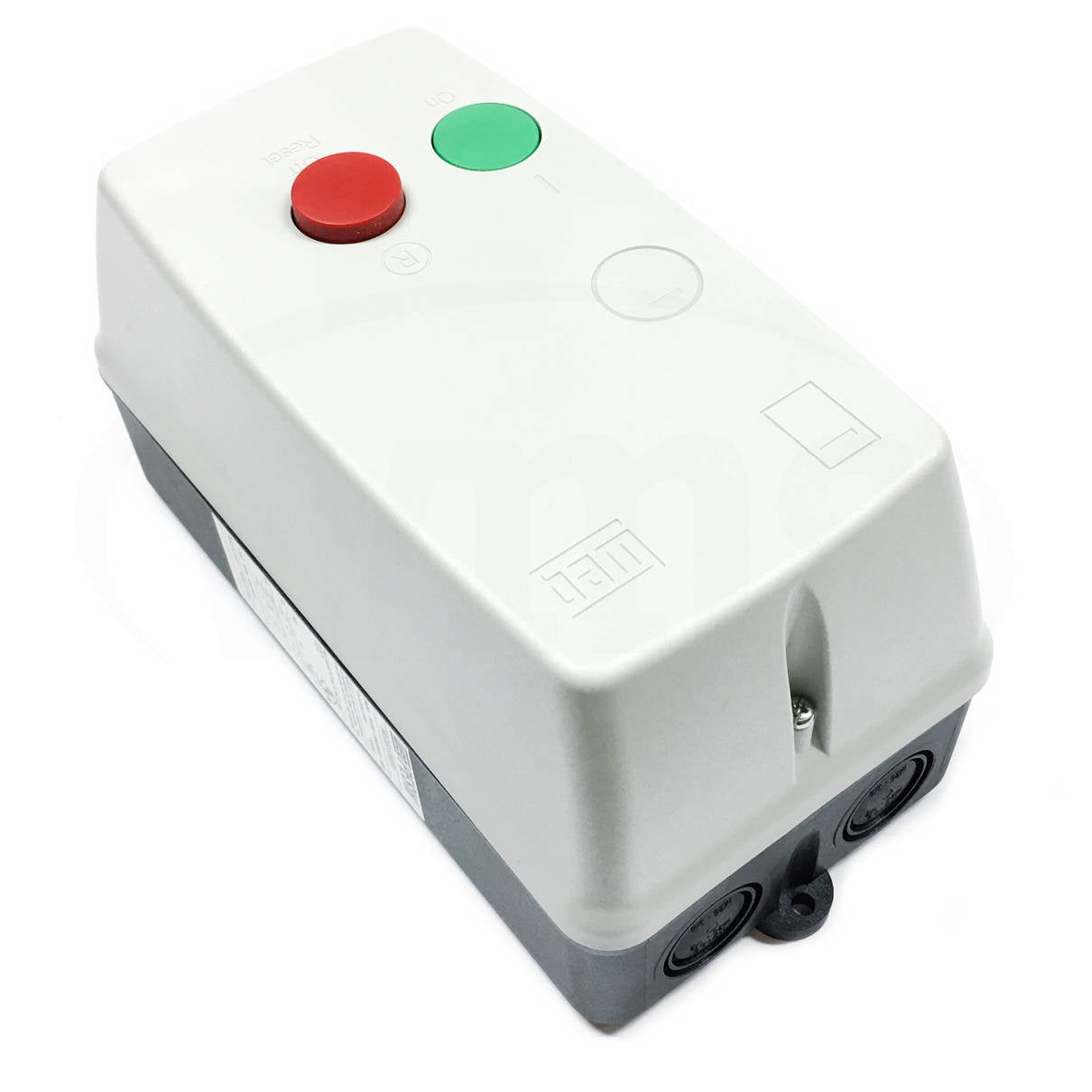

The PESW-B is WEG’s latest offering in a NEMA 4X Non Metallic Enclosure, Non-Reversing and Non-Combination Motor Starter. These starters feature components that meet IEC design standards and UL horsepower ratings while incorporating replaceable WEG CWB contactors and RW27-2D overload relays. These magnetic starters are ideal to protect and operate motors, ensuring smooth and reliable operation year after year.
Specifications
| Manufacturer | WEG |
|---|---|
| Catalog Number | PESW-B18V24AX-R67 13438780 |
| Enclosure | NEMA 4X Non-metallic |
| Coil Voltage | 180-208VAC 50Hz 208-240VAC 60Hz |
| Overload Setting Range | 15-23 Amps |
| Max UL Horsepower | |
| Control | Start + Stop/Reset Buttons |
| Box | |
| Poles | 3-Pole (3-Phase) |
| Type | Non-Reversing Non-Combination Across the Line |
| UPC | 7909322139715 |
Standard Features
- NEMA 4X Enclosure with Knockouts
- Fast Motor Acceleration and High Initial Motor Torque
- Bi-metallic Overload Relays – Class 10
- Adjustable Trip Current
- Selectable Manual or Automatic Reset
- High Horsepower in Four Compact Sizes
- Phase Loss Protection
- Ambient Temperature Compensated
- East to Setup and Install
- c UL us
Dimensions
| øA | |
|---|---|
| B | |
| C | |
| D | |
| E | |
| Provision for Cable Gland Fitting |
Manufacturer Info
| Start Type | Direct Threephase Start |
|---|---|
| Rated operational voltage | Ue=Uc |
| Supply voltage | 180-208V 50Hz / 208-240V 60Hz |
| Starter key operation | A-On-Off Button |
| Degree of protection | TYPE4X |
| STARTERS COMPLEMENTS | Does Not Contain |
|---|---|
| NOMINAL RATED CURRENT (AC-3) | 18A (B) |
| OVERLOAD RELAY | RW27-2D3-U023 |
| MEASURING TOOL AND ACCESSORIES | Not Applicable |
| Connection Type | Not Applicable |
