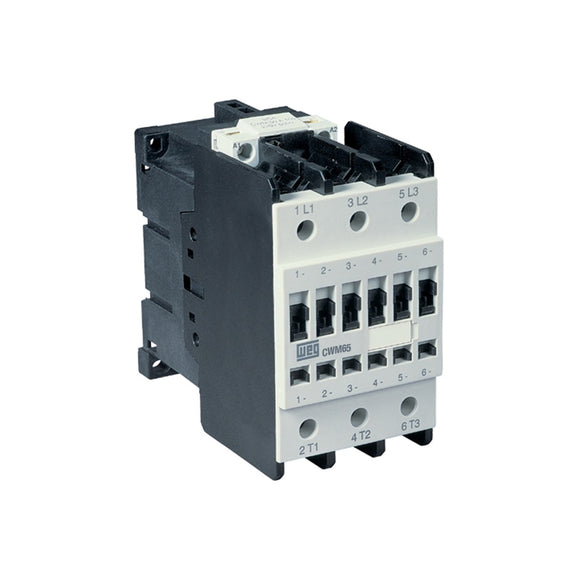

CWM65-00-20V18 WEG IEC Contactor, 65 Amp, 2 NO Power Poles-1

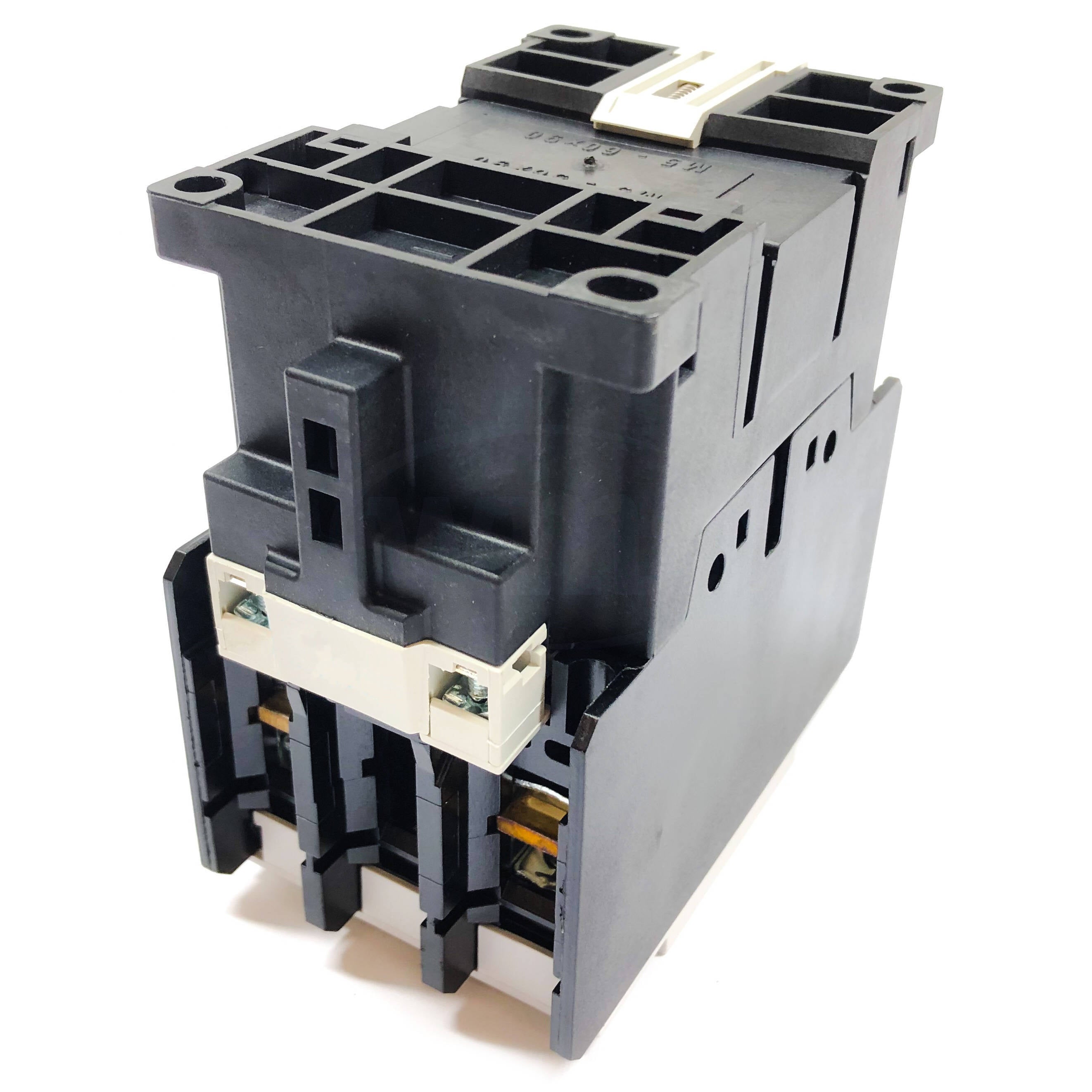

CWM65-00-20V18 WEG IEC Contactor, 65 Amp, 2 NO Power Poles-2

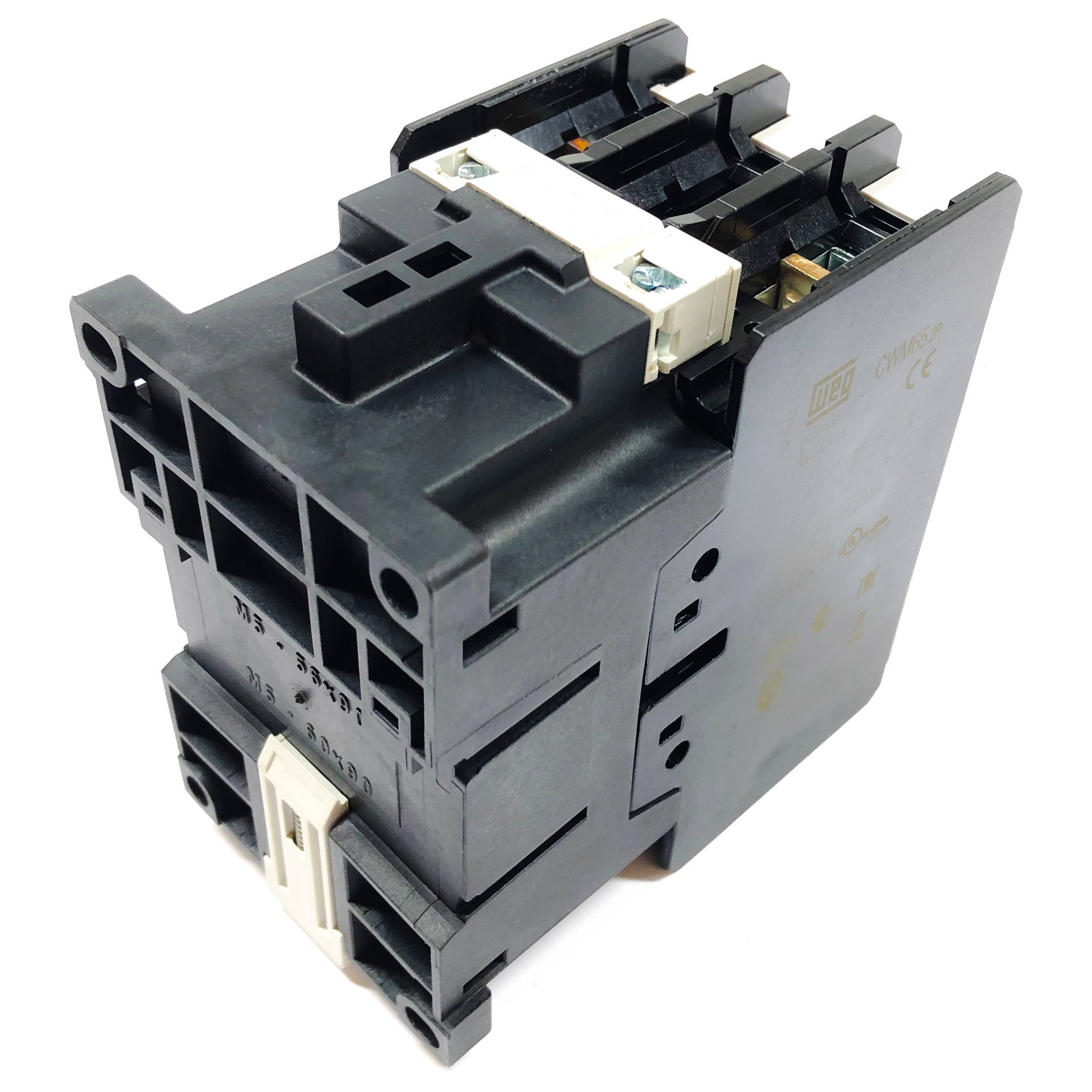

CWM65-00-20V18 WEG IEC Contactor, 65 Amp, 2 NO Power Poles-3

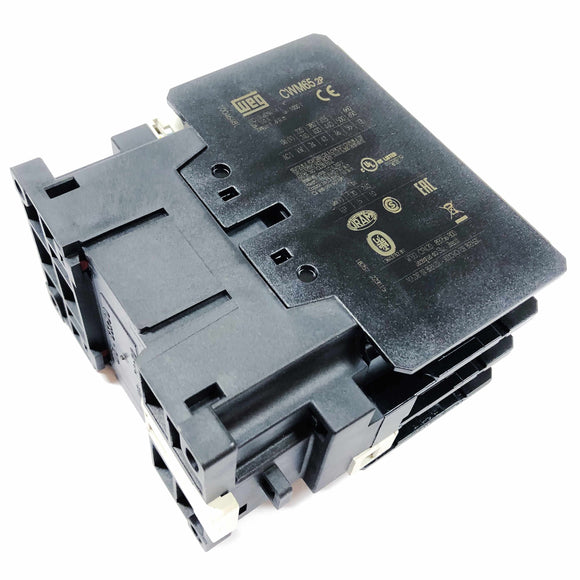

CWM65-00-20V18 WEG IEC Contactor, 65 Amp, 2 NO Power Poles-4

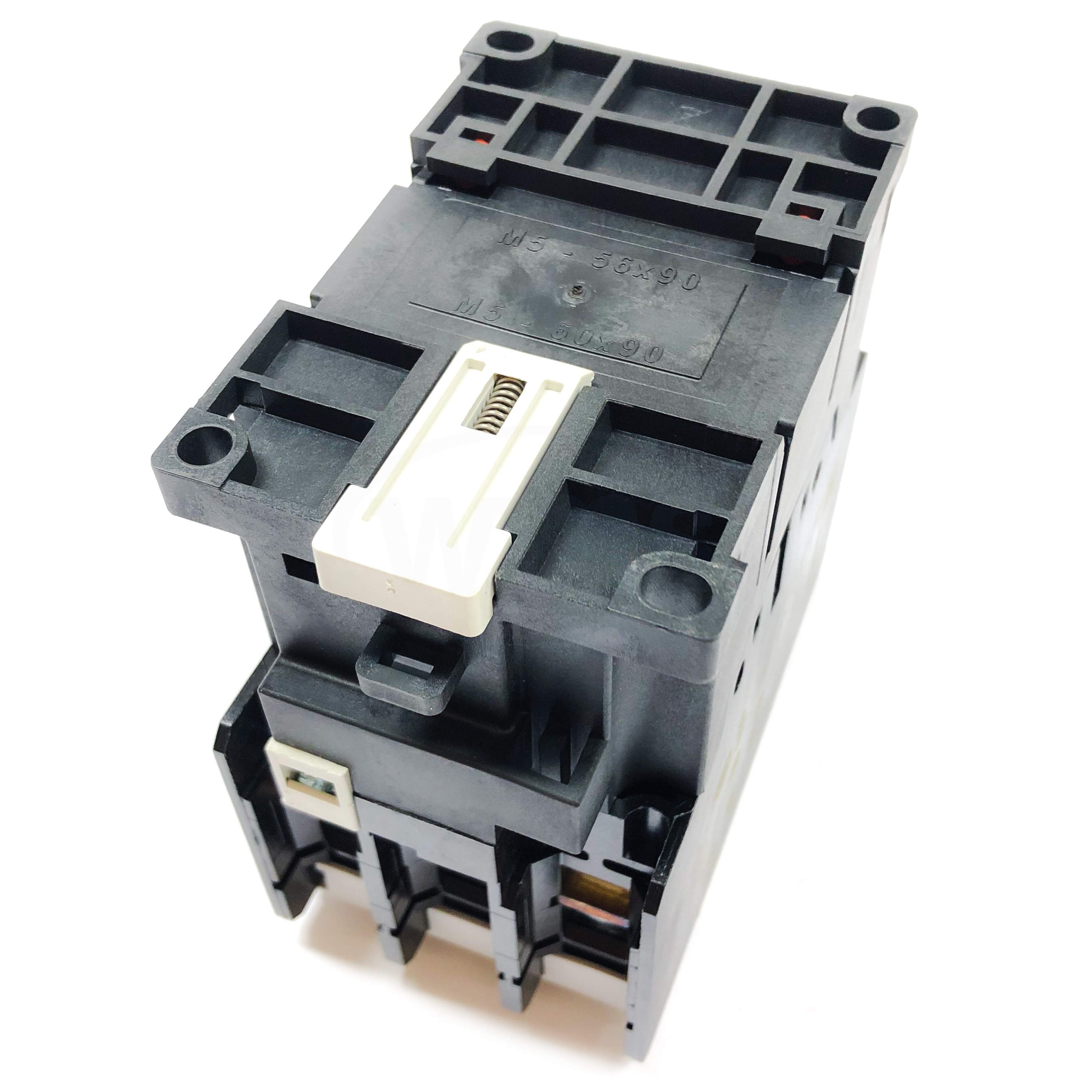

CWM65-00-20V18 WEG IEC Contactor, 65 Amp, 2 NO Power Poles-5

CWM65-00-20V18 WEG IEC Contactor, 65 Amp, 2 NO Power Poles

$200.00

Shipping calculated at checkout

WEG Electric Corporation SKU: CWM65-00-20V18 Barcode: 7894171707188

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
MECHANICAL LIFESPAN AC 10 million
MECHANICAL LIFESPAN DC 10 million
Electrical lifespan 1,3 million
Degree of protection IP (IEC 60529) - Main circuit IP10
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current In - AC-3 (Ue = 440 V) 65 A
Rated current In - AC-4 30 A
Rated operational Current Ie AC-1 (¿ = 55 ºC) 110 A
Rated operational voltage Ue - IEC 60947-4-1 1000 V
Rated operational voltage Ue - UL/CSA 600 V
Height 116.5 mm (4.59 in)
Width 66 mm (2.60 in)
Depth 116 mm (4.57 in)
Gross weight 11.6 kg
