Description :

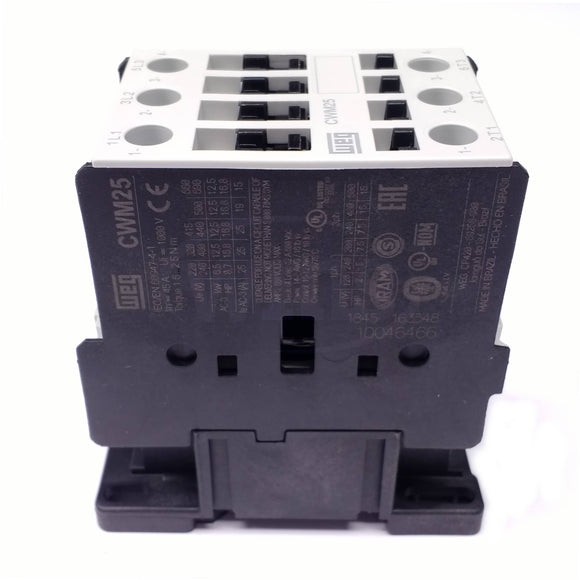

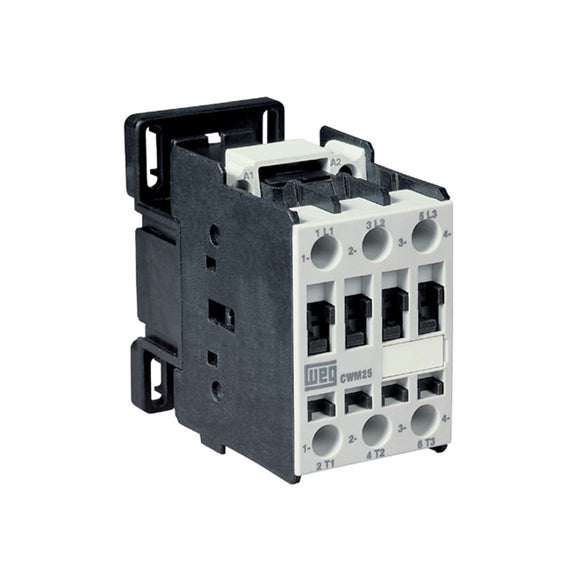

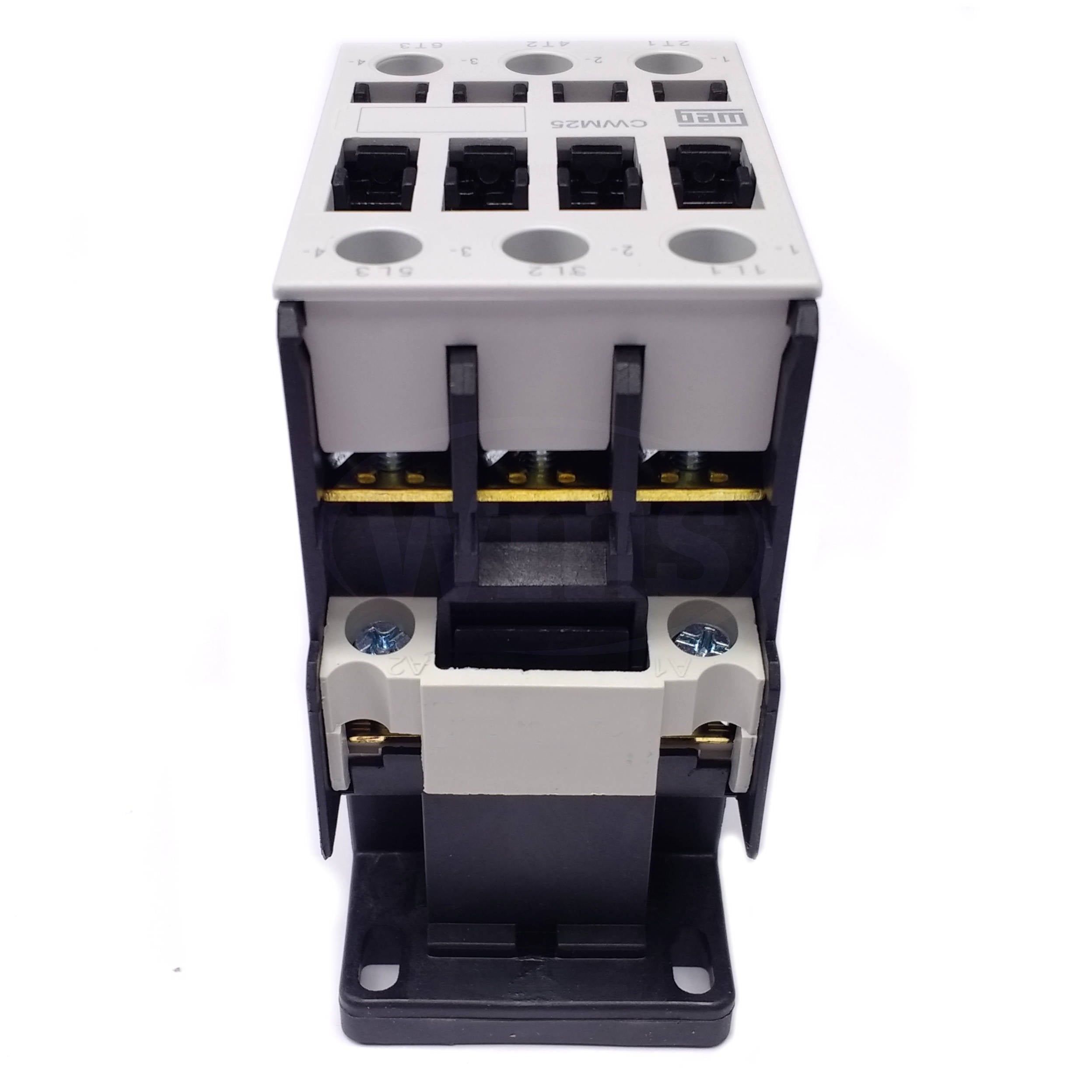

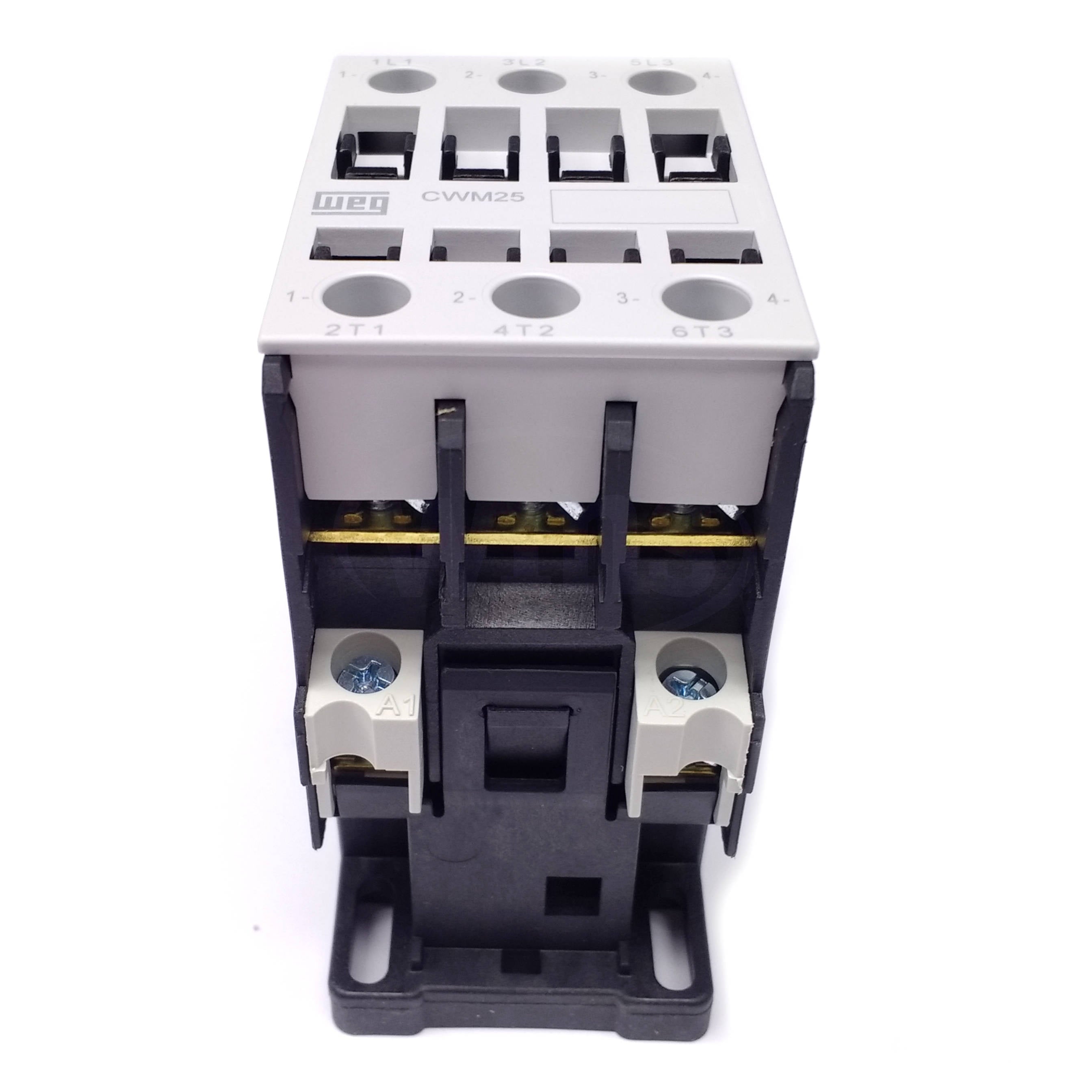

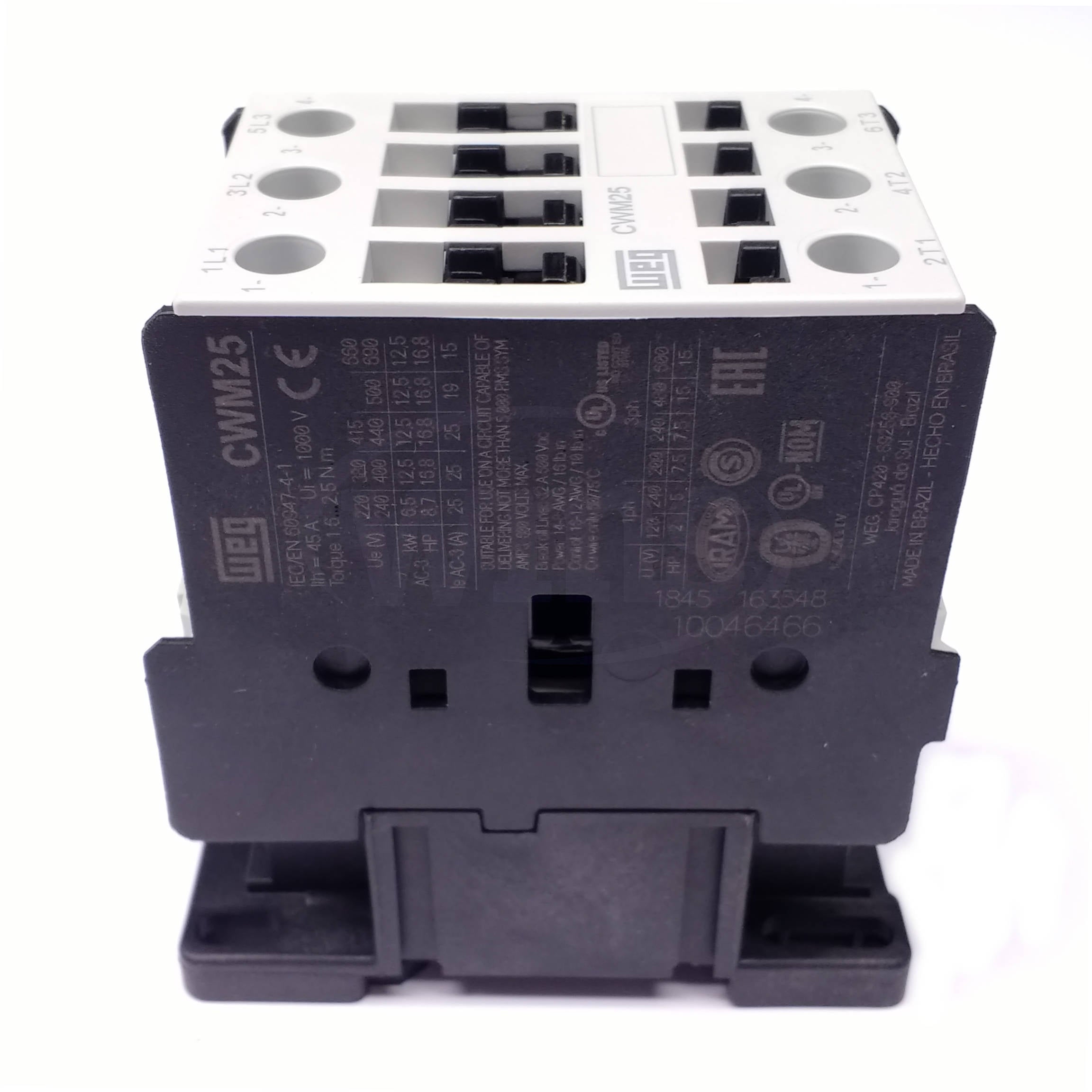

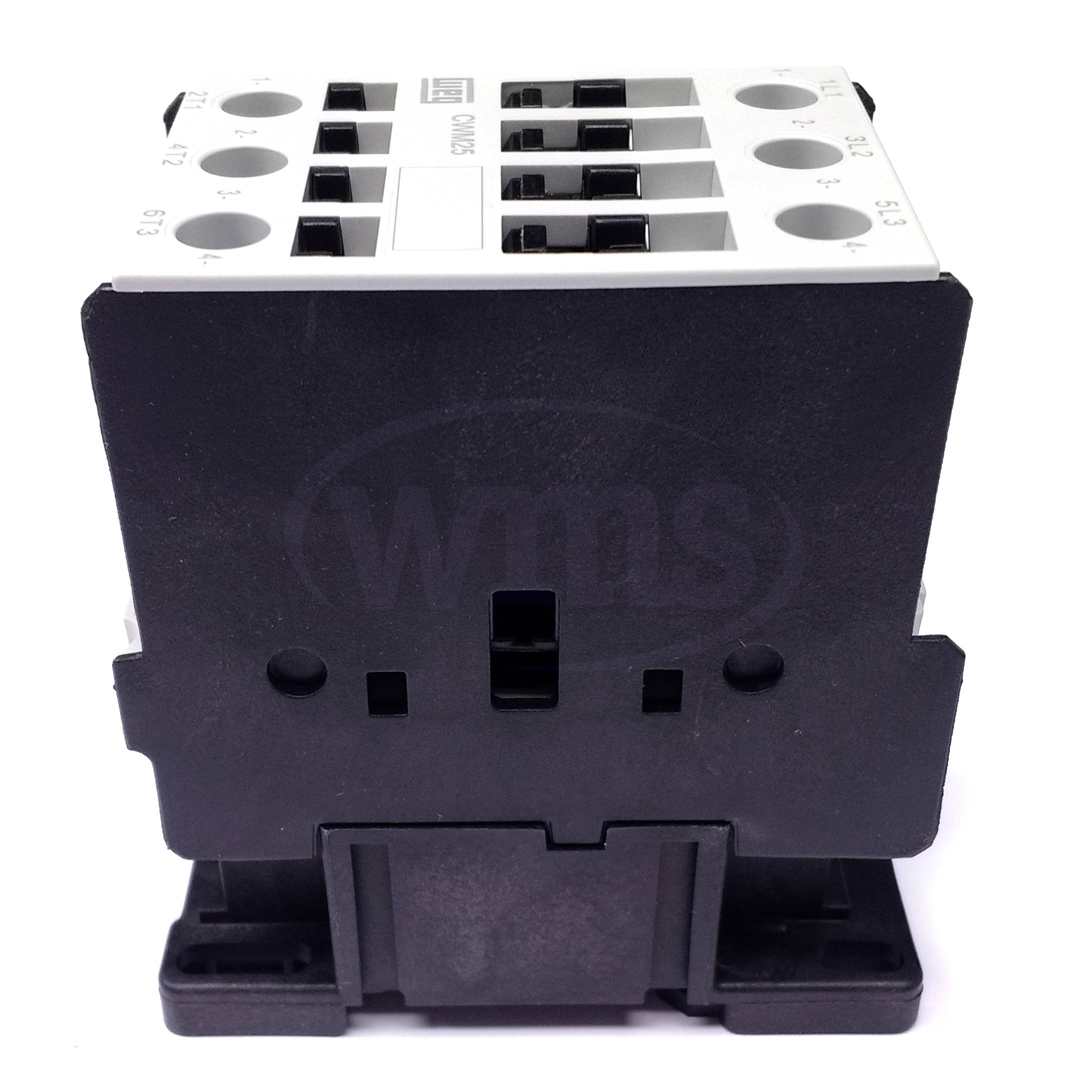

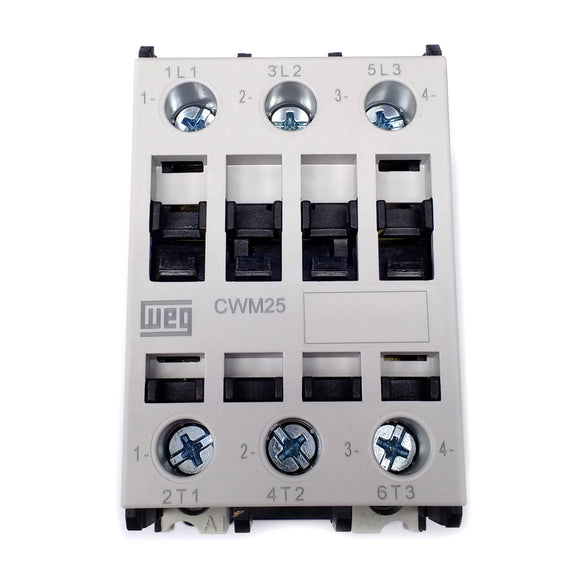

The CWM Series IEC Contactor was designed as a general purpose contactor taking into consideration the heavy demands and need for high reliability in modern industry. They are rated for inductive loads up to 800 AMPS @ 460V. CWM Contactors are compact in frame size allowing for optimization of valuable internal space within electrical enclosures. Reducing inventory is a “Snap” away with the CWM Series’ common accessories.
Standard Features :
- Panel mountable or 35mm DIN Rail
- Front and Side Mounting Auxiliary Contacts
- Finger-Touch IP20 Protection
- Wide Coil Voltage Protection AC or DC
- Mirror Contacts for “Safety-Related” Applications
- Mechanically linked Auxiliary Contacts
Overview :
| Brand | WEG |
|---|---|
| Catalog Number(s) | CWM25-00-30V37 |
| Type | CWM25 |
| Auxiliary Contacts | N/A |
| Current Rating | 25 Amps |
| Coil Voltage | 277VAC 60Hz |
| Power Poles | 3 |
| Operating Temperature | -25 to +55°C -13 to +131°F |
| Terminals | Screwdriver – Philips #2 14.2-26.6 lb-in (1.6-3Nm) |
| Terminal Capacity | Top: 2X18-12 AWG or Bottom: 2X12-8 AWG |
| UPC | 7894171679898 |
| Weight | 0.65 lbs |

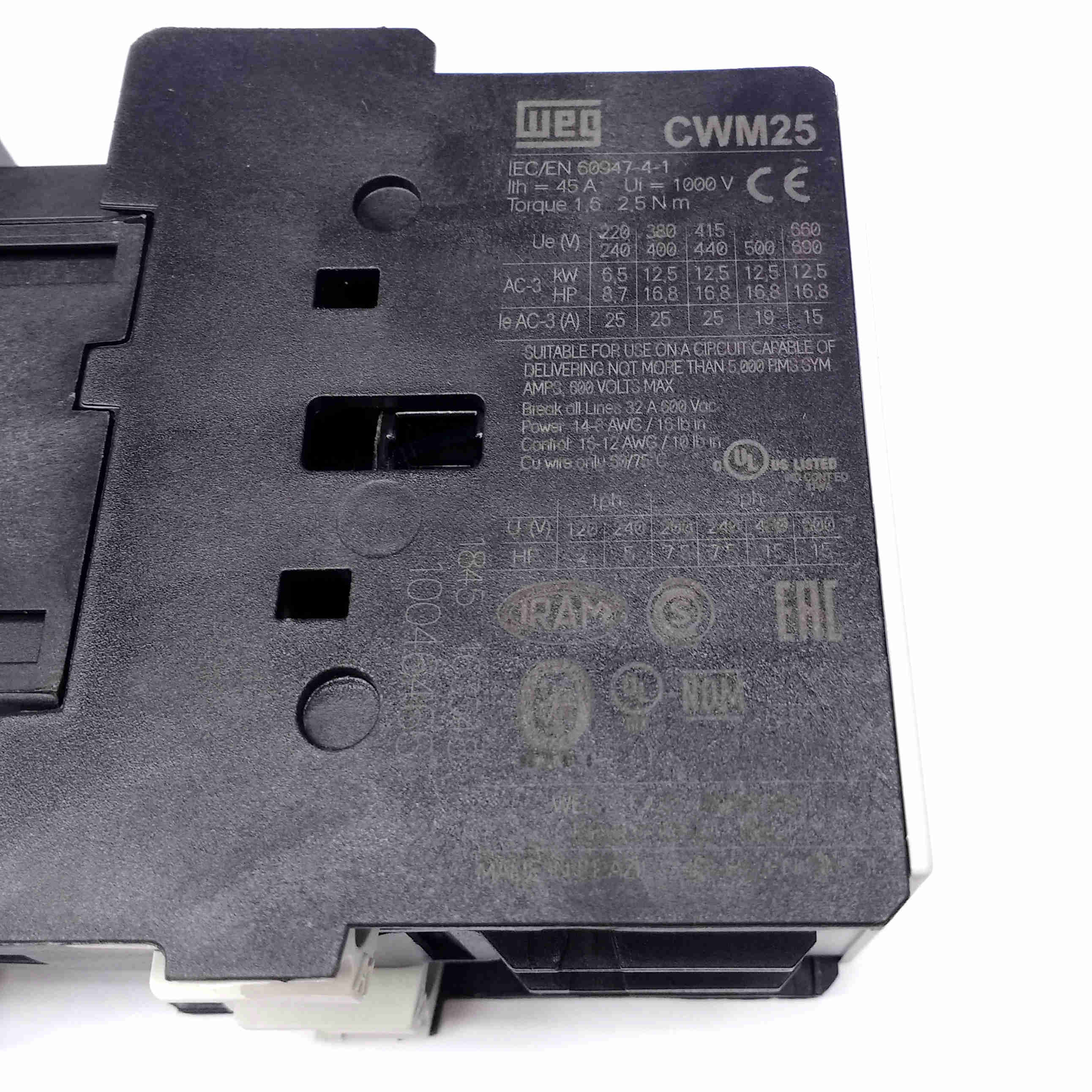

Standard UL/CSA Ratings :
| Rated Operating Voltage | 600 Volts |
|---|---|
| General Purpose Amp Rating (AC-1) | 32 Amps |
| Rated Operational Power, Single Phase, Full Voltage 50/60Hz | 2 HP or 24 Amps @ 115VAC 5 HP or 28 Amps @ 230VAC |
| Rated Operational Power, Three Phase, Full Voltage 50/60Hz | 7.5 HP or 25 Amps @ 200VAC 7.5 HP or 22 Amps @ 230VAC 15 HP or 21 Amps @ 460VAC 15 HP or 17 Amps @ 575VAC |
| Short Circuit Rating | 5 kA @ 600V |
Standard IEC Ratings (IEC EN 60947) :
| Rated Operating Voltage | 690 Volts |
|---|---|
| Rated Thermal Current Ith | 45 Amps |
| Rated Operational Power, Three Phase, AC-3, 50/60Hz | 7.5kW or 25 Amps @ 220-240V 11kW or 25 Amps @ 380-400V 11kW or 25 Amps @ 415-440V 15kW or 19 Amps @ 500V 15kW or 15 Amps @ 660-690V |
| Maximum Switch Rate | AC-1: 1,200 ops/hr AC-3: 1,200 ops/hr No Load: 9,000 ops/hr |
| AC-4 (200,000 Operations; 50/60Hz) | 3kW/4HP @ 220-230V 5.5kW/7.5HP @ 380-400V 5.5kW/7.5HP @ 415-440V 7.5kW/10HP @ 500V 7.5kW/10HP @ 660-690V 12 Amps @ ≥ 690V |
| Breaking Capacity | Ue=400V: 450 Amps Ue=500V: 320 Amps Ue=690V: 170 Amps |
| Impedance Per Pole | 1.65 mW |
| Power Dissipation per Pole | AC-1: 3.34 W AC-3: 1.03 W |
| Short Time Current Icw | 1 Second: 630 Amps 5 Seconds: 280 Amps 10 Seconds: 200 Amps 30 Seconds: 115 Amps 1 Minute: 80 Amps 3 Minutes: 50 Amps Rec. Time: 10 minutes |
| Short Circuit Coordination | Coordination Type “1”: 63 gL/gG Coordination Type “2”: 50 gL/gG Acc. To UL/CSA: 45 J Type |
Control Circuit Ratings – AC Coil :
| Rated Insulation Voltage (Ui) | IEC; VDE 0660: 1000 Volts UL; CSA: 600 Volts |
|---|---|
| Rated Operating Voltage (Ue) | IEC; VDE 0660: 690 Volts UL; CSA: 600 Volts |
| Coil Operating Limits | Pick-up xUc: 0.4-0.76 Drop-out xUc: 0.25-0.65 |
| Operating Time | Coil Energization – N.O.: 8-20 ms Coil de-energization – N.O.: 6-13 ms |
| Coil Consumption | Sealed: 4-7.2 VA Inrush: 70 VA |
| Thermal Power Dissipation | 60Hz: 2.6 W |
| Power Factor | Closed: 0.28 Cos phi Opened: 0.85 Cos phi |
| Stranded / Solid (UL / CSA) | 2x12-10 AWG |
