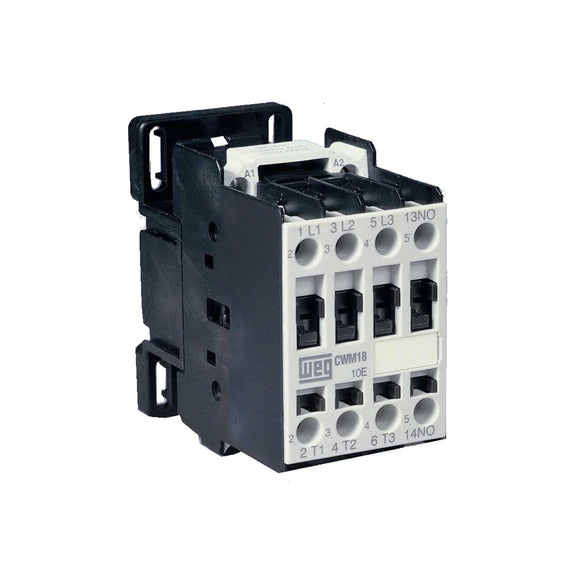

CWM18-01-30V10 WEG IEC Contactor, 18 Amp, 3 NO Power Poles

$103.00

Shipping calculated at checkout

WEG Electric Corporation SKU: CWM18-01-30V10 Barcode: 7890355066348

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
MECHANICAL LIFESPAN AC 10 million
MECHANICAL LIFESPAN DC 12 million
Electrical lifespan 1,2 million
Degree of protection IP (IEC 60529) - Main circuit IP20
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current In - AC-3 (Ue = 440 V) 18 A
Rated current In - AC-4 8 A
Rated operational Current Ie AC-1 (¿ = 55 ºC) 32 A
Rated operational voltage Ue - IEC 60947-4-1 690 V
Rated operational voltage Ue - UL/CSA 600 V
Height 81 mm (3.19 in)
Width 45 mm (1.77 in)
Depth 87 mm (3.43 in)
Gross weight 300 g
