Standard Features:
- Manual Reset Protector
- High Efficiency Dual Cap Design
- High Quality Molded Gaskets
- Over 300% Starting Torque
- Cast Iron End Bells
- Dual Oversized Ball Bearings
- Dependable Mechanical Starting Switch
- 18 Month Warranty
Electrical Data:
| Manufacturer | Techtop |
|---|---|

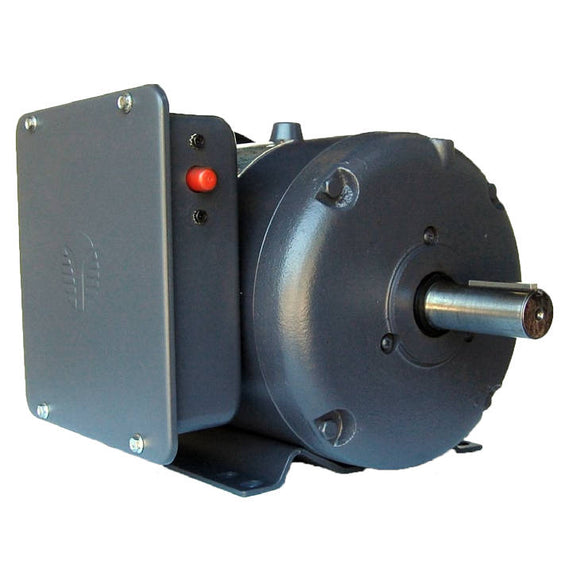

| Part Number | RD1RSTF182T4BB3 RD1-RS-TF-182T-4-B-B-3 |
| Horsepower | 3.0 HP |
| Speed | 1740 RPM |
| Voltage | 208-230V |
| Phase | Single (1) |
| Full Load Amps | 14.3-12.9 A |
| Power Factor | 0.93 |
| Nominal Efficiency | 80.0 % |
| Service Factor | 1.15 |
| KVA Code | H |
| LRC @ 60Hz HV | 90.4247 |
| Start Capacitor | SCAP350V-250UF |
| Run Capacitor | RCAP450V-20UF |
| Number of Leads | 5 |
General Data:
| Frame Size | 182T |
|---|---|
| Frame Enclosure | TEFC |
| Mounting | Rigid |
| Insulation Class | F |
| Duty | Continuous / S1 |
| NEMA Design | L |
| Frame Material | Rolled Steel |
| Ingress Protection | IP54 |
| Cable Entry | 1.1” |
| Double Drilled | True |
| Paint Color | Graphite Gray |
| Paint RAL | 7024 |
| Weight | 92.0 lbs |
Torque Values:
| Locked Rotor | 38.8067 lb-ft 437.0 % FLT |
|---|---|
| Pull-Up | 19.6253 lb-ft 221.0 % FLT |
| Breakdown | 21.135 lb-ft 238.0 % FLT |
| Full Load | 8.88025 lb-ft 100.0 % FLT |
