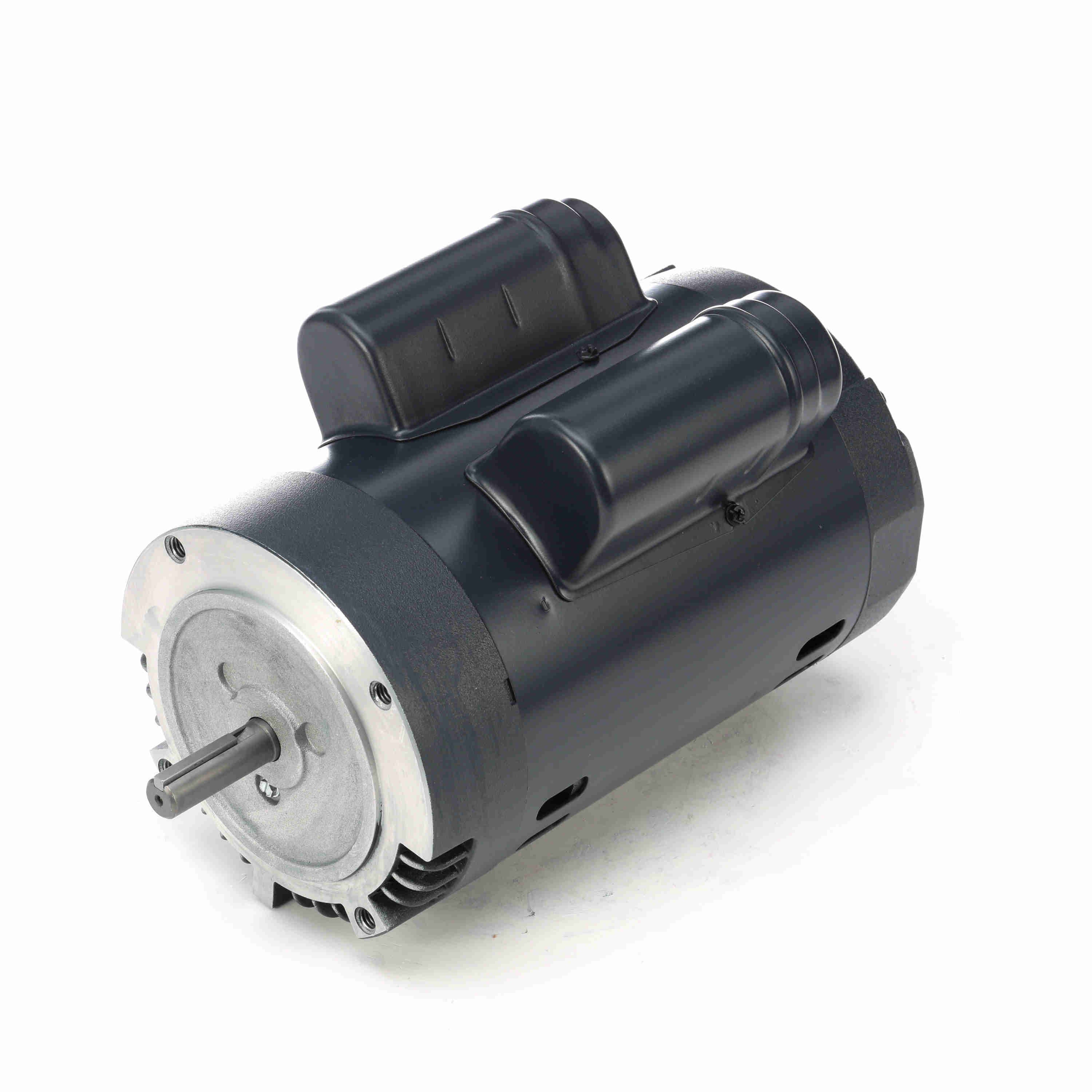

Features
- Durable rolled steel construction
- NEMA design B performance
- Meets or exceeds NEMA service factors
- Double shielded ball bearings
- Continuous duty
- Thermally protected ratings
- UL recognized component listing and CSA certified
General Specifications
| UPC: | 691720041376 | Weight: | 30.00 LB |
| Packaged Length: | 15.81 IN | Packaged Width: | 7.87 IN |
| Packaged Height: | 10.81 IN |
Nameplate Specifications
| Output HP: | 0.75 Hp | Output KW: | 0.56 kW |
| Frequency: | 60 Hz | Voltage: | 115/230 V |
| Current: | 6.6/3.3 A | Speed: | 1725 rpm |
| Service Factor: | 1.25 | Phase: | 1 |
| Efficiency: | 81.8 % | Power Factor: | 97 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | L | KVA Code: | L |
| Frame: | 56C | Enclosure: | Drip Proof |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 22 |
Technical Specifications
| Electrical Type: | Capacitor Start Capacitor Run | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Selective Counterclockwise |
| Resistance Main: | 1.9 Ohms | Mounting: | Round |
| Motor Orientation: | HORIZONTAL | Drive End Bearing: | BALL |
| Opp Drive End Bearing: | BALL | Frame Material: | Rolled Steel |
| Shaft Type: | NEMA 56 | Overall Length: | 13.15 in |
| Frame Length: | 7.63 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 1.88 in | Assembly/Box Mounting: | F1 Only |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 30.60 | 0.0 | 152.00 | 0.0 | 0 | 0.00 | 0.0 | 0.75 |
| Break-Down | 0.00 | 0.0 | 132.30 | 0.0 | 1,555 | 0.00 | 0.0 | 0.75 |
| Pull-Up | 0.00 | 0.0 | 152.00 | 0.0 | 0 | 0.00 | 0.0 | 0.75 |
Load Characteristics
| % of Rated Load | 100 % | 115 % | 125 % |
| Current (Amps) | 3.30 | 4.75 | 5.10 |
| Rated Output (KW) | 0.94 | 1.06 | 1.15 |
| Efficiency (%) | 81.8 | 80.5 | 81.0 |
| Power Factor (%) | 97.0 | 97.3 | 97.0 |
| Speed (RPM) | 1,760 | 1,750 | 1,745 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 |
| Torque (ft-lbs) | 48.00 | 55.20 | 60.00 |
