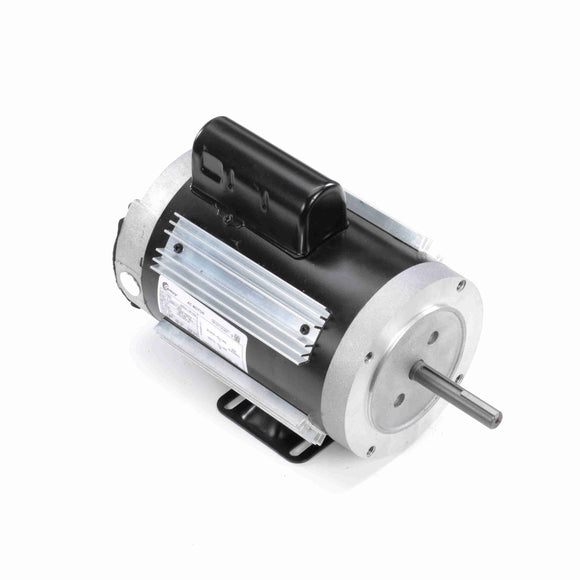

C783 Century 1HP Direct Drive Fan Electric Motor, 900RPM

$636.97 USD $1,589.00 USD Save $952.03 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: C783 Barcode: 786674016898

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Double sealed ball bearings
  • Fully gasketed
  • Auto protector

General Specifications

UPC: 786674016898 Weight: 44.00 LB
Packaged Length: 19 IN Packaged Width: 8 IN
Packaged Height: 11 IN

Nameplate Specifications

Output HP: 1.0 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 230 V
Current: 5.1/5.1 A Speed: 850/725 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: P56CZ Enclosure: Totally Enclosed Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage Starting Method: Across The Line
Poles: 8 Rotation: Counterclockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 14.22 in
Frame Length: 8.00 in Shaft Diameter: 0.625 in
Shaft Extension: 3.25 in
