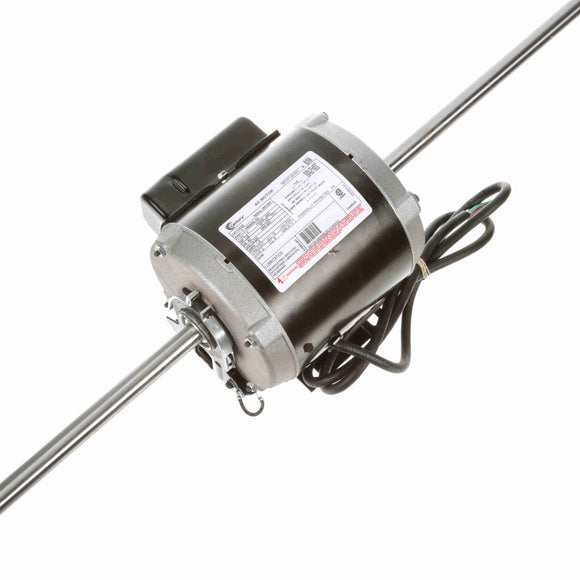

C035 Century 1/6HP Special Purpose Electric Motor, 800RPM

$1,474.59 USD $2,587.00 USD Save $1,112.41 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: C035 Barcode: 786674015037

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • Single speed
  • Capacitor included

General Specifications

General Specifications
Model : Catalog No : C035
Part Description : 1/6,800,TEAO,56Z,1/60/230 Category : OEM Replacement
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 1/6 HP Output KW : 0.13 kW
Frequency : 60 Hz Voltage : 230 V
Current : 1.6 A Speed : 800 RPM
Service Factor : 1 Phase : 1
Duty : Continuous Insulation Class : B
Frame : J56Z Enclosure : Totally Enclosed Air Over
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Permanent Split Capacitor, Single Or Dual Voltage Starting Method : Across The Line
Poles : 8 Rotation : Clockwise
Mounting : Cushion Base Drive End Bearing : Ball
Opp Drive End Bearing : Ball Frame Material : Rolled Steel
Shaft Type : Special Extension Overall Length : 49.26 in
Frame Length : 5.13 in Shaft Diameter : 0.749 in
Shaft Extension : 20.44 in UPC : 786674015037
Weight : 45.00 LB

Speed & Load Characteristics
