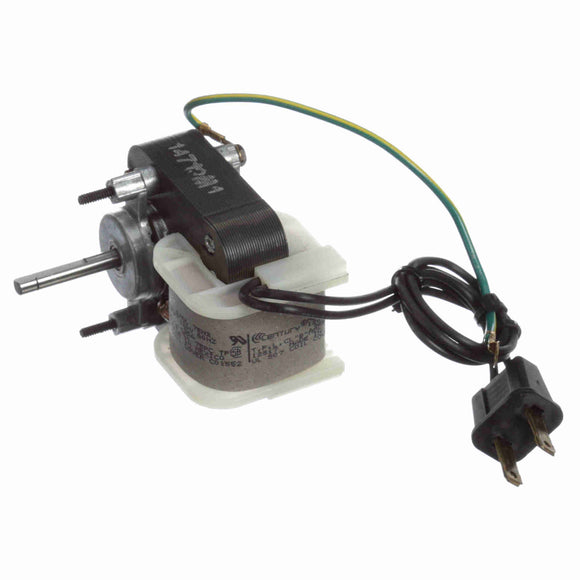

BR0675 Century C-Frame / Skeleton Electric Motor, 7/8" STACK HP

$40.97 USD $76.00 USD Save $35.03 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: BR0675 Barcode: 786674014504

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • OEM Direct Replacement Motor
  • C-Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • .217" Diameter Shaft with Flat
  • 6.9" Leads with Molded Plug
  • Extended Studs Opposite Lead End

General Specifications

General Specifications
Model : Catalog No : BR0675
Part Description : MODEL-SFHP-C-FR Category : C-Frame / Skeleton
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 7/8" STACK Frequency : 60 Hz
Voltage : 120 V Current : 1.4 A
Speed : 2850 RPM Service Factor : 1
Phase : 1 Duty : Continuous Air Over
Insulation Class : B Frame : C-FRAME
Enclosure : Open Air Over Overload Protector : Automatic
Ambient Temperature : 40 °C UL : Recognized
CSA : Y CE : N

Technical Specifications

Technical Specifications
Electrical Type : Shaded Pole Starting Method : Induction Run
Poles : 2 Rotation : Counterclockwise
Mounting : Bracket Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve Frame Material : Na
Shaft Type : Flat Shaft Diameter : 0.217 in
Shaft Extension : 1.2 in UPC : 786674014504
Weight : 2.00 LB

Speed & Load Characteristics
