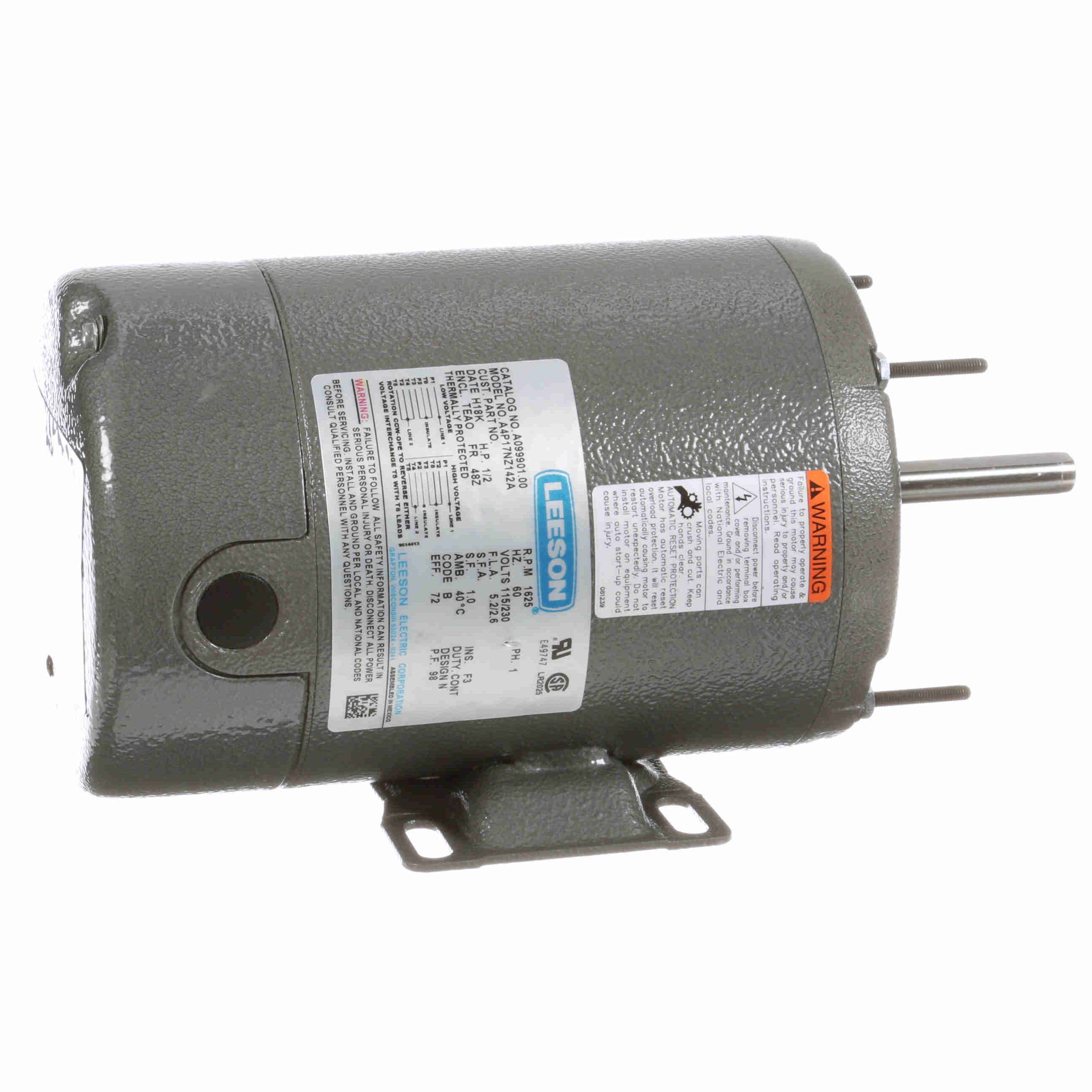

A099901.00 Leeson 1/2HP Agricultural Duty Electric Fan Motor, 1800RPM-1

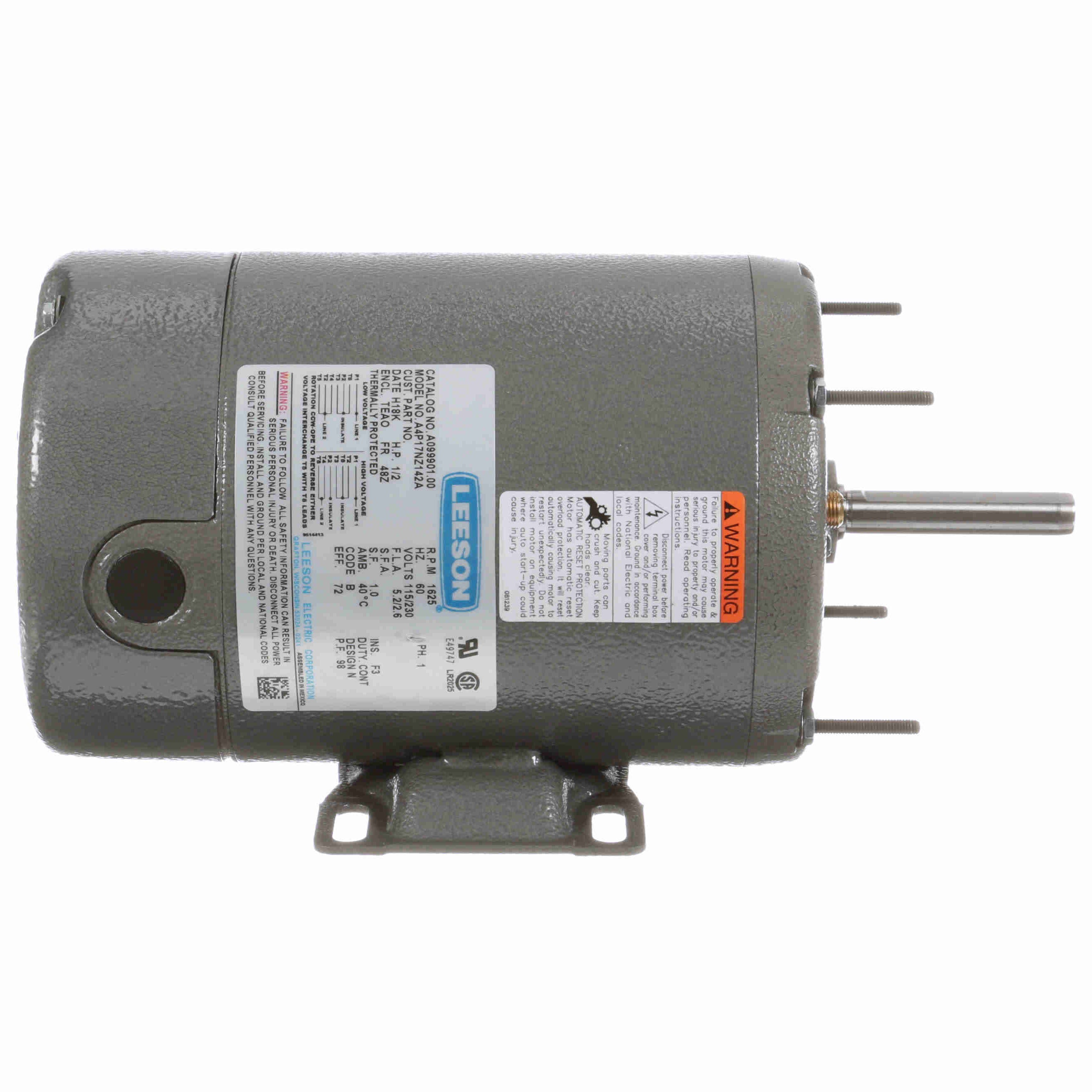

A099901.00 Leeson 1/2HP Agricultural Duty Electric Fan Motor, 1800RPM-2
A099901.00 Leeson 1/2HP Agricultural Duty Electric Fan Motor, 1800RPM-3
A099901.00 Leeson 1/2HP Agricultural Duty Electric Fan Motor, 1800RPM-4

A099901.00 Leeson 1/2HP Agricultural Duty Electric Fan Motor, 1800RPM

$764.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: A099901.00 Barcode: 691720103029

30 Day
Return Policy

Ships Fast
in 24 hours

Sold Out

Features

  • Water-tight connection end compartment
  • Locked double sealed ball bearings
  • All angle mounting
  • Shaft seal on output shaft end
  • Automatic overload protected

General Specifications

UPC: 691720103029 Weight: 20.00 LB
Packaged Length: 13.75 IN Packaged Width: 7.88 IN
Packaged Height: 8.75 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 5.2/2.6 A Speed: 1625 rpm
Service Factor: 1 Phase: 1
Efficiency: 72 % Power Factor: 98
Duty: Continuous Insulation Class: F
Design Code: N KVA Code: B
Frame: 48Z Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Lock Rotor Only Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid - Extended Studs
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 10.89 in
Frame Length: 5.50 in Shaft Diameter: 0.500 in
Shaft Extension: 2.24 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 5.10 236.0 46.10 178.0 1,315 1.12 0.0 0.50
Locked-Rotor 7.50 347.0 16.20 63.0 0 1.53 0.0 0.50
Pull-Up 7.80 361.0 16.40 63.0 34 1.54 0.0 0.50
Full Load 2.16 100.0 25.86 100.0 1,660 0.50 0.0 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 %
Current (Amps) 0.75 1.05 1.40 1.80 2.60 3.04
Rated Output (KW) 0.13 0.21 0.30 0.40 0.50 0.67
Efficiency (%) 0.0 44.7 62.0 70.0 72.0 70.3
Power Factor (%) 74.2 86.5 93.2 96.1 98.0 95.1
Speed (RPM) 1,800 1,755 1,718 1,678 1,660 1,559
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 5.99 12.20 18.70 25.86 33.80
