Features
Features
- Water-tight connection end compartment
- Locked double sealed ball bearings
- All angle mounting
- Shaft seal on output shaft end
- Automatic overload protected
General Specifications
General Specifications

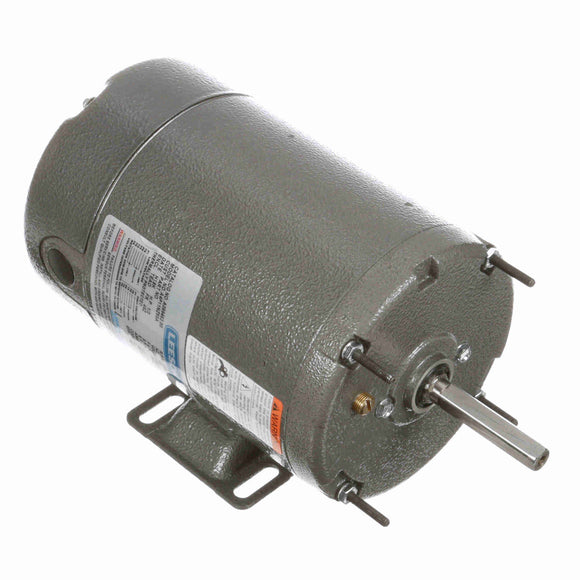

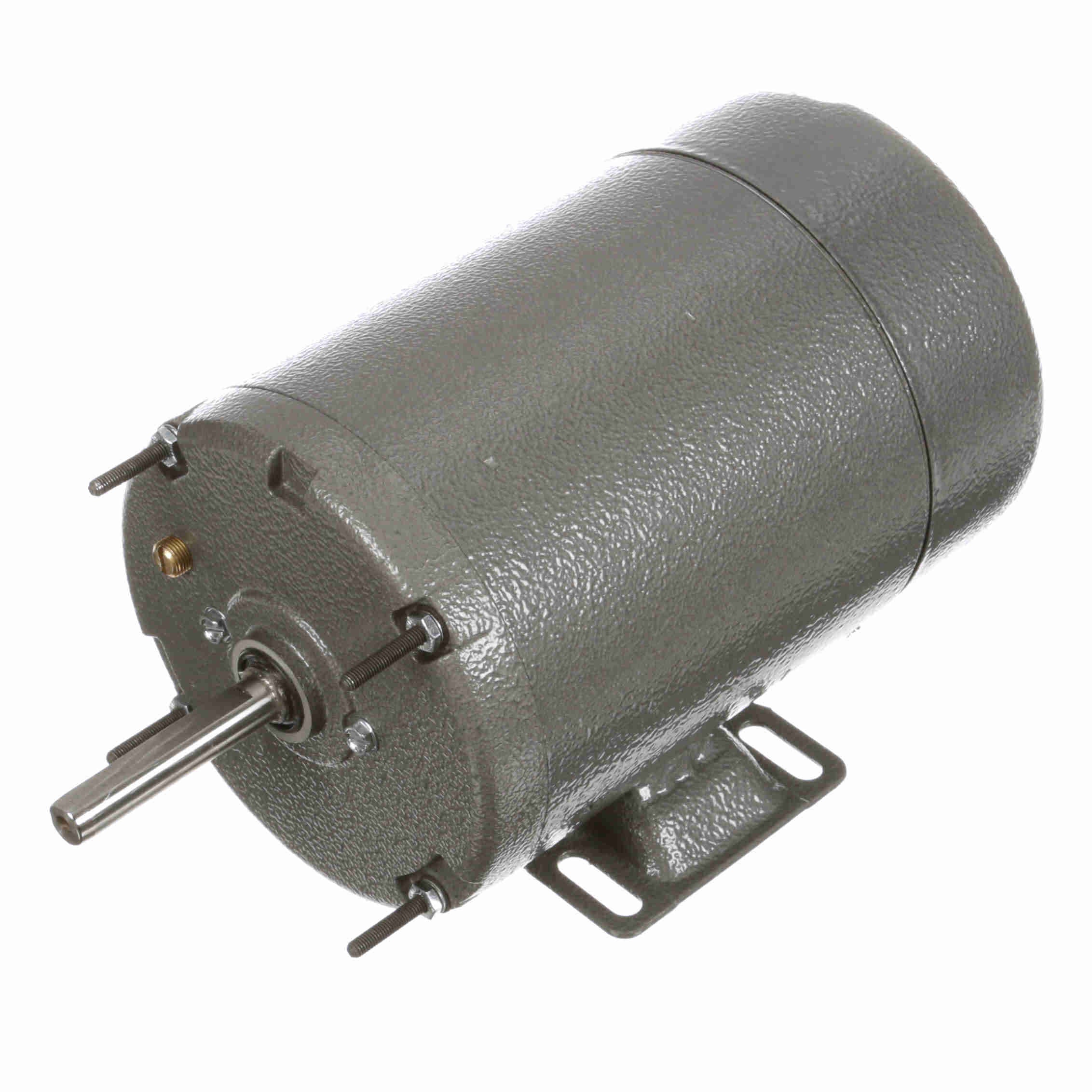

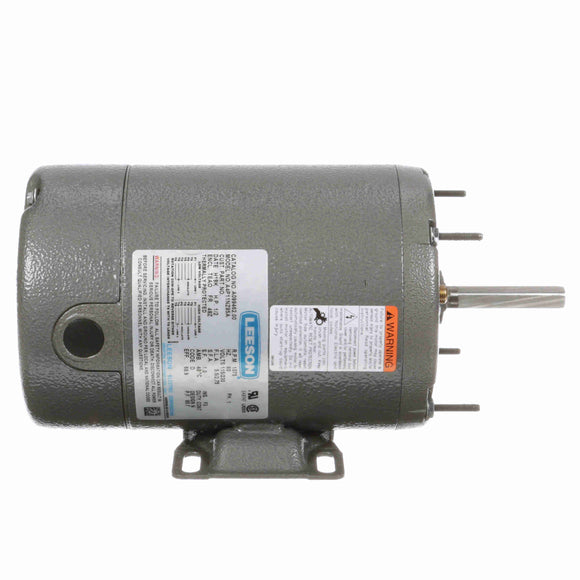

| Model : | A4P11NZ85A | Catalog No : | A099462.00 |
| Part Description : | 1/2HP..1060RPM.48Y.TEAO.115/230V.1PH.60HZ.CONT.40C.1.0SF.RIGID......AG-FAN........ | Category : | Agricultural |
| Stock : | No |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 0.50 HP | Output KW : | 0.37 kW |
| Frequency : | 60 Hz | Voltage : | 115/230 V |
| Current : | 5.5/2.8 A | Speed : | 1075 RPM |
| Service Factor : | 1 | Phase : | 1 |
| Efficiency : | 68.9 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | N |
| KVA Code : | D | Frame : | 48Z |
| Enclosure : | Totally Enclosed Air Over | Overload Protector : | Automatic Lock Rotor Only |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 43 |
Technical Specifications
Technical Specifications
| Electrical Type : | Permanent Split Capacitor | Starting Method : | Across The Line |
| Poles : | 6 | Rotation : | Selective Counterclockwise |
| Mounting : | Rigid Base | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | Single Special Extension |
| Overall Length : | 10.89 in | Frame Length : | 5.50 in |
| Shaft Diameter : | 0.500 in | Shaft Extension : | 2.24 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720102992 |
| Weight : | 21.00 LB |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 0.00 | 72.00 | 200.0 | 0 | 0.50 | |||
| Locked-Rotor | 19.00 | 19.00 | 53.0 | 0 | 0.50 | |||
| Full Load | 2.80 | 36.00 | 100.0 | 0 | 0.50 | |||
| Pull-Up | 0.00 | 17.00 | 47.0 | 0 | 0.50 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. Rise @ FL
- Torque (ft-lb)
- 0 %
- 1.70
- 0.164
- 0.0
- 41.9
- 1,198
- 0.0
- 0.00
- 25 %
- 1.81
- 0.248
- 39.4
- 59.6
- 1,182
- 0.0
- 9.30
- 50 %
- 2.02
- 0.333
- 55.8
- 71.7
- 1,168
- 0.0
- 17.90
- 75 %
- 2.36
- 0.438
- 65.3
- 80.7
- 1,150
- 0.0
- 28.00
- 100 %
- 2.74
- 0.540
- 68.9
- 85.7
- 1,132
- 0.0
- 37.00
- 125 %
- 3.35
- 0.685
- 68.9
- 88.9
- 1,102
- 0.0
- 48.20
- 150 %
- 4.14
- 0.860
- 64.9
- 90.3
- 1,061
- 0.0
- 59.20
