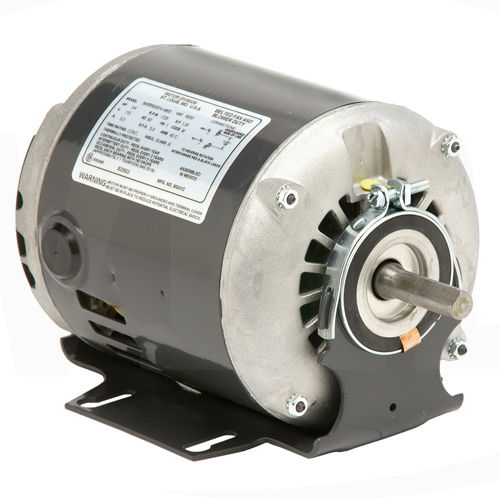

| Model_Number: | SA55SFC4867722B |
| PRODUCT NAME: | .5 HP - OPEN - 1725 |
| PHASETYPE: | 1_SPLIT PHASE |
| MOTOR ENCLOSURE: | OPEN |
| HORSEPOWER: | .5 |
| KILOWATTS: | 0.4 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115 |
| VOLTS : | 115 |
| FRME : | 48 |
| STATOR DIAMETER: | 5.5 |
| STACK: | 2 |
| MOUNTING: | RESILIENT |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | 6203 |
| SHAFT END BEARING: | 6203 |
| AMBIENT: | 40 |
| ROTATION: | CCW LEAD END REV |
| SERVICE FACTOR: | 1.25 |
| SHIPPING WEIGHT: | 18 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 60.06 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 27.4 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | M |
| LOCKED ROTOR AMPS: | 39.33 |
| FULL LOAD AMPS PRIMARY: | 8.0 |
| SERVICE FACTOR AMPS PRIMARY: | 9.0 |
