Features
- UL recognized component listing and CSA certification ensures the product is safe for use.
- Double shielded ball bearings provide longer service life.
- Continuous or continuous air over duty design allows consistent operation at the rated power(as noted).
- Various mounting configurations (as noted).
General Specifications
| UPC: | 722856041463 | Weight: | 15.00 LB |
| Packaged Length: | 12.63 IN | Packaged Width: | 6.94 IN |
| Packaged Height: | 7.5 IN | HTC: | 8501.40.4040 |
| Country of Origin: | Mexico |

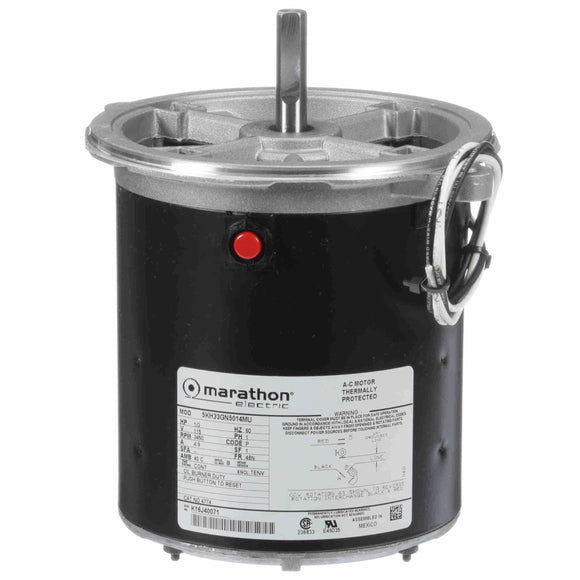

Nameplate Specifications
| Output HP: | 0.33 Hp | Output KW: | 0.25 kW |
| Frequency: | 60 Hz | Voltage: | 115 V |
| Current: | 4.9 A | Speed: | 3450 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Efficiency: | 62.6 % | Power Factor: | 0 |
| Duty: | Continuous | Insulation Class: | B |
| KVA Code: | P | Frame: | 48N |
| Enclosure: | Totally Enclosed Non Ventilated | Thermal Protection: | Manual |
| Ambient Temperature: | 40 °C | Drive End Bearing Size: | 6203 |
| Opp Drive End Bearing Size: | 6203 | UL: | Recognized |
| CSA: | Yes | CE: | N |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Split Phase | Starting Method: | SM |
| Poles: | 2 | Rotation: | Clockwise/Counterclockwise |
| Mounting: | Round | Motor Orientation: | ANY |
| Drive End Bearing: | BALL | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Overall Length: | 8.45 in |
| Frame Length: | 5.41 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 1.88 in | Thru-bolts Extension: | 0 in |
