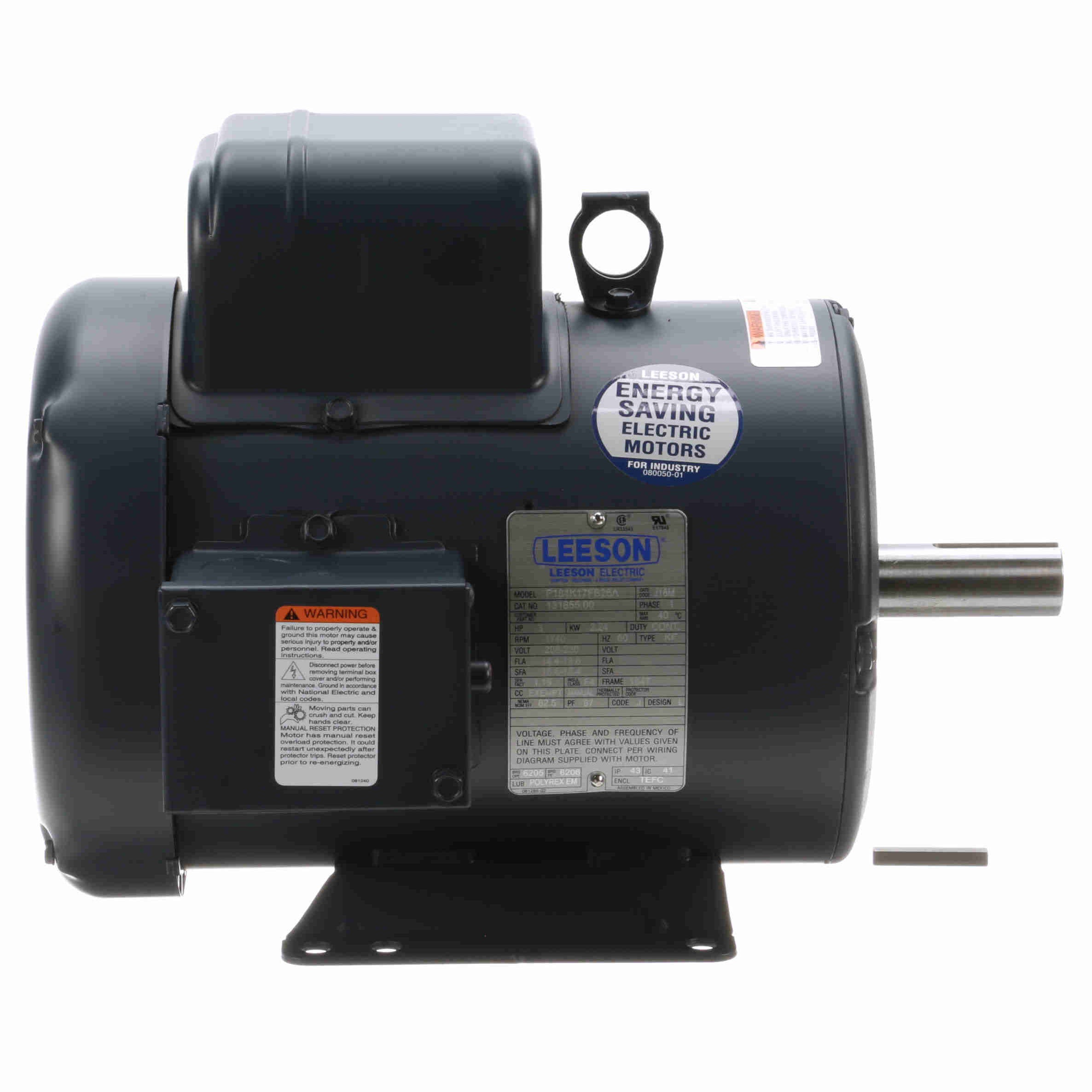

Features
- Double shielded ball bearings
- Dynamically balanced rotors
- NEMA ® Design B performance
- Continuous Duty
- Meets or exceeds NEMA service factors
General Specifications
| UPC: | 691720154526 | Weight: | 88.00 LB |
| Packaged Length: | 17.94 IN | Packaged Width: | 13.06 IN |
| Packaged Height: | 12.88 IN |
Nameplate Specifications
| Output HP: | 3 Hp | Output KW: | 2.2 kW |
| Frequency: | 60 Hz | Voltage: | 208-230 V |
| Current: | 14.4-13.6 A | Speed: | 1740 rpm |
| Service Factor: | 1.15 | Phase: | 1 |
| Efficiency: | 82.5 % | Power Factor: | 87 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | L | KVA Code: | J |
| Frame: | 184T | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | Manual | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6206 | Opp Drive End Bearing Size: | 6205 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 43 |
Technical Specifications
| Electrical Type: | Capacitor Start Capacitor Run | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Selective Counterclockwise |
| Resistance Main: | .777 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | T | Overall Length: | 14.96 in |
| Frame Length: | 9.50 in | Shaft Diameter: | 1.125 in |
| Shaft Extension: | 2.75 in | Assembly/Box Mounting: | F1 ONLY |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 94.00 | 23.50 | 261.0 | 0 | 3.00 | |||
| Pull-Up | 0.00 | 19.60 | 218.0 | 1,300 | 3.00 | |||
| Full Load | 13.60 | 9.00 | 100.0 | 1,758 | 3.00 | |||
| Break-Down | 0.00 | 22.50 | 250.0 | 1,500 | 3.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % | 150 % |
| Current (Amps) | 5.90 | 6.55 | 8.22 | 10.52 | 13.53 | 16.15 | 19.49 |
| Rated Output (KW) | 0.37 | 0.87 | 1.44 | 2.05 | 2.71 | 3.38 | 4.13 |
| Efficiency (%) | 0.0 | 66.0 | 79.2 | 82.8 | 83.0 | 82.8 | 80.2 |
| Power Factor (%) | 27.3 | 57.6 | 76.1 | 84.6 | 87.1 | 91.0 | 92.0 |
| Speed (RPM) | 1,798 | 1,789 | 1,780 | 1,768 | 1,758 | 1,743 | 1,726 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 72.0 | 0.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 2.25 | 4.50 | 6.75 | 9.00 | 11.30 | 13.50 |
