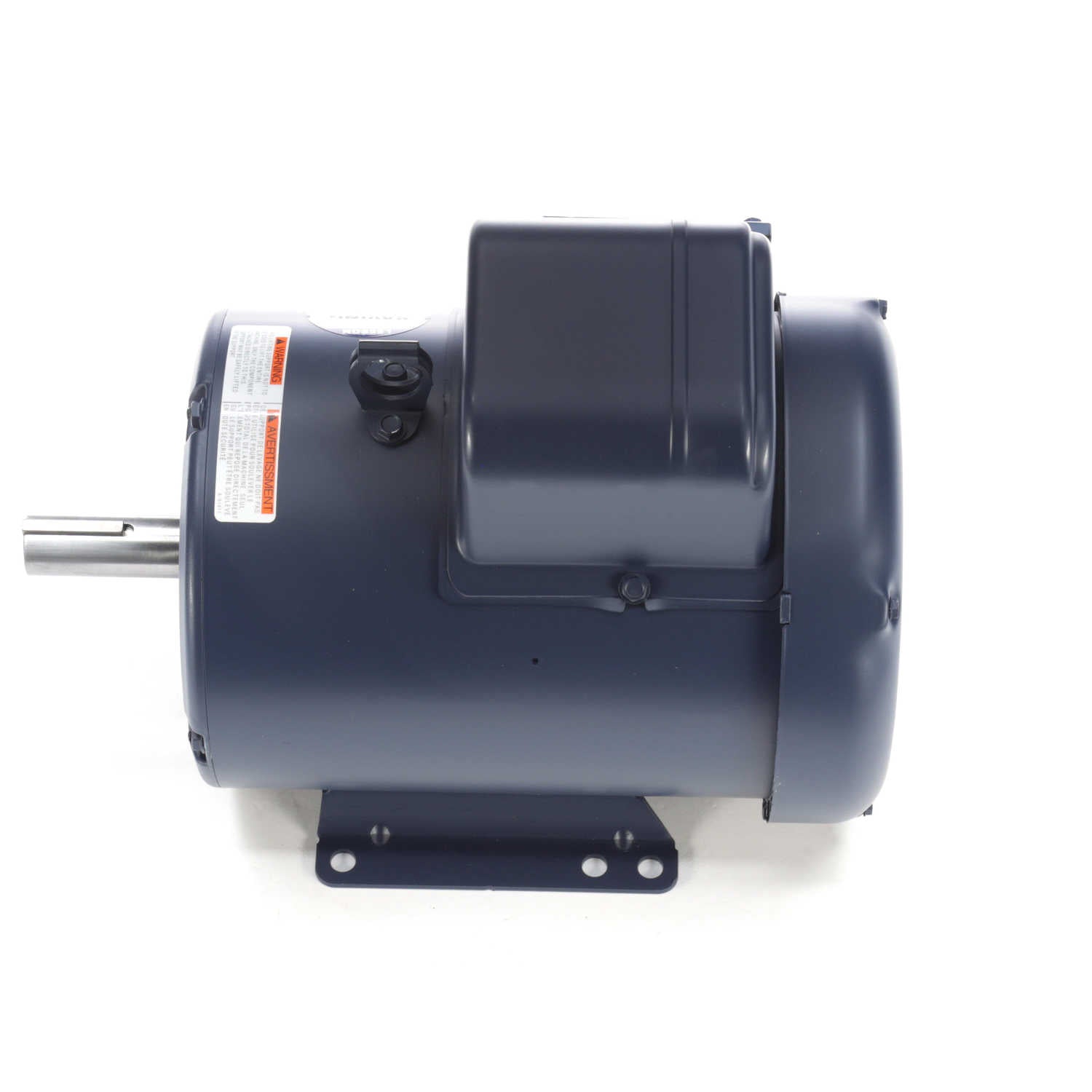

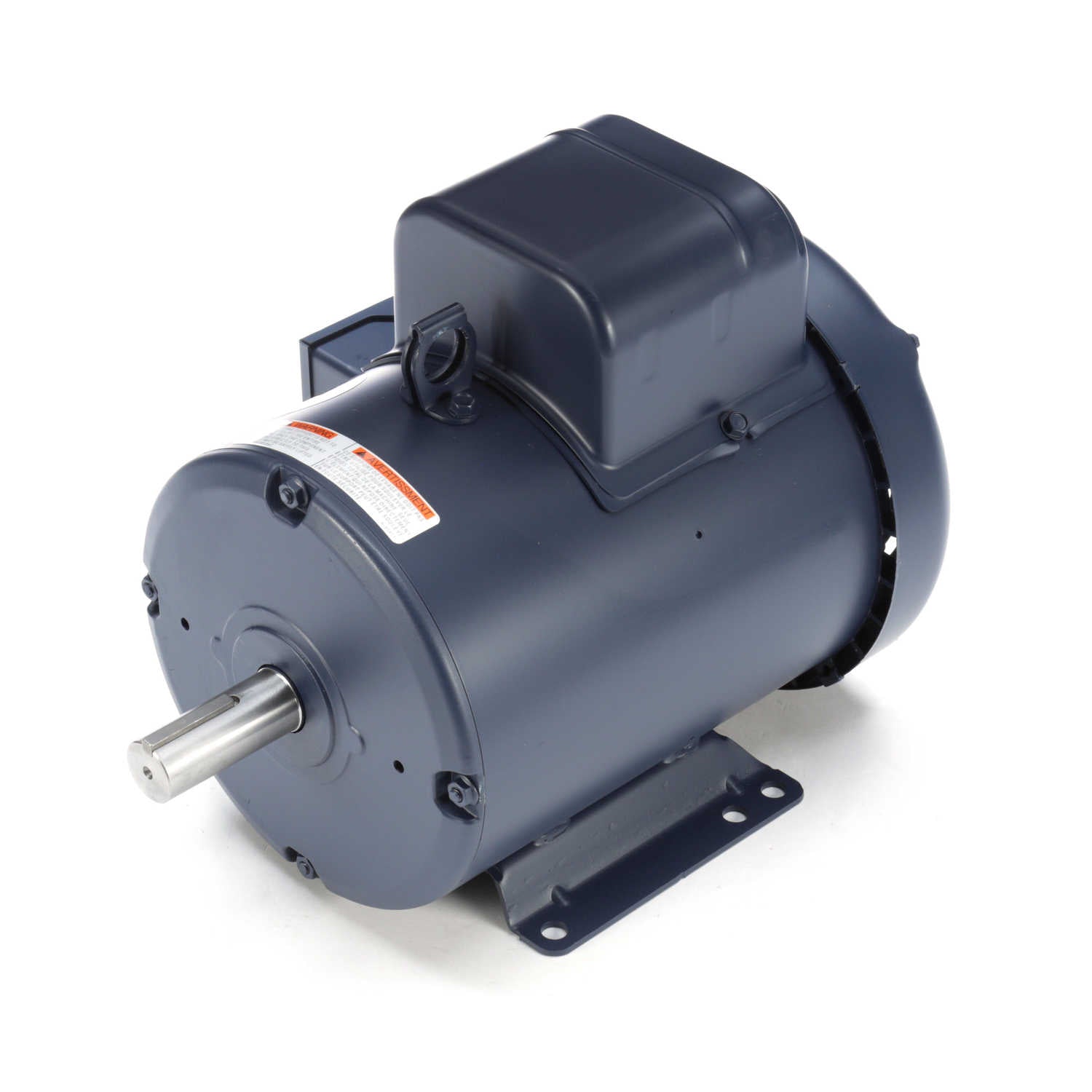

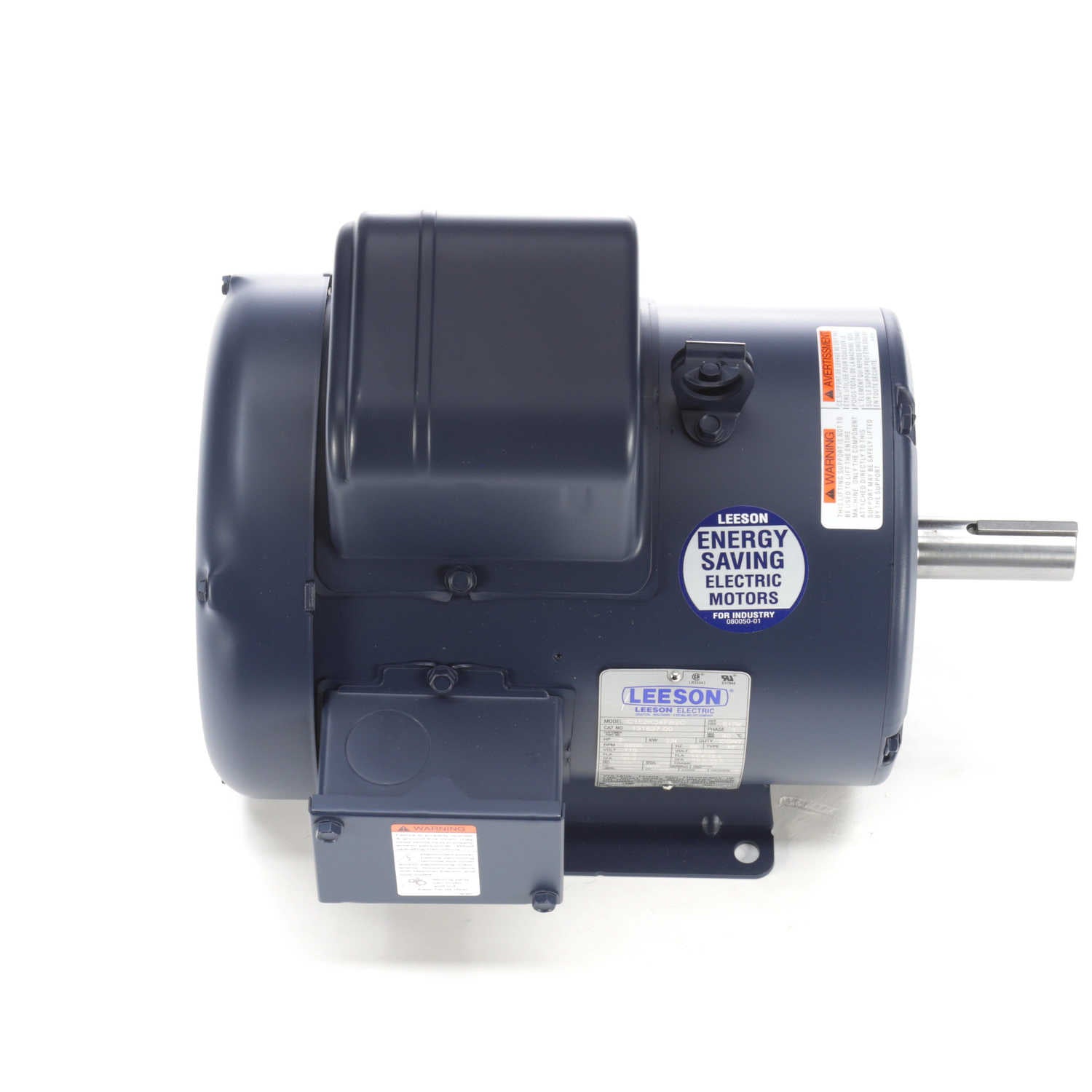

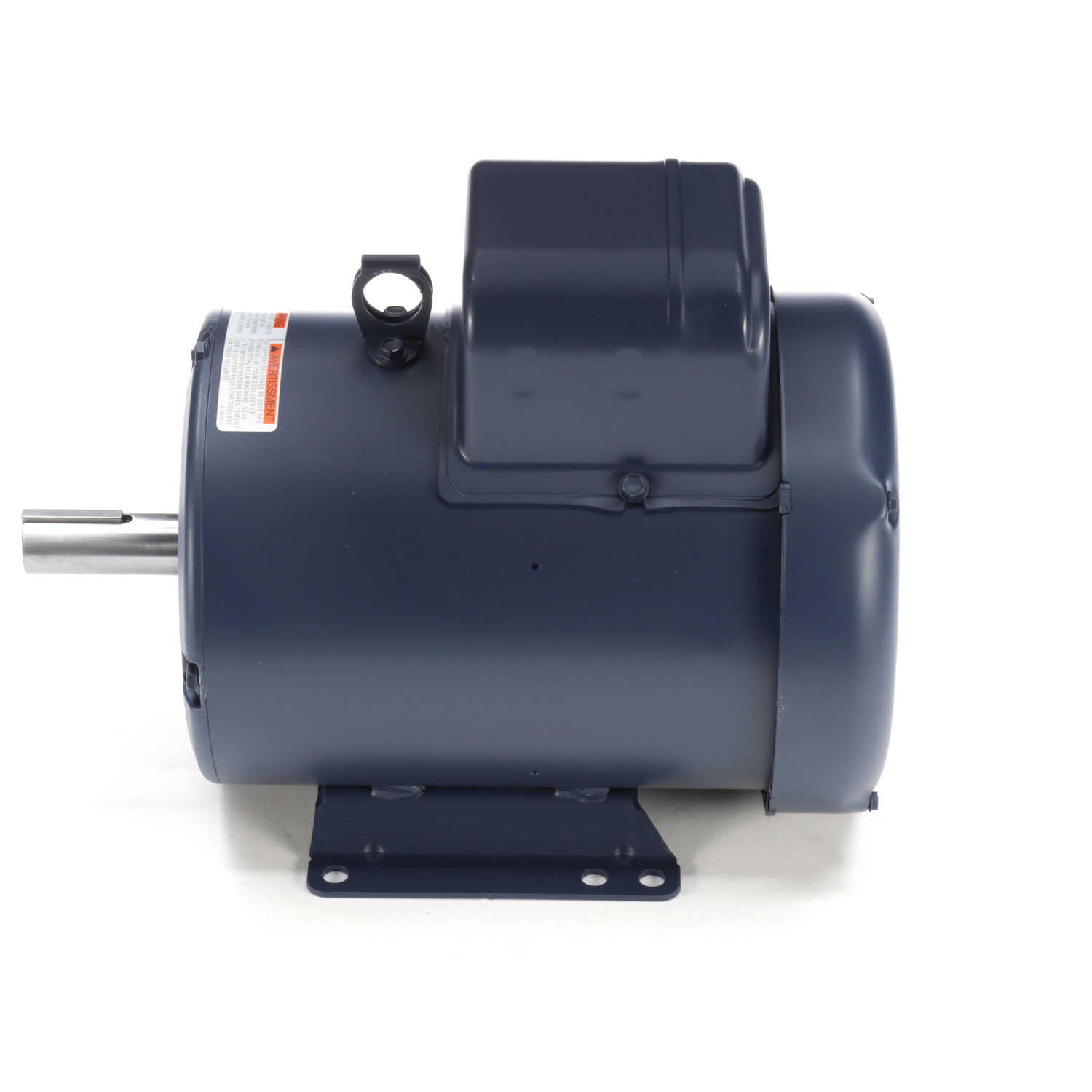

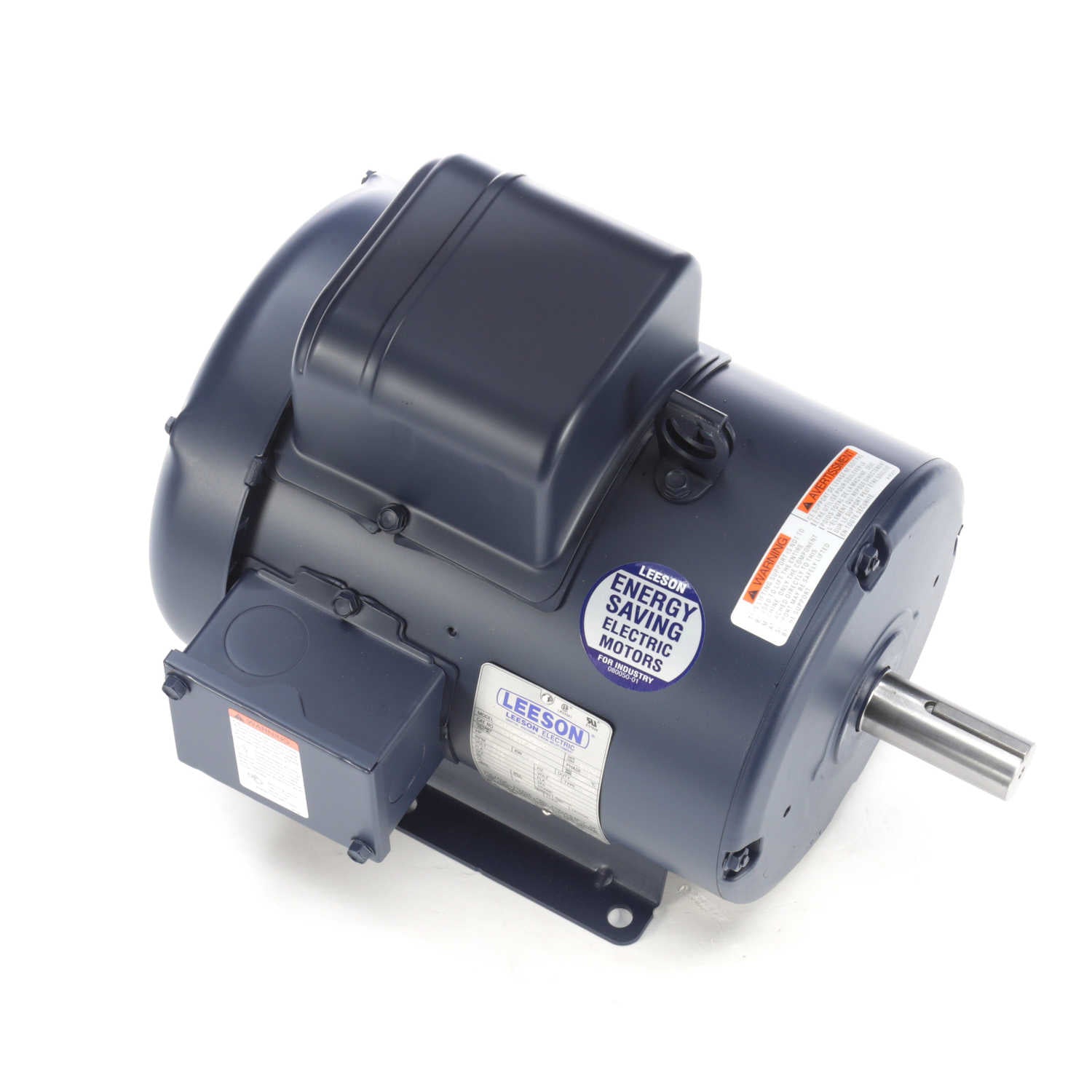

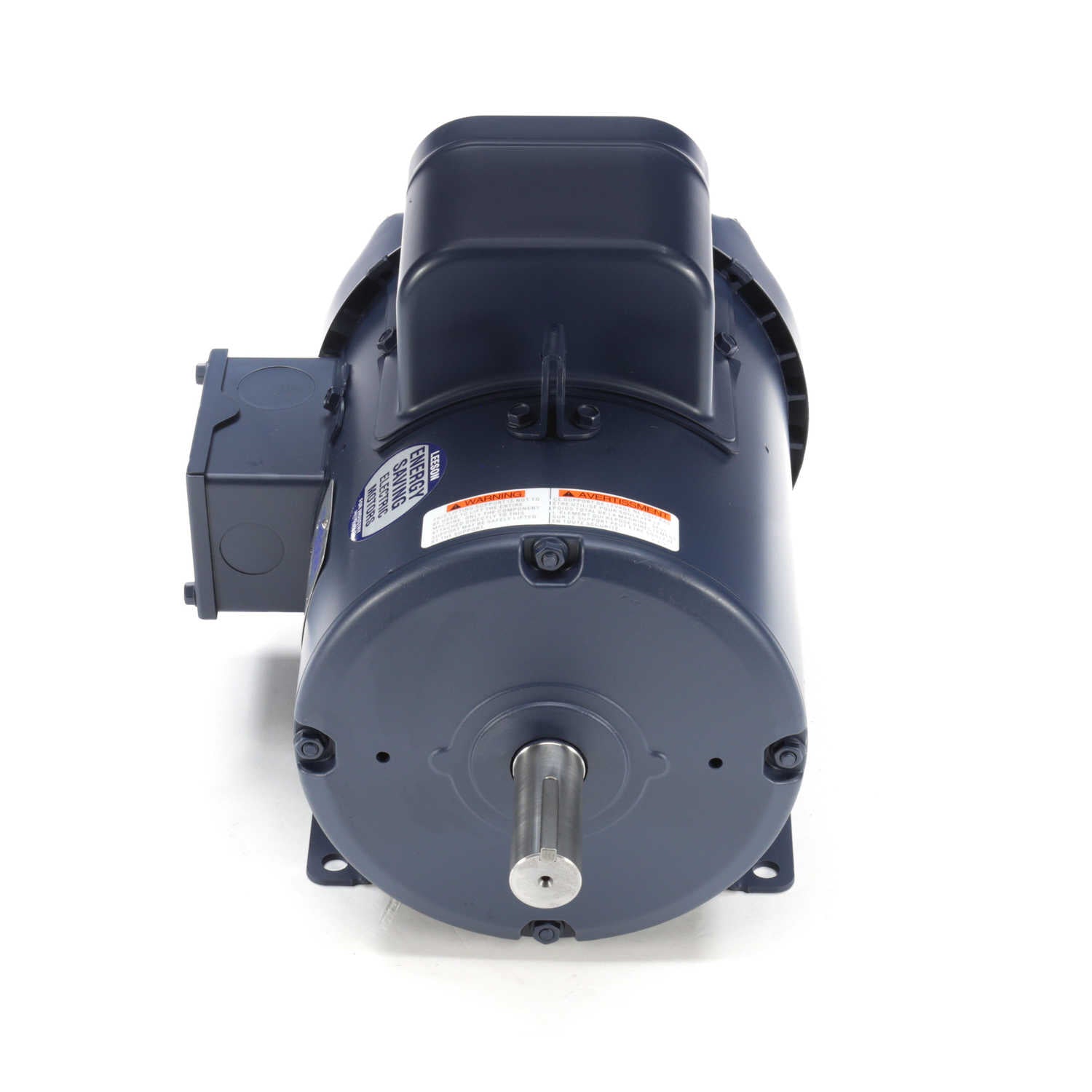

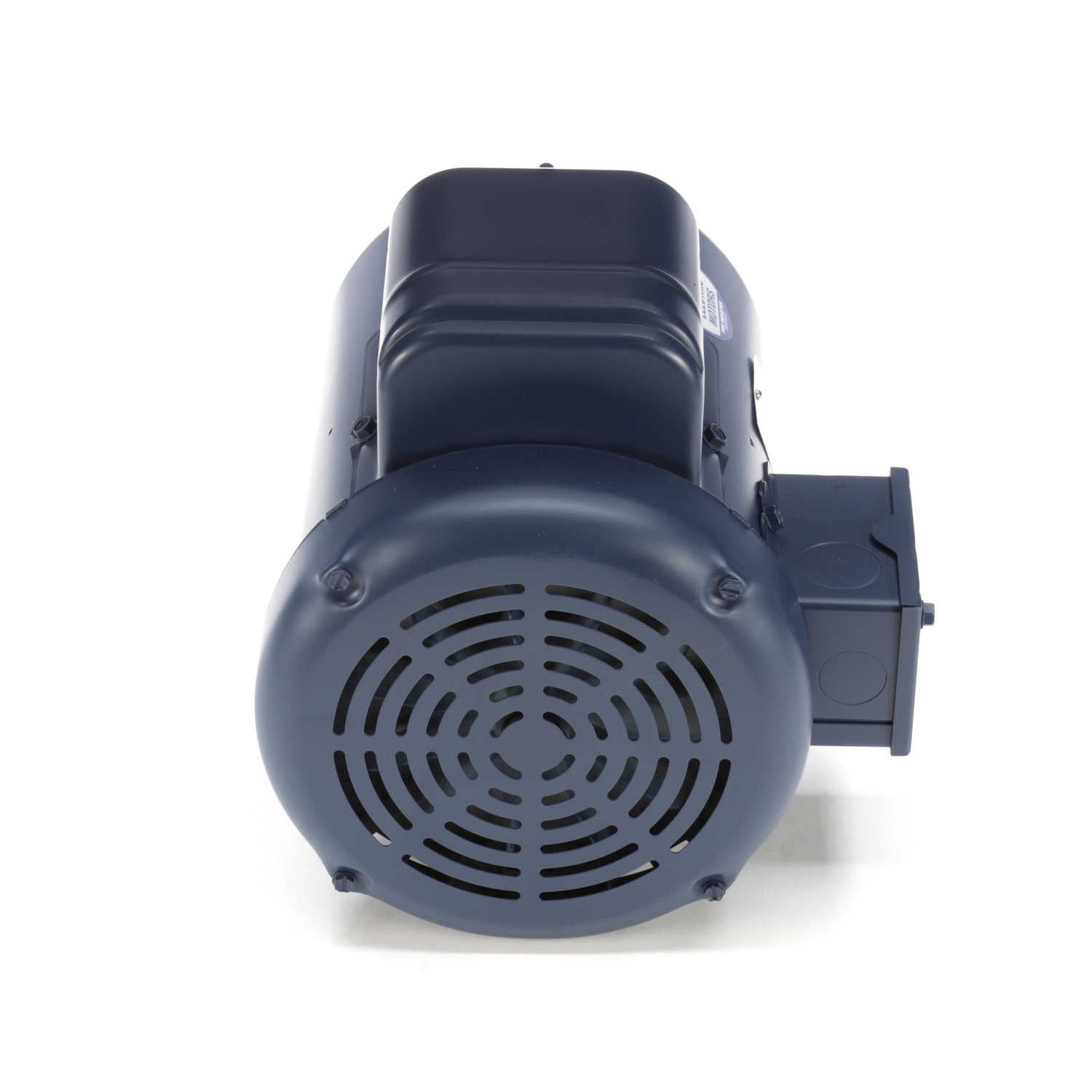

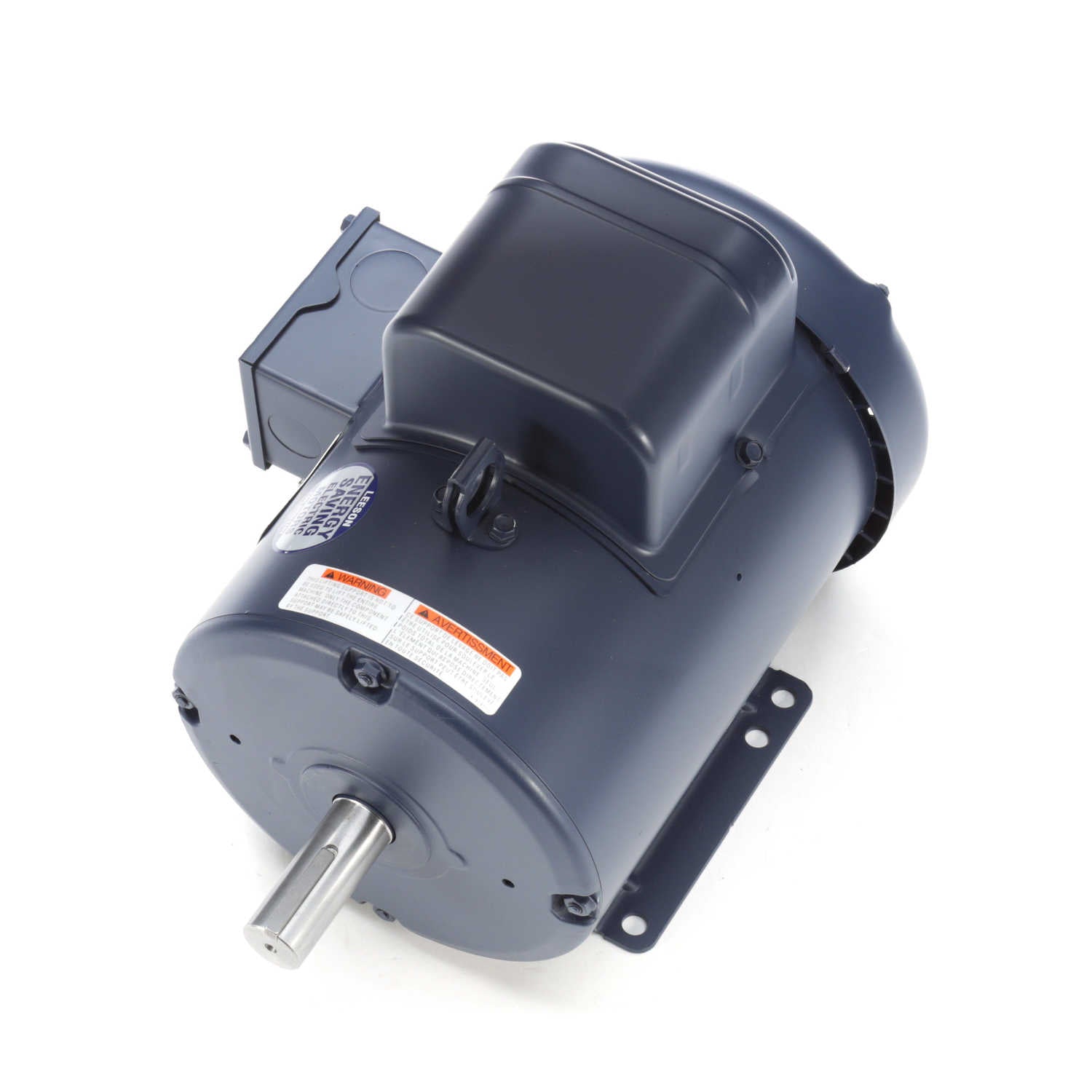

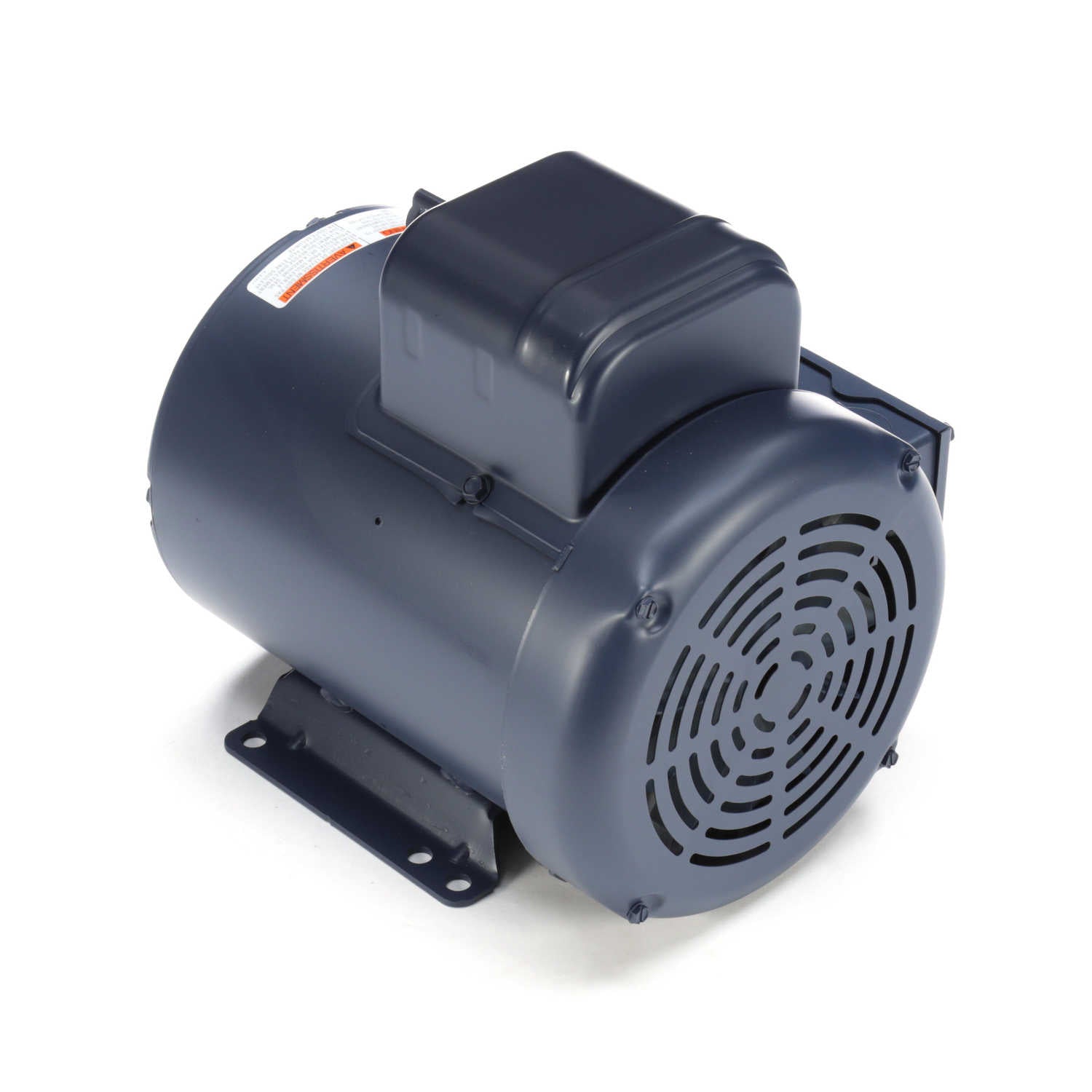

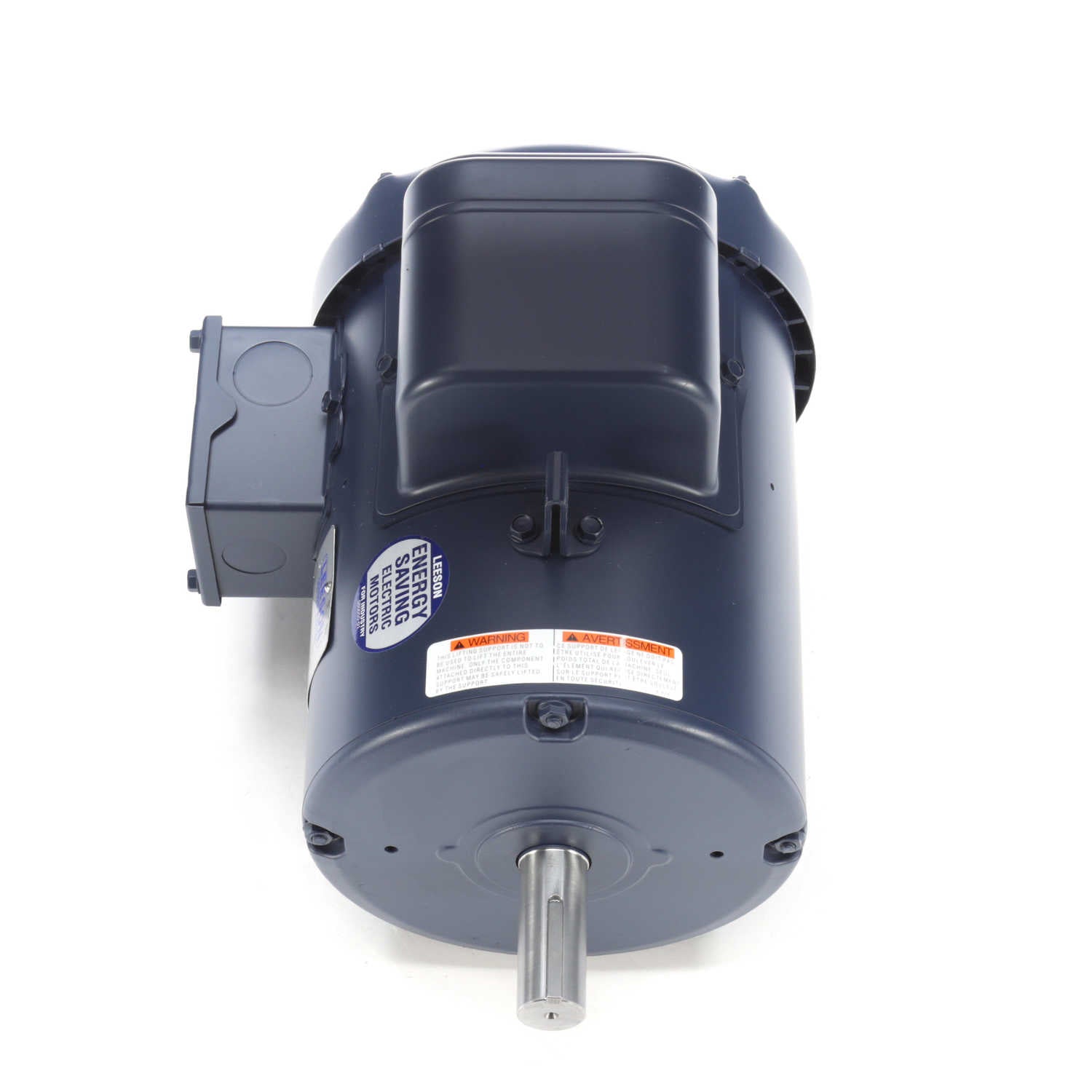

Features
- Durable rolled steel construction
- NEMA Design B performance
- Double shielded ball bearings
- Continuous duty
- UL recognized component listing and CSA certified
General Specifications
| UPC: | 691720018576 | Weight: | 81.00 LB |
| Packaged Length: | 17.94 IN | Packaged Width: | 13.06 IN |
| Packaged Height: | 12.88 IN |
Nameplate Specifications
| Output HP: | 3 Hp | Output KW: | 2.2 kW |
| Frequency: | 60 Hz | Voltage: | 115/208-230 V |
| Current: | 26.8/14.4-13.4 A | Speed: | 3500 rpm |
| Service Factor: | 1.15 | Phase: | 1 |
| Efficiency: | 80 % | Power Factor: | 89 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | L | KVA Code: | G |
| Frame: | 182T | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6206 | Opp Drive End Bearing Size: | 6205 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 43 |
Technical Specifications
| Electrical Type: | Capacitor Start Capacitor Run | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Selective Counterclockwise |
| Resistance Main: | .12 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | T | Overall Length: | 14.96 in |
| Frame Length: | 9.50 in | Shaft Diameter: | 1.125 in |
| Shaft Extension: | 2.75 in | Assembly/Box Mounting: | F1 ONLY |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 102.00 | 761.0 | 10.40 | 231.0 | 0 | 17.50 | 0.0 | 3.00 |
| Full Load | 13.40 | 100.0 | 4.50 | 100.0 | 0 | 0.00 | 0.0 | 3.00 |
| Pull-Up | 76.50 | 571.0 | 10.00 | 222.0 | 2,600 | 13.21 | 0.0 | 3.00 |
| Break-Down | 57.90 | 432.0 | 12.80 | 284.0 | 3,100 | 11.10 | 0.0 | 3.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % | 150 % |
| Current (Amps) | 4.80 | 6.14 | 8.30 | 10.80 | 13.40 | 16.70 | 20.10 |
| Rated Output (KW) | 0.33 | 0.92 | 1.52 | 2.15 | 2.80 | 3.50 | 4.22 |
| Efficiency (%) | 0.0 | 62.4 | 70.8 | 79.2 | 80.0 | 79.9 | 79.2 |
| Power Factor (%) | 29.9 | 65.2 | 79.6 | 86.6 | 89.0 | 91.0 | 91.3 |
| Speed (RPM) | 3,596 | 3,580 | 3,565 | 3,548 | 3,530 | 3,510 | 3,485 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 56.0 | 69.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 1.13 | 2.25 | 3.38 | 4.50 | 5.60 | 6.75 |
