Features
- USDA-approved epoxy painted motors
- Stainless steel Shaft
- NEMA motors
- Rigid base and C face mount types
- BISSC approved designs
- Double lip contact seals and v-ring seals used for shaft seals
- UL recognized and CSA certified
- Single phase motors feature an electronic Solid State Encapsulated switch
General Specifications

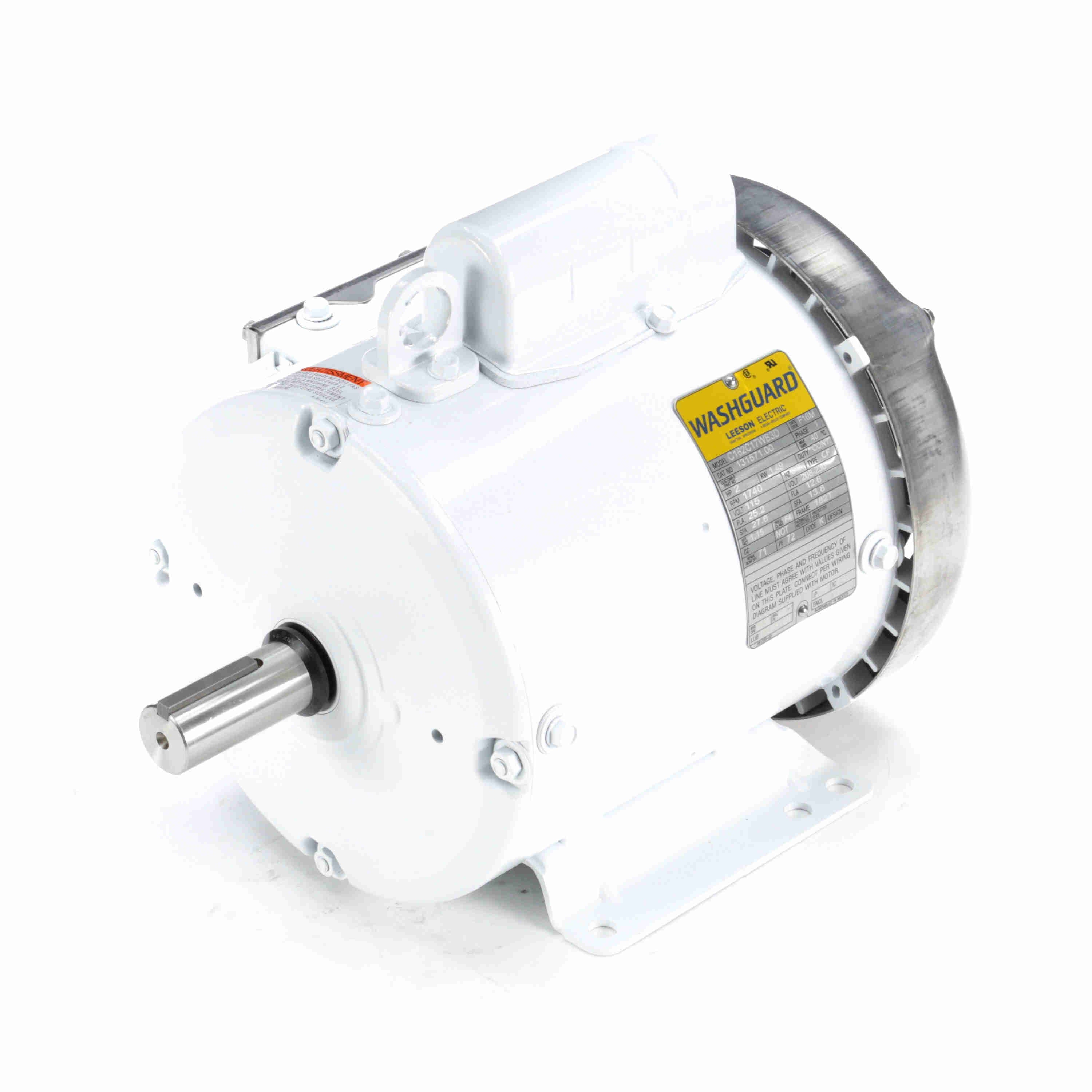

| Model : | C182C17WB3D | Catalog No : | 131571.00 |
| Part Description : | 2HP..1740RPM.182.TEFC.115/208-230V.1PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.WASHGUARD.C182C17WB3D | Category : | General Purpose |
| Stock : | No |
Nameplate Specifications
| Output HP : | 2 Hp | Output KW : | 1.5 kW |
| Frequency : | 60 Hz | Voltage : | 115/208-230 V |
| Current : | 25.2/12.6 A | Speed : | 1740 rpm |
| Service Factor : | 1.15 | Phase : | 1 |
| Efficiency : | 71 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | NO DESIGN CODE |
| KVA Code : | K | Frame : | 182T |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6207 |
| Opp Drive End Bearing Size : | 6205 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Capacitor Start Induction Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Selective Counterclockwise |
| Mounting : | Rigid base | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 13.46 in | Frame Length : | 8.00 in |
| Shaft Diameter : | 1.125 in | Shaft Extension : | 2.75 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720018026 |
| Weight : | 63.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 0.00 | 0.0 | 13.30 | 222.0 | 0 | 0.00 | 0.0 | 2.00 |
| Break-Down | 0.00 | 0.0 | 15.00 | 250.0 | 0 | 0.00 | 0.0 | 2.00 |
| Full Load | 12.60 | 100.0 | 6.00 | 100.0 | 0 | 0.00 | 0.0 | 2.00 |
| Locked-Rotor | 68.00 | 540.0 | 13.60 | 227.0 | 0 | 0.00 | 0.0 | 2.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 7.90
- 0.442
- 0.0
- 0.0
- 1,796
- 0.0
- 0.00
- 25 %
- 8.15
- 0.779
- 46.0
- 38.5
- 1,786
- 0.0
- 1.50
- 50 %
- 9.36
- 1.235
- 61.2
- 52.5
- 1,777
- 0.0
- 3.00
- 75 %
- 10.83
- 1.690
- 68.5
- 63.4
- 1,767
- 0.0
- 4.50
- 100 %
- 12.63
- 2.100
- 71.0
- 72.0
- 1,756
- 75.0
- 6.00
- 125 %
- 14.82
- 2.650
- 0.0
- 0.0
- 1,742
- 0.0
- 7.50
- 150 %
- 17.25
- 3.250
- 0.0
- 0.0
- 1,727
- 0.0
- 9.00
