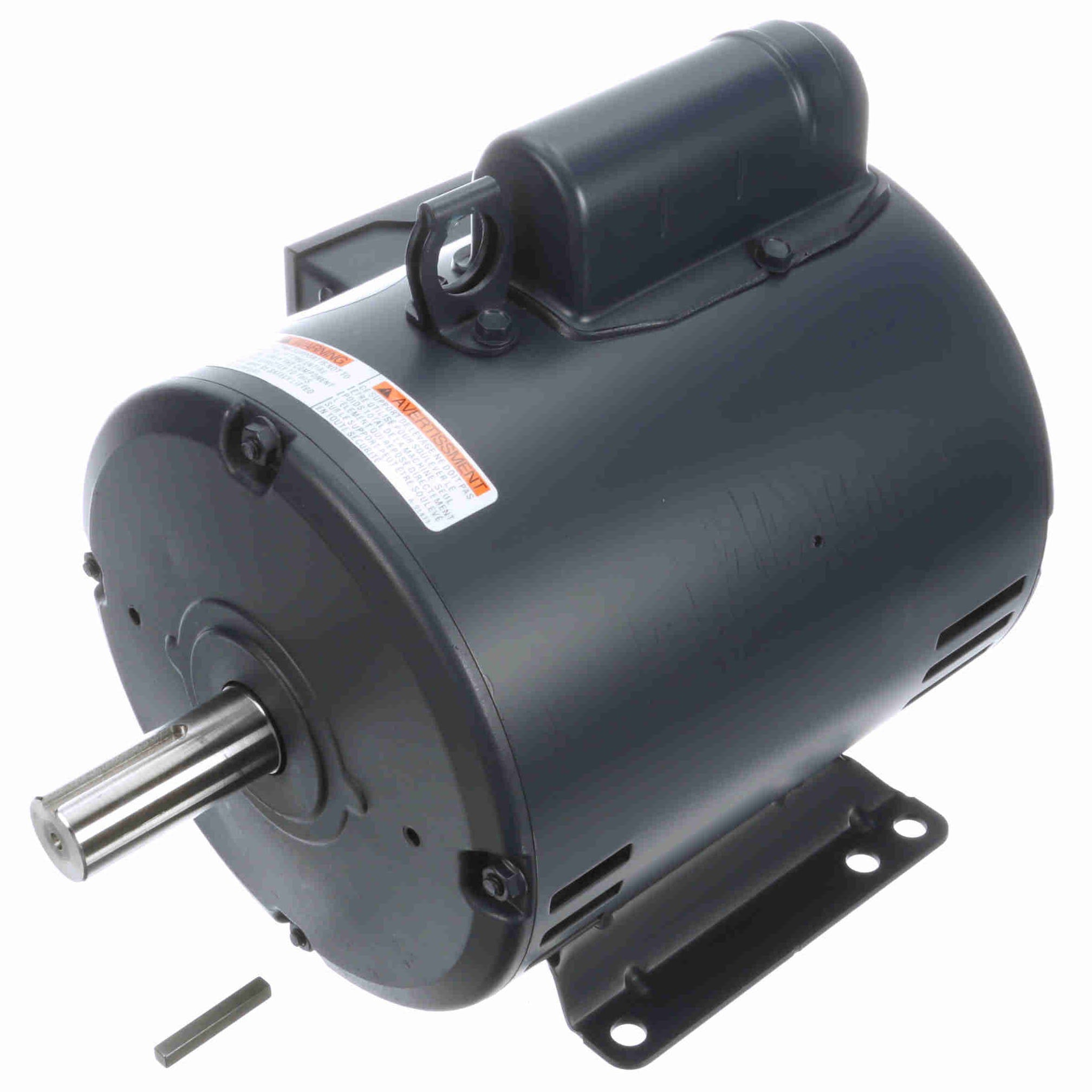

131536.00 Leeson 2HP Air Compressor Electric Motor, 1740RPM-1

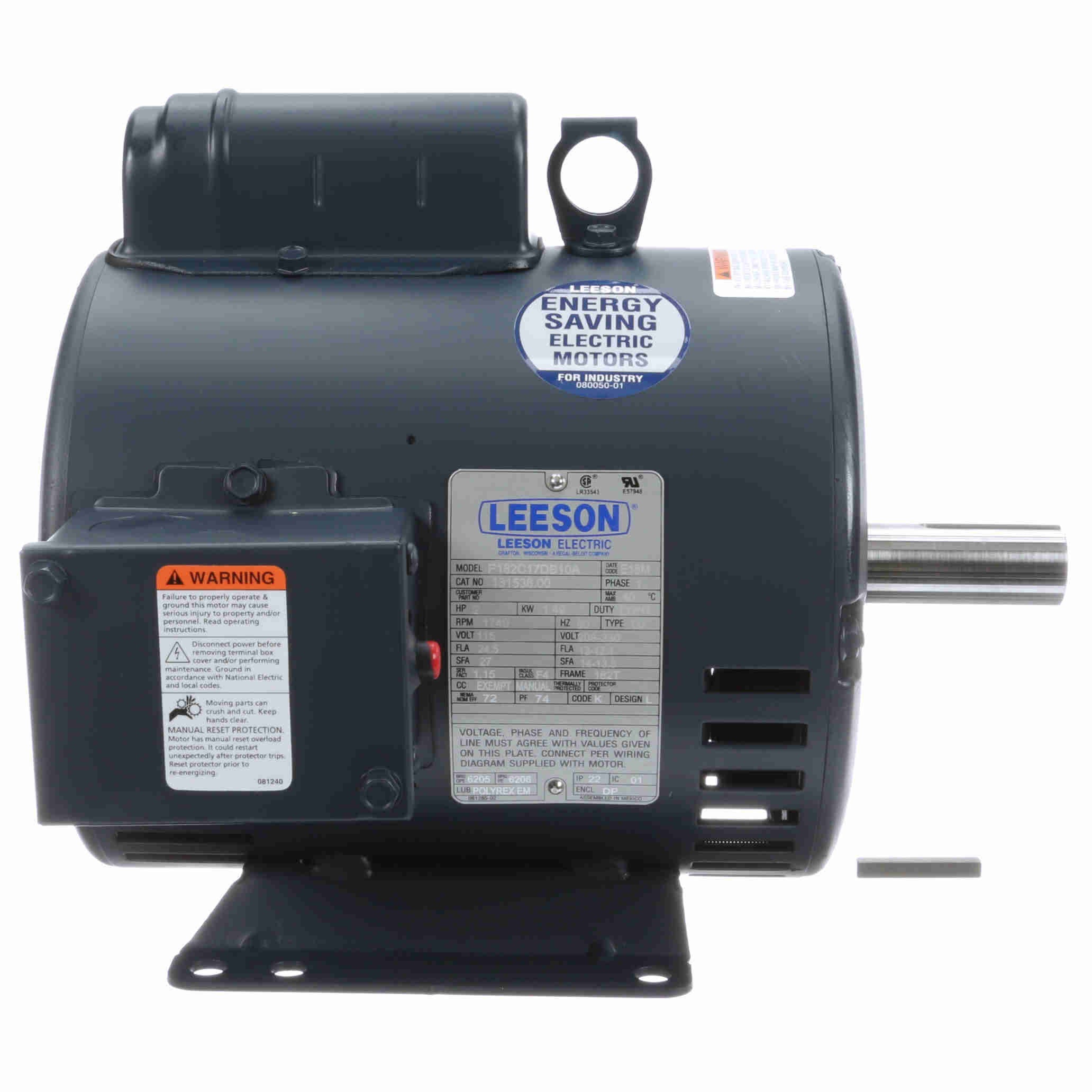

131536.00 Leeson 2HP Air Compressor Electric Motor, 1740RPM-2
131536.00 Leeson 2HP Air Compressor Electric Motor, 1740RPM-3
131536.00 Leeson 2HP Air Compressor Electric Motor, 1740RPM-4

131536.00 Leeson 2HP Air Compressor Electric Motor, 1740RPM

$1,499.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 131536.00 Barcode: 691720017784

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Durable rolled steel construction
  • NEMA design B performance
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

General Specifications

UPC: 691720017784 Weight: 66.00 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 24.5/13.0-12.4 A Speed: 1740 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 72 % Power Factor: 74
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: K
Frame: 182T Enclosure: Drip Proof
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6206 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: N IP Code: 22

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 13.19 in
Frame Length: 9.00 in Shaft Diameter: 1.125 in
Shaft Extension: 2.75 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 12.40 6.00 100.0 0 2.00
Break-Down 0.00 16.10 268.0 0 2.00
Pull-Up 0.00 15.00 250.0 0 2.00
Locked-Rotor 78.00 20.60 343.0 0 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 8.16 8.24 9.19 10.68 12.40 13.50 14.47 16.92
Rated Output (KW) 0.36 0.76 1.16 1.65 2.12 2.26 2.64 3.22
Efficiency (%) 0.0 50.2 65.0 68.4 70.4 75.6 70.1 68.5
Power Factor (%) 19.2 40.0 55.1 67.1 74.4 69.0 79.4 82.6
Speed (RPM) 1,796 1,786 1,775 1,764 1,752 1,755 1,737 1,721
Temp. Rise @ FL 0.0 0.0 0.0 0.0 52.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 1.50 3.00 4.50 6.00 6.80 7.50 9.00
