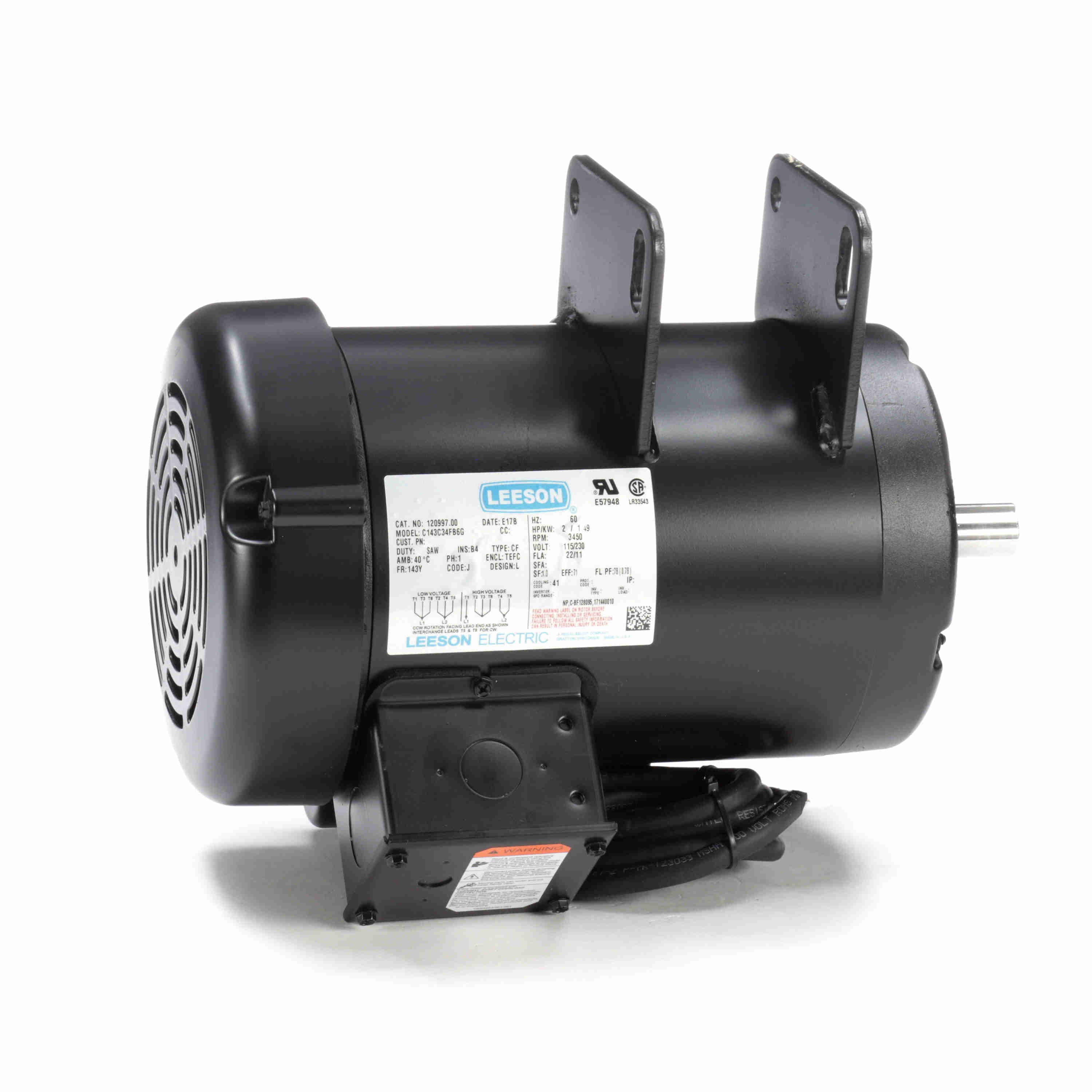

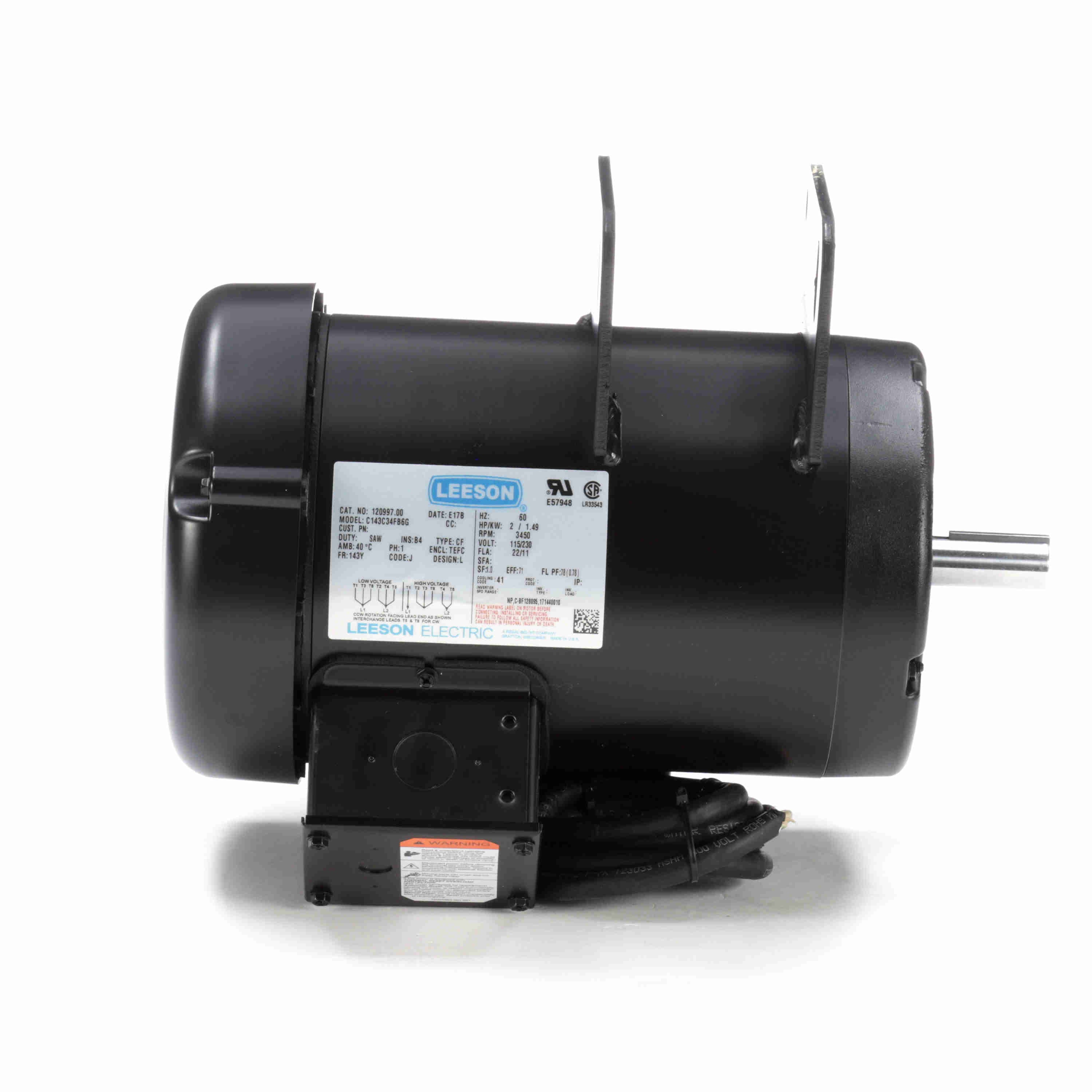

Features
- Motor pivots on rod for belt tensioning
- Extra high breakdown torques for maximum cutting power
- 3/4” Dia. Shaft, 1-3/4” long with keyway
- Includes 54 inch cord
General Specifications
| UPC: | 691720016480 | Weight: | 45.00 LB |
| Packaged Length: | 17.94 IN | Packaged Width: | 13.06 IN |
| Packaged Height: | 12.88 IN |
Nameplate Specifications
| Output HP: | 2 Hp | Output KW: | 1.5 kW |
| Frequency: | 60 Hz | Voltage: | 115/230 V |
| Current: | 22.0/11.0 A | Speed: | 3450 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Efficiency: | 71 % | Power Factor: | 78 |
| Duty: | Saw | Insulation Class: | B |
| Design Code: | L | KVA Code: | J |
| Frame: | 143Y | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6205 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 43 |
Technical Specifications
| Electrical Type: | Capacitor Start Induction Run | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Fixed Counterclockwise |
| Resistance Main: | 0 Ohms | Mounting: | Round |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Single Special Extension | Overall Length: | 12.86 in |
| Frame Length: | 7.50 in | Shaft Diameter: | 0.750 in |
| Shaft Extension: | 1.75 in | Assembly/Box Mounting: | F1 Only |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 0.00 | 8.80 | 293.0 | 2,950 | 2.00 | |||
| Full Load | 11.00 | 3.00 | 100.0 | 3,512 | 2.00 | |||
| Locked-Rotor | 69.00 | 6.60 | 220.0 | 0 | 2.00 | |||
| Pull-Up | 0.00 | 6.00 | 200.0 | 2,800 | 2.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % | 150 % |
| Current (Amps) | 6.82 | 7.32 | 8.22 | 8.56 | 11.01 | 13.08 | 15.11 |
| Rated Output (KW) | 0.32 | 0.69 | 1.09 | 1.52 | 1.97 | 2.46 | 2.95 |
| Efficiency (%) | 0.0 | 55.3 | 69.6 | 74.3 | 75.8 | 75.7 | 74.9 |
| Power Factor (%) | 20.3 | 40.9 | 57.6 | 77.2 | 78.0 | 81.6 | 84.9 |
| Speed (RPM) | 3,598 | 3,572 | 3,554 | 3,534 | 3,512 | 3,486 | 3,455 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 85.0 | 0.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 0.75 | 1.50 | 2.25 | 3.00 | 3.75 | 4.50 |
