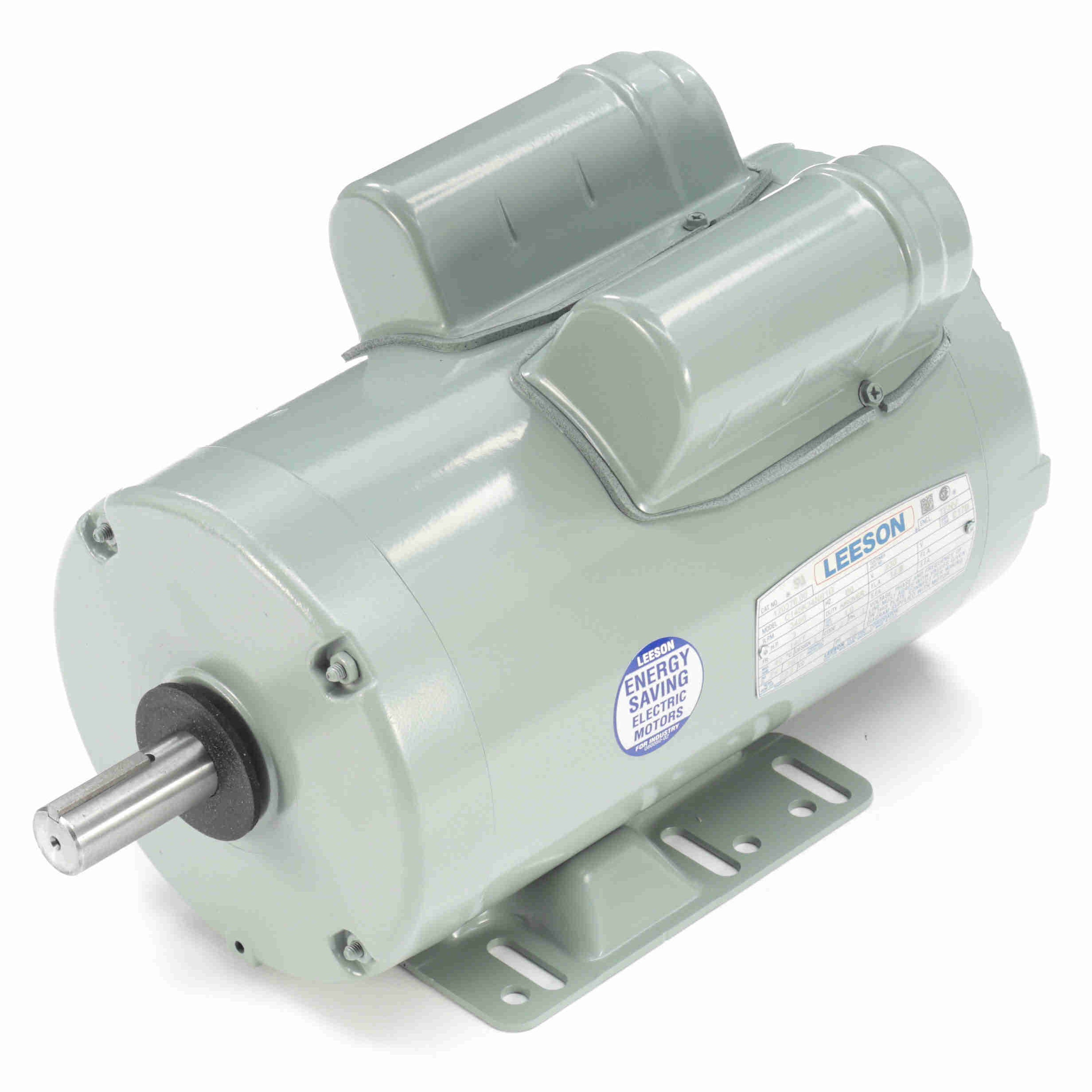

Aeration Fan Motors
Features:
• Belt driven fans or fan on shaft applications
• Capacitor start design
• Must be mounted in airstream for proper cooling
• Epoxy paint to resist corrosion
• Built-in terminal boards
Features
- Belt driven fans or fan on shaft applications
- Capacitor start designs
- Must be mounted in airstream for proper cooling
- Epoxy paint to resist corrosion
- Single-phase models have built-in terminal boards
General Specifications
| UPC: | 691720015445 | Weight: | 48.00 LB |
| Packaged Length: | 19.5 IN | Packaged Width: | 10.44 IN |
| Packaged Height: | 10.88 IN |
Nameplate Specifications
| Output HP: | 3 Hp | Output KW: | 2.2 kW |
| Frequency: | 60 Hz | Voltage: | 230 V |
| Current: | 12.8 A | Speed: | 3450 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Efficiency: | 82.5 % | Power Factor: | 92 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | L | KVA Code: | J |
| Frame: | 145T | Enclosure: | Totally Enclosed Air Over |
| Thermal Protection: | No | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6205 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 43 |
Technical Specifications
| Electrical Type: | Capacitor Start Capacitor Run | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Selective Counterclockwise |
| Resistance Main: | .71 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | T | Overall Length: | 13.84 in |
| Frame Length: | 8.50 in | Shaft Diameter: | 0.875 in |
| Shaft Extension: | 2.25 in | Assembly/Box Mounting: | F1 ONLY |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 0.00 | 7.00 | 156.0 | 2,700 | 3.00 | |||
| Locked-Rotor | 95.00 | 7.60 | 169.0 | 0 | 3.00 | |||
| Full Load | 12.80 | 4.50 | 100.0 | 3,524 | 3.00 | |||
| Break-Down | 0.00 | 12.10 | 269.0 | 3,100 | 3.00 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % | 150 % |
| Current (Amps) | 3.63 | 5.24 | 7.74 | 10.06 | 12.87 | 15.92 | 19.31 |
| Rated Output (KW) | 0.27 | 0.87 | 1.52 | 2.08 | 2.73 | 3.41 | 4.16 |
| Efficiency (%) | 0.0 | 66.5 | 75.0 | 82.0 | 82.6 | 82.2 | 80.2 |
| Power Factor (%) | 32.3 | 71.8 | 85.2 | 89.7 | 92.1 | 93.1 | 93.6 |
| Speed (RPM) | 3,598 | 3,582 | 3,561 | 3,545 | 3,524 | 3,502 | 3,475 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 50.0 | 0.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 1.13 | 2.25 | 3.38 | 4.50 | 5.63 | 6.75 |
