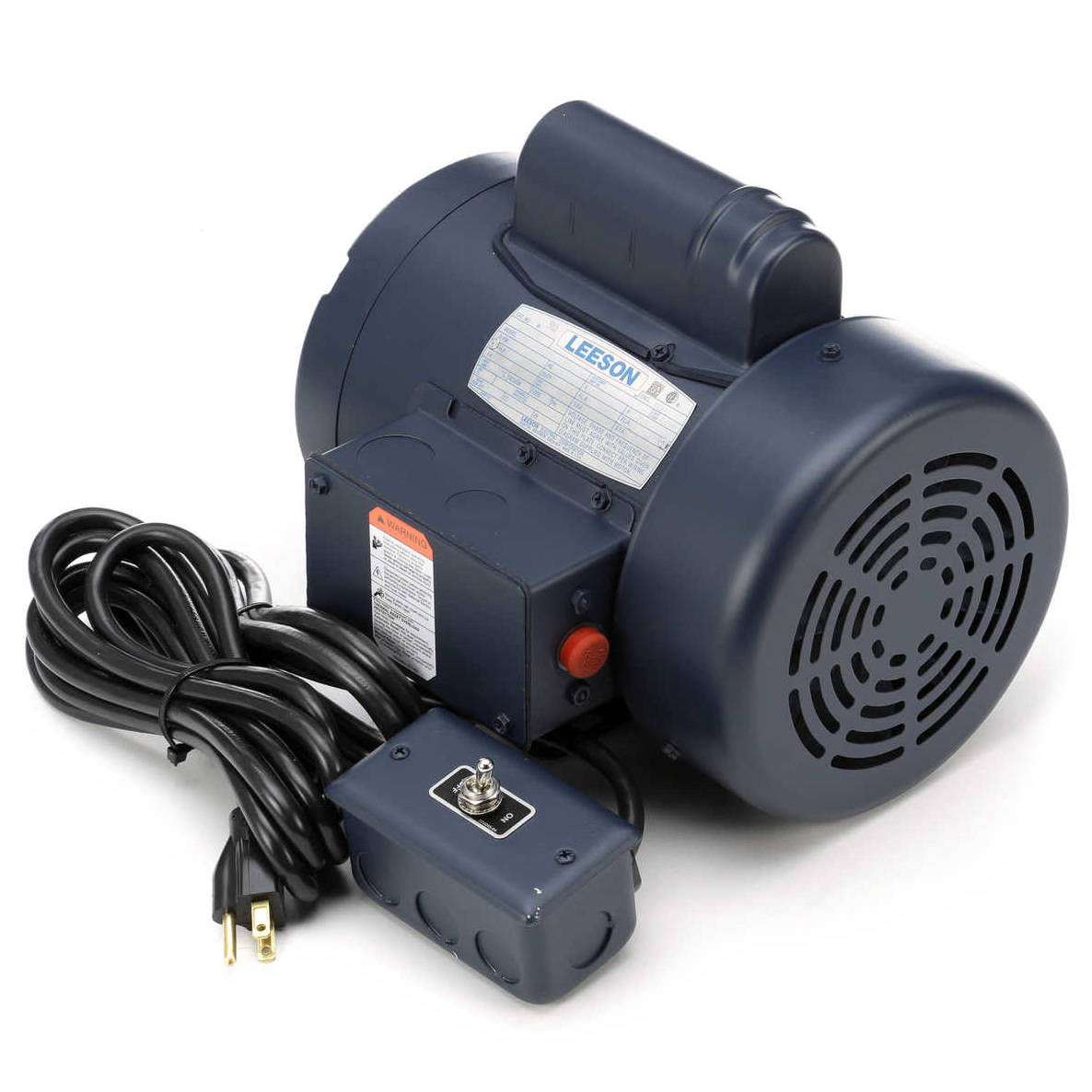

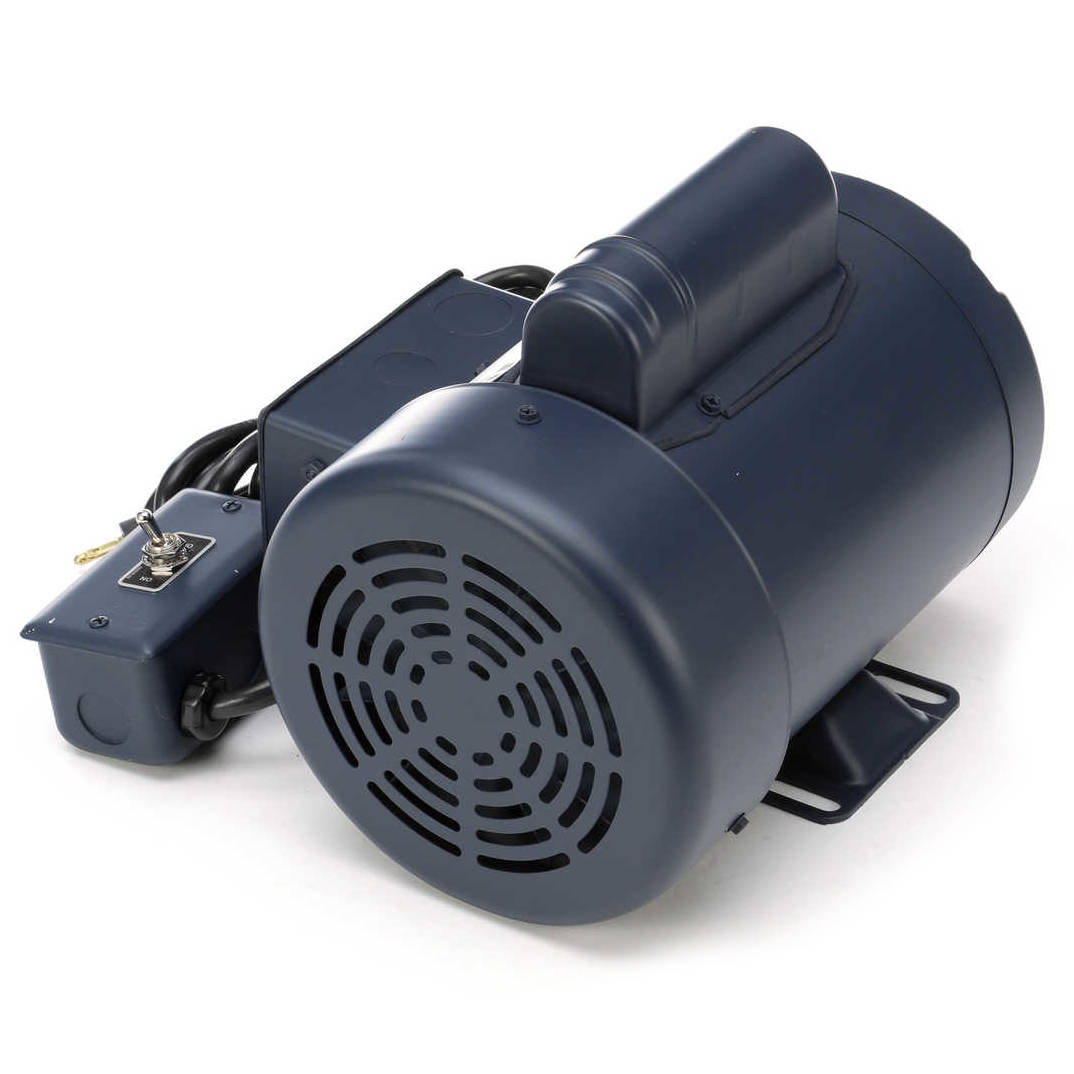

Features
- Extra high breakdown torque
- 8 ft. cord with 115V plug
- Fully gasketed
- On/off toggle switch
General Specifications
| UPC: | 691720012239 | Weight: | 37.00 LB |
| Packaged Length: | 19.5 IN | Packaged Width: | 10.44 IN |
| Packaged Height: | 10.88 IN |
Nameplate Specifications
| Output HP: | 1.50 Hp | Output KW: | 1.1 kW |
| Frequency: | 60 Hz | Voltage: | 115/230 V |
| Current: | 15.0/7.5 A | Speed: | 3450 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Efficiency: | 72 % | Power Factor: | 80 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | L | KVA Code: | H |
| Frame: | 56 | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | Manual | Ambient Temperature: | 40 °C |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 43 |
Technical Specifications
| Electrical Type: | Capacitor Start Induction Run | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Selective Counterclockwise |
| Resistance Main: | 1.32 Ohms | Mounting: | Rigid Base |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | NEMA 56 | Overall Length: | 12.31 in |
| Frame Length: | 6.50 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 1.88 in | Assembly/Box Mounting: | F2 ONLY |
Speed & Load Characteristics
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 0.00 | 5.60 | 249.0 | 3,000 | 1.50 | |||
| Pull-Up | 0.00 | 5.30 | 236.0 | 2,800 | 1.50 | |||
| Locked-Rotor | 46.00 | 5.50 | 244.0 | 0 | 1.50 | |||
| Full Load | 8.50 | 2.25 | 100.0 | 3,454 | 1.50 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % | 150 % |
| Current (Amps) | 4.67 | 5.07 | 5.89 | 7.05 | 8.45 | 9.52 | 10.33 |
| Rated Output (KW) | 0.26 | 0.54 | 0.85 | 1.19 | 1.56 | 1.81 | 2.00 |
| Efficiency (%) | 0.0 | 52.9 | 66.1 | 70.5 | 72.0 | 71.1 | 70.0 |
| Power Factor (%) | 24.1 | 46.0 | 62.7 | 73.5 | 80.0 | 82.8 | 84.2 |
| Speed (RPM) | 3,598 | 3,561 | 3,530 | 3,496 | 3,454 | 3,424 | 3,399 |
| Temp. Rise @ FL | 82.0 | ||||||
| Torque (ft-lbs) | 0.00 | 0.56 | 1.12 | 1.69 | 2.28 | 2.65 | 2.90 |
