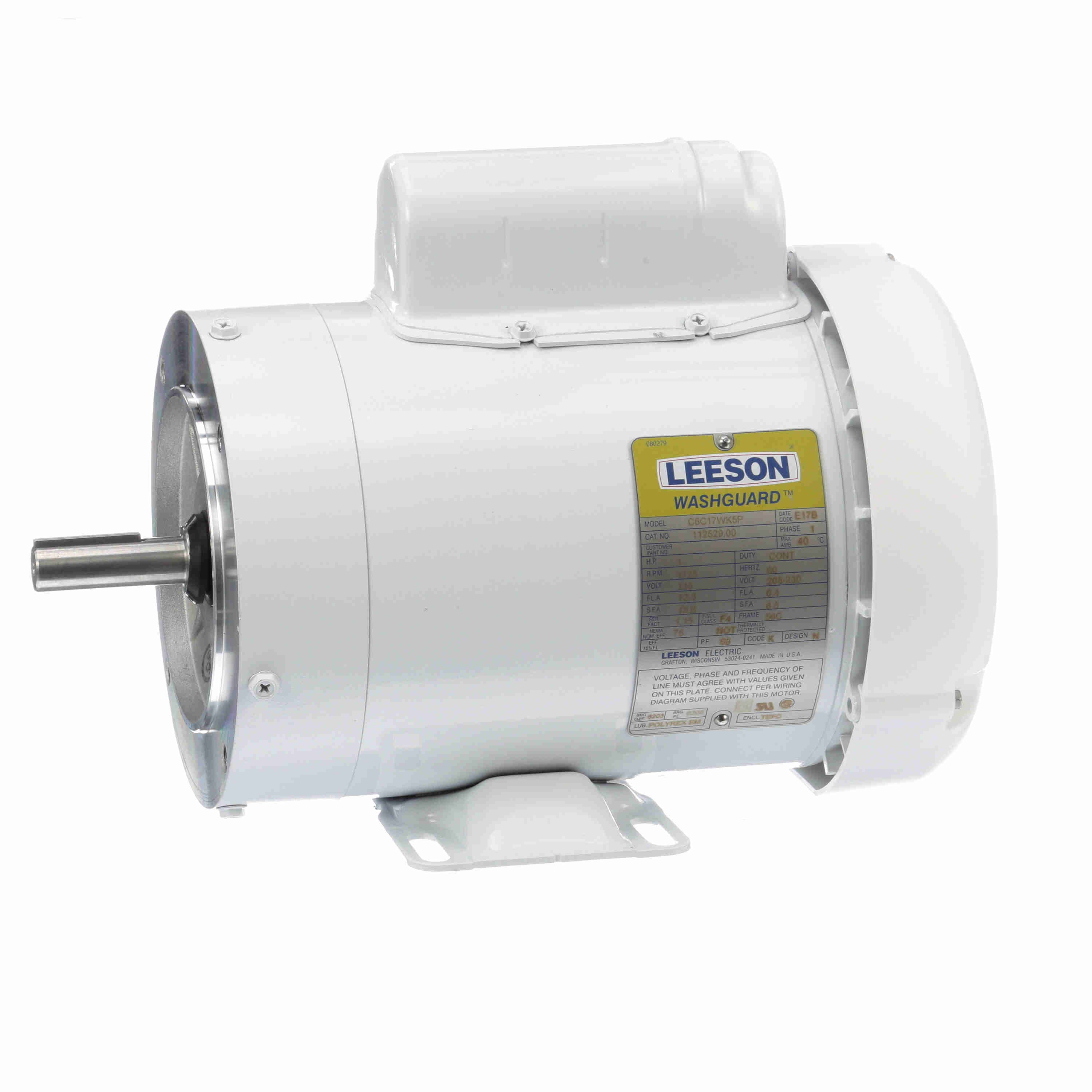

Features
- USDA-approved epoxy painted motors
- Stainless steel Shaft
- NEMA motors
- AC washdown motors
- Rigid base and C face mount types
- BISSC approved designs
- Double lip contact seals and v-ring seals used for shaft seals
- UL recognized and CSA certified
- Single phase motors feature an electronic Solid State Encapsulated switch
General Specifications
| Model : | C6C17WK5P | Catalog No : | 112529.00 |
| Part Description : | 1HP.- C-FACE WITH BASE -..1725RPM.56.TEFC./V.1PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD.C6C17WK5P | Category : | General Purpose |
| Stock : | No |
Nameplate Specifications
| Output HP : | 1 Hp | Output KW : | 0.75 kW |
| Frequency : | 60 Hz | Voltage : | 115/208-230 V |
| Current : | 12.8/6.4 A | Speed : | 1725 rpm |
| Service Factor : | 1.15 | Phase : | 1 |
| Efficiency : | 75 % | Duty : | Continuous |
| Insulation Class : | F | Design Code : | N |
| KVA Code : | K | Frame : | 56C |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 55 |
Technical Specifications
| Electrical Type : | Capacitor Start Induction Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Selective Counterclockwise |
| Mounting : | Rigid base | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | NEMA 56 |
| Overall Length : | 12.12 in | Frame Length : | 6.25 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 1.88 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720010945 |
| Weight : | 36.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Pull-Up | 0.00 | 0.0 | 6.70 | 223.0 | 0 | 0.00 | 0.0 | 1.00 |
| Break-Down | 0.00 | 0.0 | 7.00 | 233.0 | 0 | 0.00 | 0.0 | 1.00 |
| Full Load | 6.40 | 0.0 | 3.00 | 100.0 | 1,747 | 0.00 | 0.0 | 1.00 |
| Locked-Rotor | 33.00 | 0.0 | 9.00 | 300.0 | 0 | 0.00 | 0.0 | 1.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 4.60
- 0.148
- 0.0
- 14.0
- 1,798
- 0.0
- 0.00
- 25 %
- 4.76
- 0.340
- 56.0
- 31.1
- 1,786
- 0.0
- 0.75
- 50 %
- 5.17
- 0.542
- 69.7
- 45.6
- 1,774
- 0.0
- 1.50
- 75 %
- 5.80
- 0.774
- 72.8
- 58.0
- 1,762
- 0.0
- 2.25
- 100 %
- 6.42
- 0.993
- 75.0
- 67.2
- 1,747
- 73.0
- 3.00
- 115 %
- 6.85
- 1.135
- 75.0
- 72.0
- 1,737
- 0.0
- 3.45
- 125 %
- 7.56
- 1.271
- 72.4
- 73.1
- 1,728
- 0.0
- 3.75
- 150 %
- 8.82
- 1.552
- 70.3
- 76.5
- 1,708
- 0.0
- 4.50
