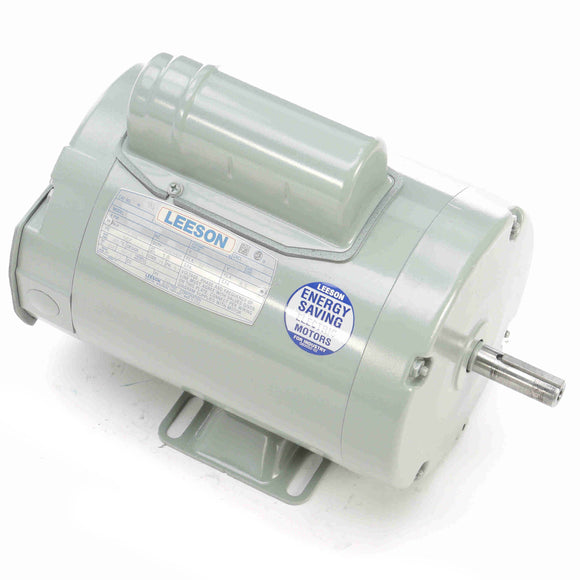

111949.00 1.5HP Leeson Ag-Duty Aeration Fan Motor-1

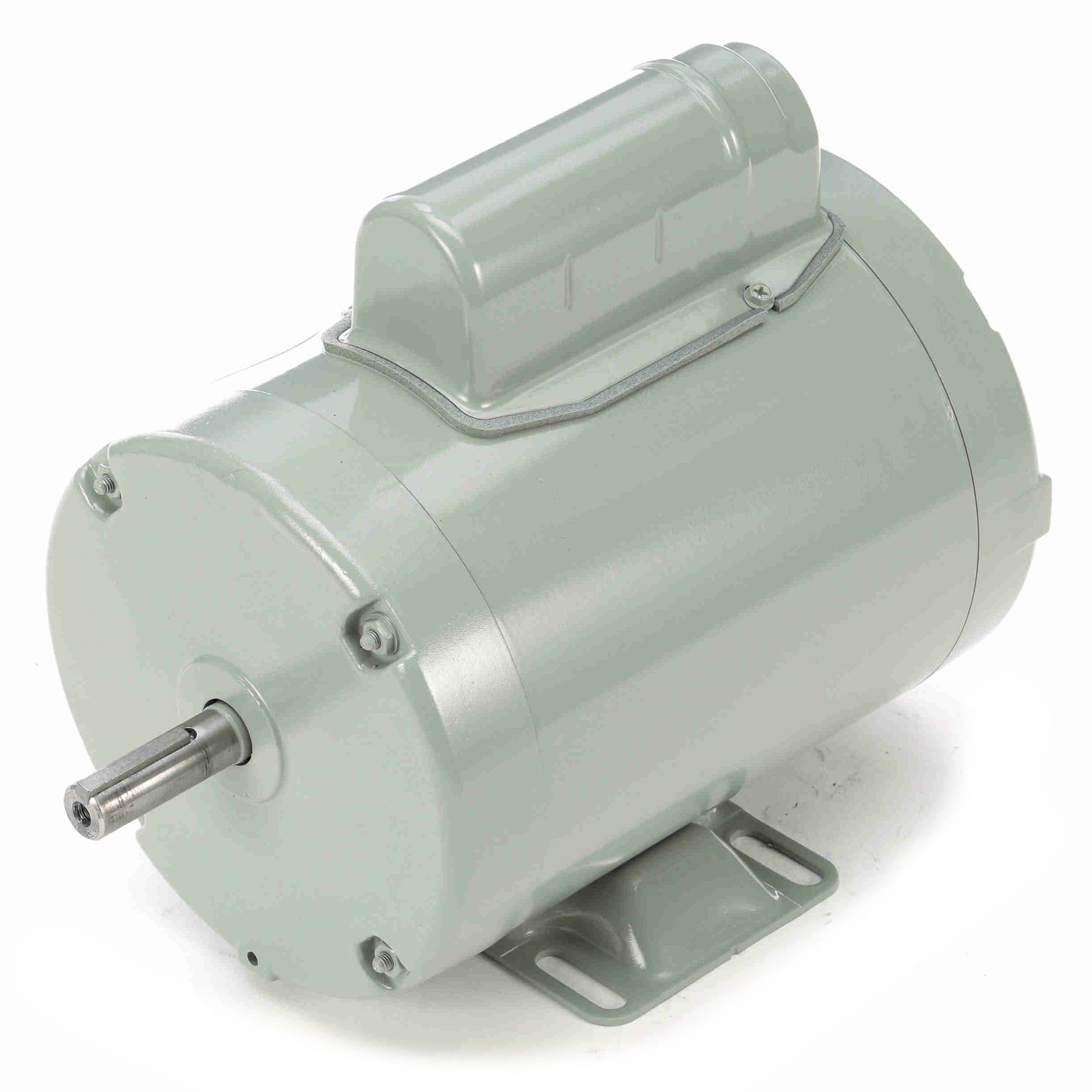

111949.00 1.5HP Leeson Ag-Duty Aeration Fan Motor-2

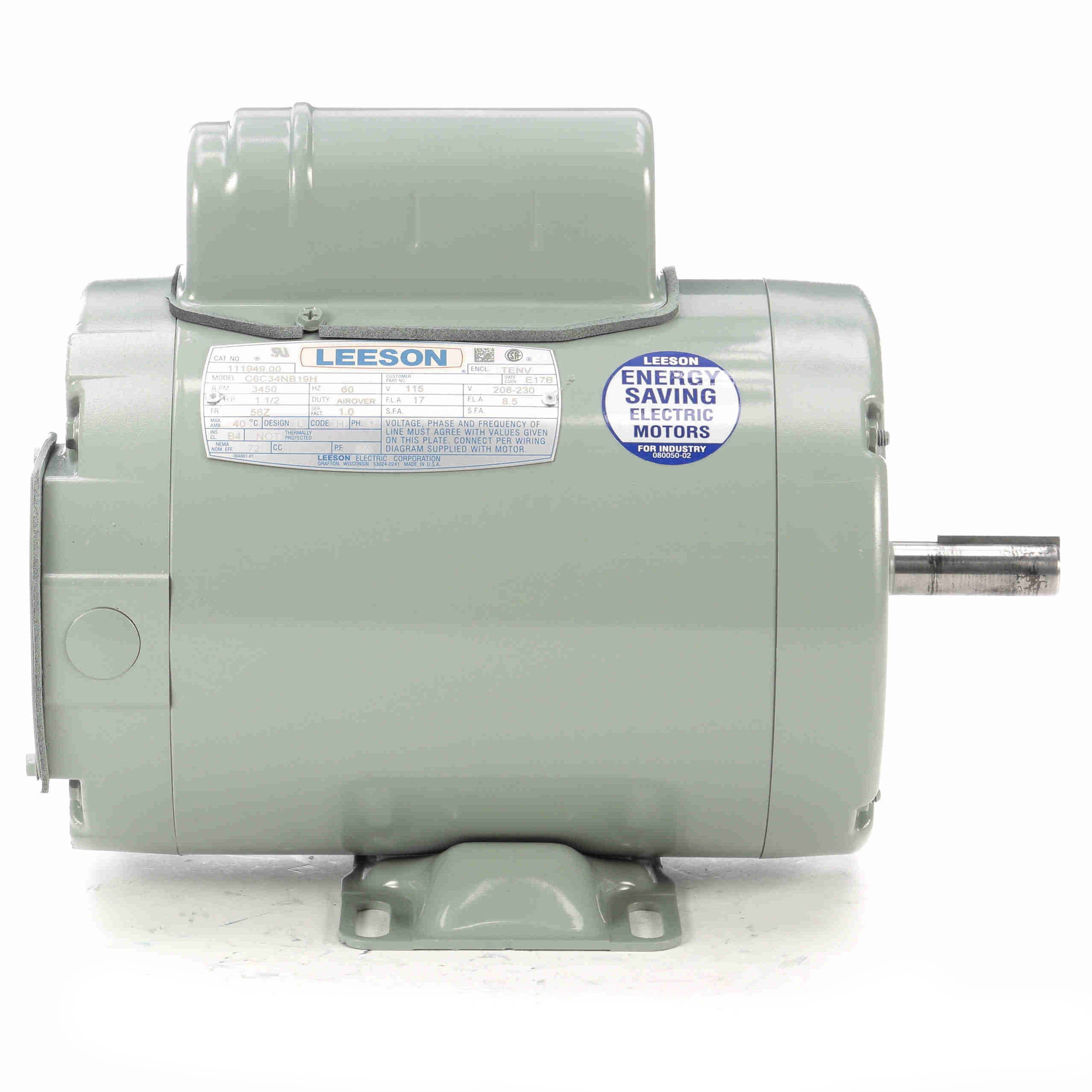

111949.00 1.5HP Leeson Ag-Duty Aeration Fan Motor-3

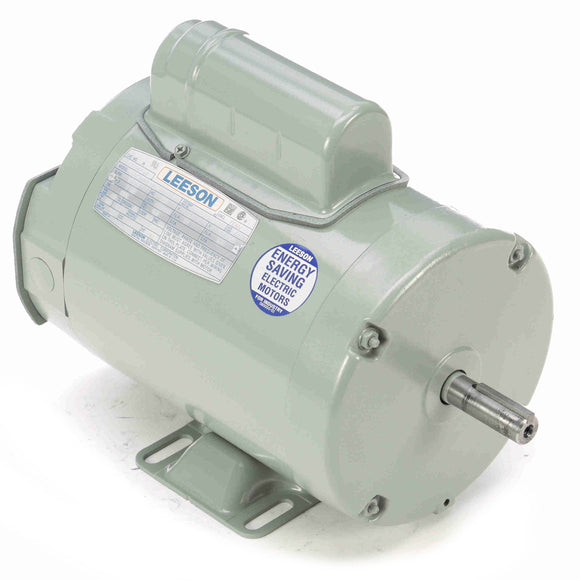

111949.00 1.5HP Leeson Ag-Duty Aeration Fan Motor-4

111949.00 1.5HP Leeson Ag-Duty Aeration Fan Motor

$390.07 USD $1,302.00 USD Save $911.93 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 111949.00 Barcode: 691720010372

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Aeration Fan Motors

Features

  • Belt driven fans or fan on shaft applications
  • Capacitor start designs
  • Epoxy paint to resist corrosion
  • Single-phase models have built-in terminal boards

General Specifications

UPC: 691720010372 Weight: 35.00 LB
Packaged Length: 14.44 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 17.0/9.0-8.5 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Efficiency: 72 % Power Factor: 80
Duty: Continuous Insulation Class: B
Design Code: L KVA Code: H
Frame: 56Z Enclosure: Totally Enclosed Air Over
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: 1.32 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 11.40 in
Frame Length: 6.50 in Shaft Diameter: 0.625 in
Shaft Extension: 1.87 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 5.30 236.0 2,800 1.50
Full Load 8.50 2.25 100.0 3,454 1.50
Locked-Rotor 46.00 5.50 244.0 0 1.50
Break-Down 0.00 5.60 249.0 3,000 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 4.67 5.07 5.89 7.05 8.45 9.52 10.33
Rated Output (KW) 0.26 0.54 0.85 1.19 1.56 1.81 2.00
Efficiency (%) 0.0 52.9 66.1 70.7 72.0 71.1 70.0
Power Factor (%) 24.1 46.0 62.7 73.5 80.0 82.8 84.2
Speed (RPM) 3,598 3,561 3,530 3,496 3,454 3,424 3,399
Temp. Rise @ FL 0.0 0.0 0.0 0.0 82.0 0.0 0.0
Torque (ft-lbs) 0.00 0.56 1.12 1.69 2.28 2.65 2.90
