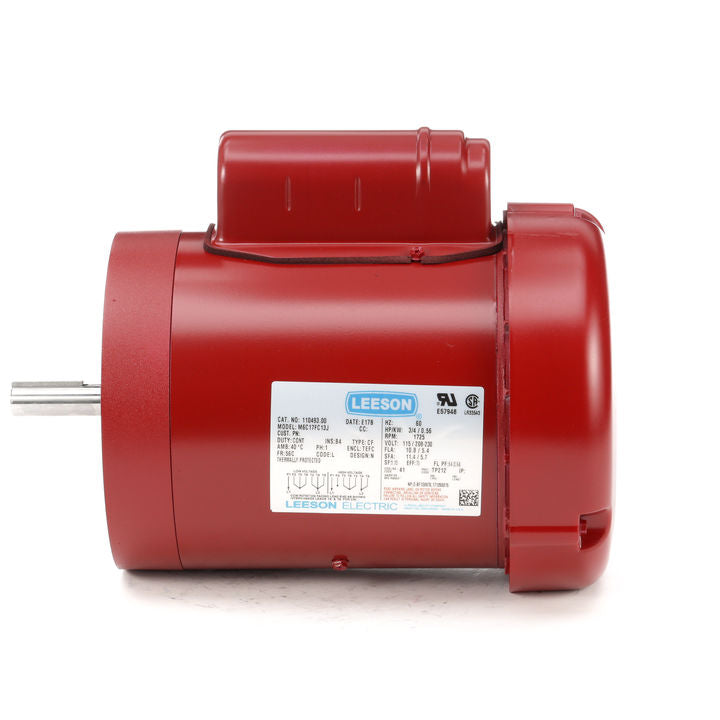

110493.00 Leeson 3/4HP Hi-Torque Farm/Agriculture Duty Electric Motor

$1,564.00

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: 110493.00 Barcode: 691720009000

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Product Features


Catalog No 110493.00 Model M6C17FC13J
Product type AC MOTOR Stock Stock
Description 3/4HP..1725RPM.56.TEFC./V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.ROUND.AG - FARM DUTY/GENERAL PURPOSE.M6C17FC13J
Information shown is for current motor's design
 Engineering Data
Volts 115 Volts 208-230 Volts
F.L. Amps 10.8 F.L. Amps 5.4 F.L. Amps
S. F Amps 11.4 S. F Amps 5.7 S. F Amps
RPM 1800 Hertz 60
HP 3/4 Duty CONTINUOUS TYPE CF
KW .56
Frame 56C Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code L
Insul Class B Protection MANUAL Therm.Prot. CED2715
Eff 100% 70 Eff 75% PF 64
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type Inverter Type Speed Range NONE
Motor Wt. 28 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting ROUND Rotation SELECTIVE CCW
Assembly 042504 Shaft Dia. 5/8 IN Ext. Diag. 005003.03
Cust Part No Outline 028865-600B Ext. Diag2
Packaging B Winding C634258
Carton Label INDIVIDUAL     GROUP: 3
Iris Paint RED (ENAMEL) Test Card 02
Form Factor   RMS Amps   Const Torque Speed Range
Torque   Peak
AB Code   Peak@DegC
Resistance
Connection
Rework Status   Rework TYPE
Hazardous Loc NONE  Brake Motors
Explosion Proof   Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
        Brake Coil OHMs @25 C
Performance
Torque UOM OZ-FT Inertia (WK²) .08 LB-FT^2
Torque 35.95(Full Load) 98.47(Break Down) 84.19(Pull Up) 114.48(Locked Rotor)
CURRENT (amps) 5.46(Full Load) 15.2(Break Down) 19.2(Pull Up) 30.1(Locked Rotor)
Efficiency (%) 0(Full Load) 67.8(75% Load) 61.3(50% Load) 46(25% Load)
PowerFactor 64(Full Load) 55.3(75% Load) 44.6(50% Load) 31.6(25% Load)
Speed Torque Curve @ 60 Hz, 230 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
FL 5.46 - 35.95 0.0 1753 0.804 64.0 0.75
BD 15.2 - 98.47 0.0 1536 2.8 - 0.75
PU 19.2 - 84.19 0.0 1314 3.2 - 0.75
LR 30.1 - 114.48 0.0 0.0 6.0 - 0.75
SOURCE: CALCULATED GROUP: 3
Load Curve Data @60 Hz, 230 Volts, 3/4 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 4.13 0.172 1798 0.0 0.0 18.1 0.0 -
0.25 4.2 0.306 1786 8.85 46.0 31.6 0.0 -
0.5 4.45 0.456 1777 17.72 61.3 44.6 0.0 -
0.75 4.86 0.519 1766 26.79 67.8 55.3 0.0 -
1.0 5.42 0.792 1754 35.94 70.7 63.6 78.0 40.0
1.25 6.11 0.978 1740 45.3 71.5 69.6 90.0 45.0
1.5 6.97 1.191 1723 55.09 70.8 74.3 0.0 -
1.75 7.97 1.421 1703 64.75 88.9 77.4 0.0 -
SOURCE: CALCULATED GROUP: 3
