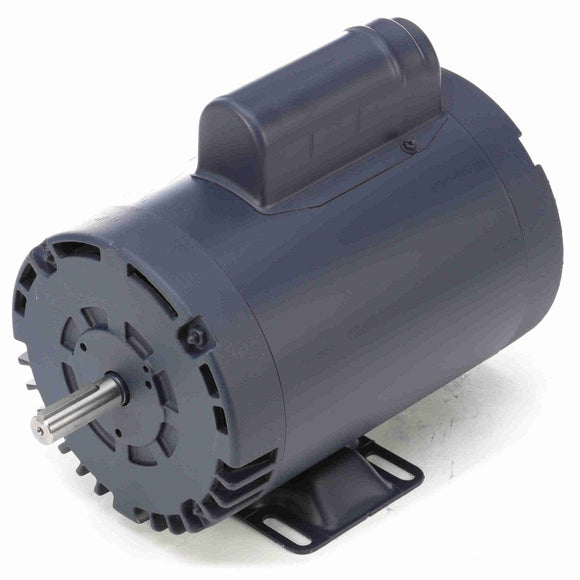

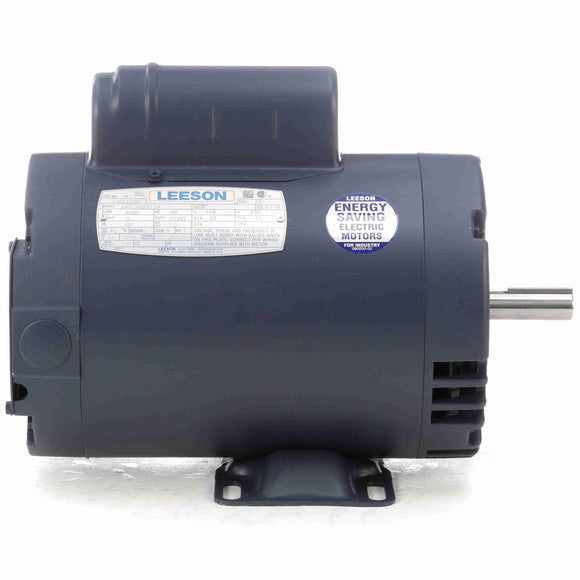

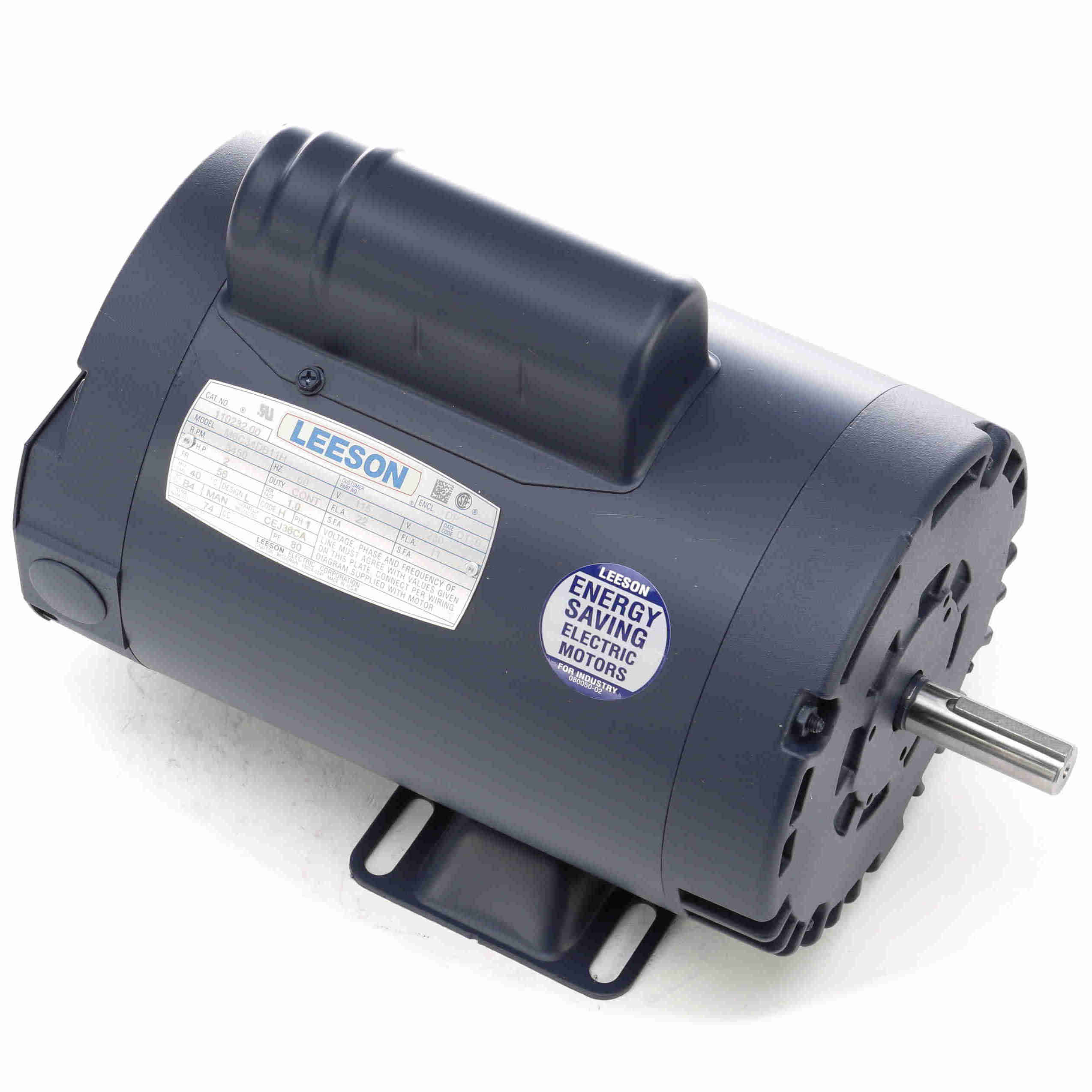

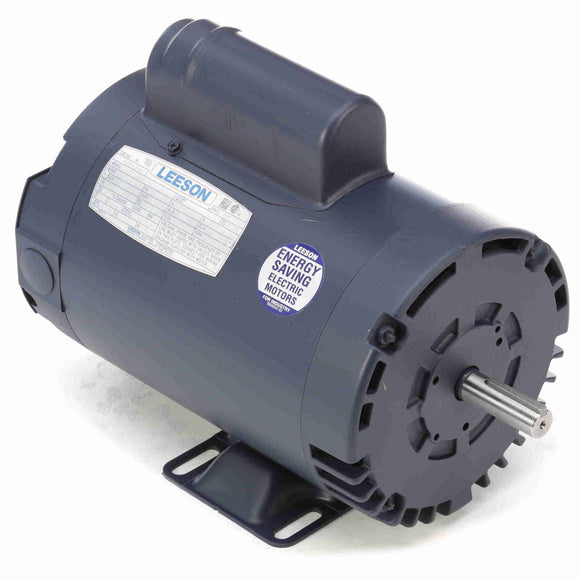

Features
- Double shielded ball bearings
- Designed for belted loads
- High starting and breakdown torque
- Dual rotation
General Specifications
| Model : | M6C34DB11H | Catalog No : | 110232.00 |
| Part Description : | 2HP..3450RPM.56.DP.115/230V.1PH.60HZ.CONT.MANUAL.40C.SPECSF.RIGID.COMPRESSOR DUTY.M6C34DB11H | Category : | Air Compressor |
| Stock : | No |

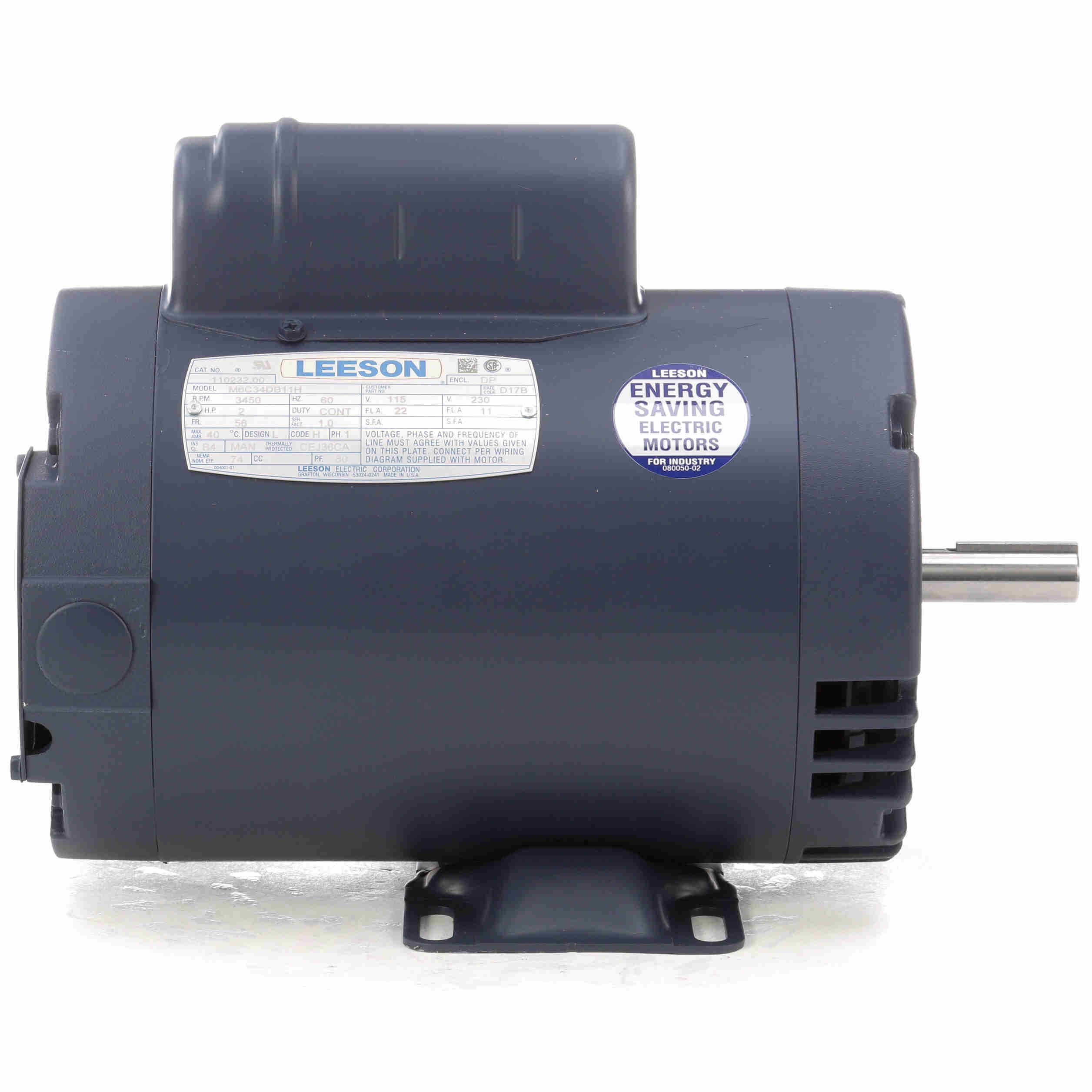

Nameplate Specifications
| Output HP : | 2 Hp | Output KW : | 1.49 kW |
| Frequency : | 60 Hz | Voltage : | 115/230 V |
| Current : | 22/11 A | Speed : | 3450 rpm |
| Service Factor : | 1 | Phase : | 1 |
| Efficiency : | 74 % | Duty : | CONTINUOUS |
| Insulation Class : | B | Design Code : | L |
| KVA Code : | H | Frame : | 56 |
| Enclosure : | DP | Overload Protector : | MANUAL |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | N |
| IP Code : | 22 |
Technical Specifications
| Electrical Type : | CAP START IND RUN | Starting Method : | ACROSS THE LINE |
| Poles : | 2 | Rotation : | SELECTIVE CW |
| Mounting : | RIGID | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | ROLLED STEEL | Shaft Type : | STANDARD 56 |
| Overall Length : | 11.88 in | Frame Length : | 7 in |
| Shaft Diameter : | 0.63 in | Shaft Extension : | 1.88 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 691720008195 |
| Weight : | 34.00 LB |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Break-Down | 0.00 | 0.0 | 6.90 | 307.0 | 3,000 | 0.00 | 0.0 | 2.00 |
| Full Load | 10.00 | 100.0 | 2.25 | 100.0 | 3,480 | 0.00 | 0.0 | 2.00 |
| Locked-Rotor | 57.00 | 570.0 | 6.40 | 284.0 | 0 | 0.00 | 0.0 | 2.00 |
| Pull-Up | 0.00 | 0.0 | 6.20 | 276.0 | 2,800 | 0.00 | 0.0 | 2.00 |
Load Characteristics
- % of Rated Load
- Current (Amps)
- Rated Output (KW)
- Efficiency (%)
- Power Factor (%)
- Speed (RPM)
- Temp. rise @ FL
- Torque (ft-lb)
- 0 %
- 6.13
- 0.262
- 0.0
- 18.6
- 3,598
- 0.0
- 0.00
- 25 %
- 6.55
- 0.657
- 57.9
- 43.6
- 3,568
- 0.0
- 0.75
- 50 %
- 7.59
- 1.084
- 69.6
- 62.1
- 3,542
- 0.0
- 1.50
- 75 %
- 9.22
- 1.569
- 71.5
- 74.0
- 3,512
- 0.0
- 2.25
- 100 %
- 10.90
- 2.005
- 74.0
- 80.0
- 3,480
- 50.0
- 3.00
- 125 %
- 12.94
- 2.492
- 73.4
- 83.7
- 3,436
- 0.0
- 3.75
- 150 %
- 15.52
- 3.068
- 70.5
- 85.9
- 3,384
- 0.0
- 4.50
